72-14P85-3535 Powerhouse® Timing Pulley, 72 Teeth, 14P Pitch

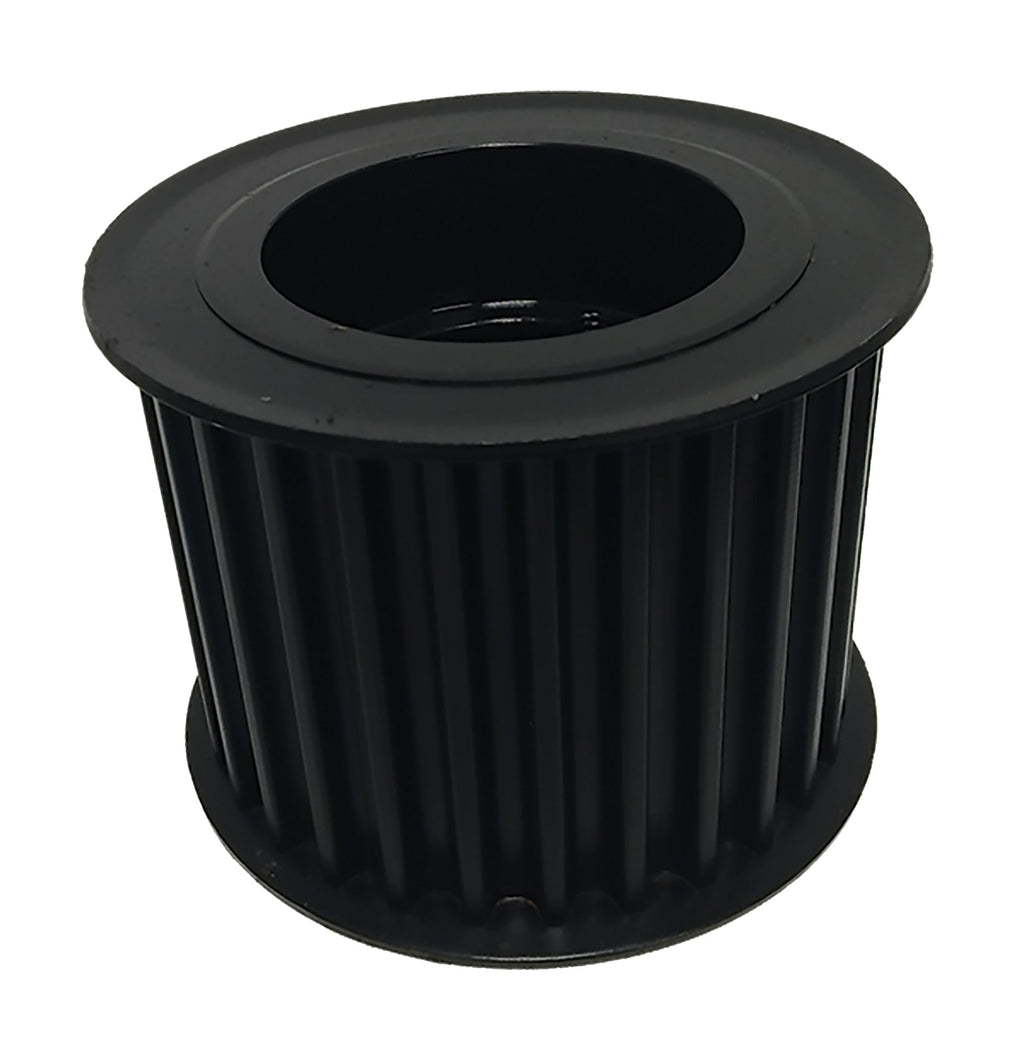

The 72-14P85-3535 is a 72-tooth 14 mm Powerhouse® curvilinear timing pulley. It mounts with an industry-standard bushing, sold separately, machined from cast iron with a black oxide finish, built for 85mm wide belts. Machined from solid stock, never sintered or powdered metal. The Powerhouse® modified curvilinear profile carries roughly twice the load of a standard curvilinear pulley of the same size.
Specifications

Dimension key for this construction type. Values for this part number are in the table below.
| Specification | Value |
|---|---|
| Part Number | 72-14P85-3535 |
| Teeth | 72 |
| Pitch | 14 mm Powerhouse® curvilinear |
| For Belt Width | 85mm |
| Pitch Diameter | 12.6321 in |
| Outside Diameter | 12.5221 in |
| Flange Diameter | 13.187 in |
| Bore | Accepts 3535 bushing (not included) |
| Face Width | 4 in |
| Overall Length | 4 in |
| Construction | Taper Lock Hub |
| Flange Material | Steel |
| Material | Cast Iron (no sintered or powdered metal) |
| Finish | Black Oxide |
| Weight | 98.14 lb |
| Country of Origin | China |
Applications
- Higher load synchronous drives in compact spaces
- Industrial automation and conveyor drives
- Packaging and material handling equipment
Belt Compatibility
The 72-14P85-3535 runs 14 mm Powerhouse® curvilinear belts in 85mm width. The pitch is standardized, so belt and pulley brands can be mixed.
Cross Reference
The 72-14P85-3535 interchanges with these equivalent part numbers, per published manufacturer interchange data:
| Manufacturer | Equivalent Part Number |
|---|---|
| Dodge® | P72-14M-85-3535 |
| Martin | P7214M85-3535 |
| Gates® | P72-14MGT-85 |
| TB Woods® | P7214M85TL |
| Regal Rexnord (Browning®) | B7214M85TL |
| Ametric | 14M72TL85.3535 |
| Grainger | 809U03 |
| Powerdrive | 72-14P85-3535 |
| Continental (ContiTech) | P72-14M-85-3535 |
Always verify dimensions and bore size before substituting part numbers across manufacturers.
Buying in bulk? Save on volume.
Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.
Frequently Asked Questions
What belts fit the 72-14P85-3535 pulley?
14 mm Powerhouse® curvilinear timing belts in 85mm width from any manufacturer. The pitch is standardized, so belt and pulley brands can be mixed.
Does the 72-14P85-3535 replace the Dodge P72-14M-85-3535?
Yes. Published interchange data crosses the 72-14P85-3535 directly to the Dodge P72-14M-85-3535, as well as Martin P7214M85-3535, Gates P72-14MGT-85, TB Woods P7214M85TL. Verify dimensions and bore before ordering.
