84HQ200 Timing Pulley, 84 Teeth, H Pitch


Price:
$ 313.39

Description

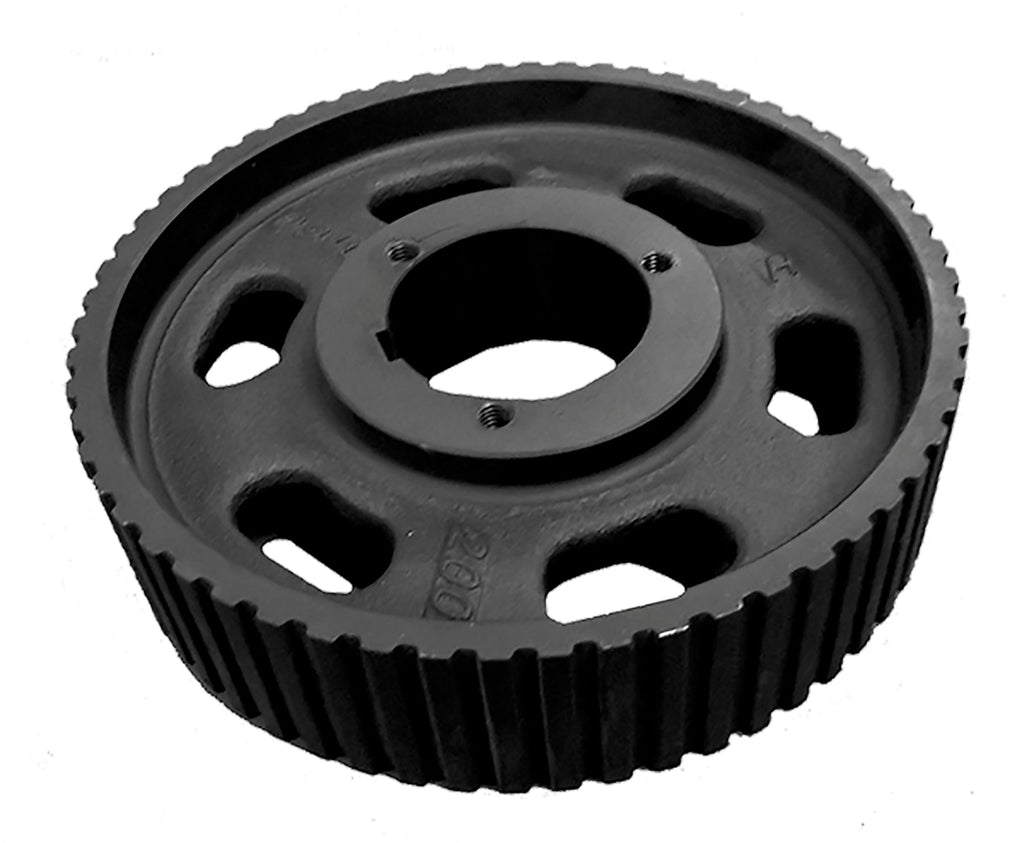

84HQ200 Timing Pulley, 84 Teeth, H Pitch

The 84HQ200 is a 84-tooth H (0.500 in trapezoidal) timing pulley. It mounts with an industry-standard bushing, sold separately, machined from cast iron, built for 2 in wide belts. Machined from solid stock, never sintered or powdered metal.

Specifications

Type A3 pulley construction dimension diagram

Dimension key for this construction type. Values for this part number are in the table below.

Specification Value
Part Number 84HQ200
Teeth 84
Pitch H (0.500 in trapezoidal)
For Belt Width 2 in
Pitch Diameter 13.369 in
Outside Diameter 13.315 in
Bore Accepts Q1 bushing (not included)
Face Width 2.5 in
Overall Length 3.063 in
Construction Split Taper Hub
Material Cast Iron (no sintered or powdered metal)
Weight 23.85 lb
Country of Origin China

Applications

  • Instrumentation, office equipment, and precision positioning drives
  • 3D printers and desktop CNC equipment
  • Robotics, medical devices, and packaging machinery
  • Weight-sensitive drives (webbed, lightened construction)

Belt Compatibility

The 84HQ200 runs H (0.500 in trapezoidal) belts in 2 in width. The pitch is standardized, so belt and pulley brands can be mixed.

Cross Reference

The 84HQ200 interchanges with these equivalent part numbers, per published manufacturer interchange data:

Manufacturer Equivalent Part Number
Regal Rexnord (Browning®) 84HQ200
Powerdrive 84HQ200

Always verify dimensions and bore size before substituting part numbers across manufacturers.

Buying in bulk? Save on volume.

Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.

Frequently Asked Questions

What belts fit the 84HQ200 pulley?

H (0.500 in trapezoidal) timing belts in 2 in width from any manufacturer. The pitch is standardized, so belt and pulley brands can be mixed.

Does the 84HQ200 replace the Regal Rexnord 84HQ200?

Yes. Published interchange data crosses the 84HQ200 directly to the Regal Rexnord 84HQ200, as well as Powerdrive 84HQ200. Verify dimensions and bore before ordering.

Does the 84HQ200 ship from Houston?

Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.

Need a quote on 84HQ200?

Houston warehouse, same-day shipping on stock items.

Call (888) 203-2358

All third-party part numbers and trademarks referenced are the property of their respective owners. References are for compatibility identification only and do not imply affiliation or endorsement.
