90-14P85-3535 Powerhouse® Timing Pulley, 9 Teeth, 14P Pitch


Price:
$ 706.11

Description

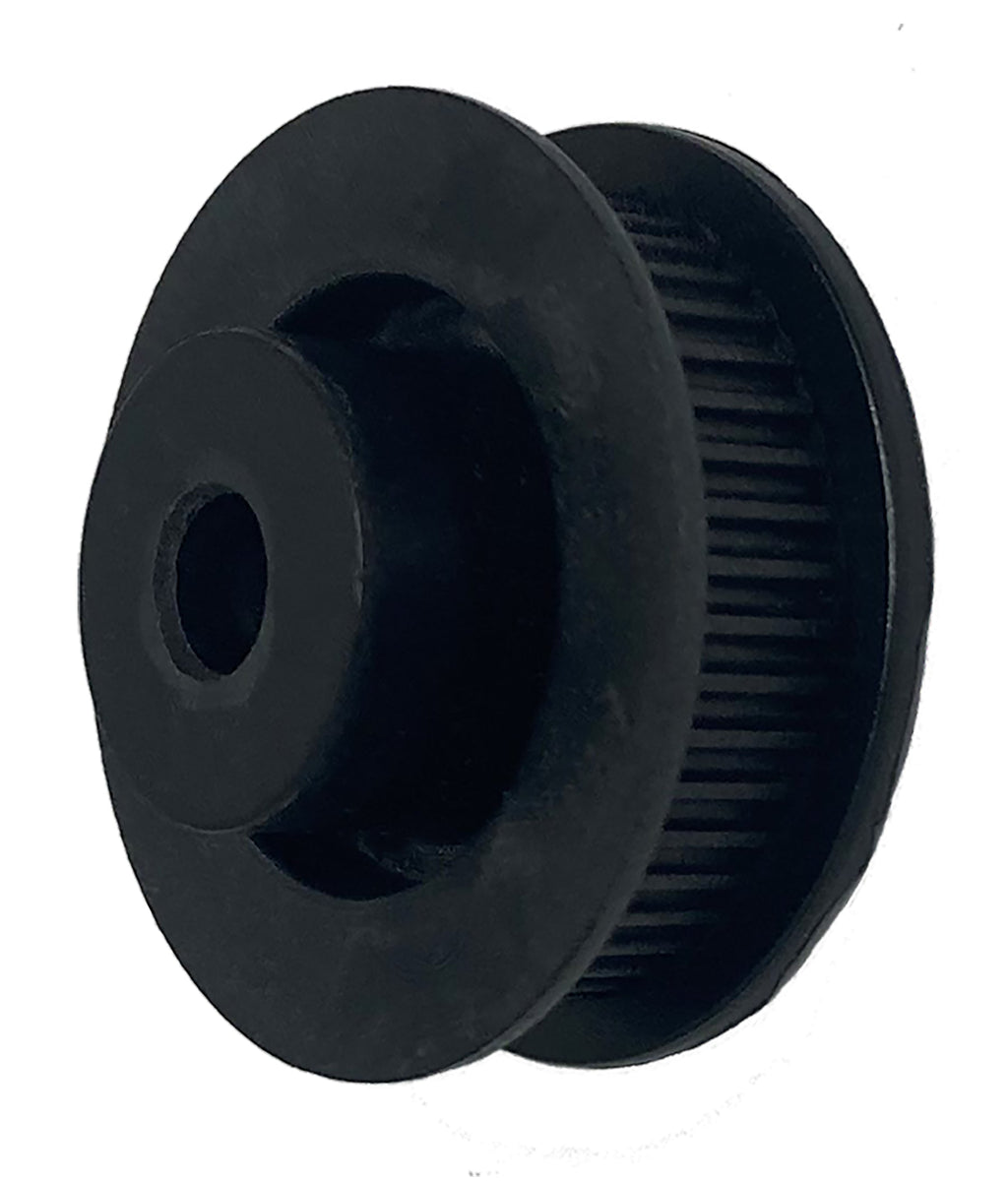

Representative image shown. Actual product appearance varies by size, bore, and configuration. Refer to the specifications table for exact dimensions of this part number.

90-14P85-3535 Powerhouse® Timing Pulley, 9 Teeth, 14P Pitch

The 90-14P85-3535 is a 9-tooth 14 mm Powerhouse® curvilinear timing pulley. It mounts with an industry-standard bushing, sold separately, machined from cast iron with a black oxide finish, built for 85mm wide belts. Machined from solid stock, never sintered or powdered metal. The Powerhouse® modified curvilinear profile carries roughly twice the load of a standard curvilinear pulley of the same size.

Specifications

Type D2 pulley construction dimension diagram

Dimension key for this construction type. Values for this part number are in the table below.

Specification Value
Part Number 90-14P85-3535
Teeth 9
Pitch 14 mm Powerhouse® curvilinear
For Belt Width 85mm
Pitch Diameter 15.7902 in
Outside Diameter 15.6802 in
Bore Accepts 3535 bushing (not included)
Face Width 4 in
Overall Length 4 in
Construction Taper Lock Hub
Material Cast Iron (no sintered or powdered metal)
Finish Black Oxide
Weight 82.8 lb
Country of Origin China

Applications

  • Higher load synchronous drives in compact spaces
  • Industrial automation and conveyor drives
  • Packaging and material handling equipment

Belt Compatibility

The 90-14P85-3535 runs 14 mm Powerhouse® curvilinear belts in 85mm width. The pitch is standardized, so belt and pulley brands can be mixed.

Cross Reference

The 90-14P85-3535 interchanges with these equivalent part numbers, per published manufacturer interchange data:

Manufacturer Equivalent Part Number
Dodge® P90-14M-85-3535
Martin P9014M85-3535
Gates® P90-14MGT-85
TB Woods® P9014M85TL
Regal Rexnord (Browning®) B9014M85TL
Ametric 14M90TL85.3535
Grainger 809U23
Powerdrive 90-14P85-3535
Continental (ContiTech) P90-14M-85-3535

Always verify dimensions and bore size before substituting part numbers across manufacturers.

Buying in bulk? Save on volume.

Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.

Frequently Asked Questions

What belts fit the 90-14P85-3535 pulley?

14 mm Powerhouse® curvilinear timing belts in 85mm width from any manufacturer. The pitch is standardized, so belt and pulley brands can be mixed.

Does the 90-14P85-3535 replace the Dodge P90-14M-85-3535?

Yes. Published interchange data crosses the 90-14P85-3535 directly to the Dodge P90-14M-85-3535, as well as Martin P9014M85-3535, Gates P90-14MGT-85, TB Woods P9014M85TL. Verify dimensions and bore before ordering.

Does the 90-14P85-3535 ship from Houston?

Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.

Need a quote on 90-14P85-3535?

Houston warehouse, same-day shipping on stock items.

Call (888) 203-2358

Powerhouse® is a registered trademark of its owner. HTD® is a registered trademark of Gates Corporation. All third-party part numbers and trademarks referenced are the property of their respective owners. References are for compatibility identification only and do not imply affiliation or endorsement.
