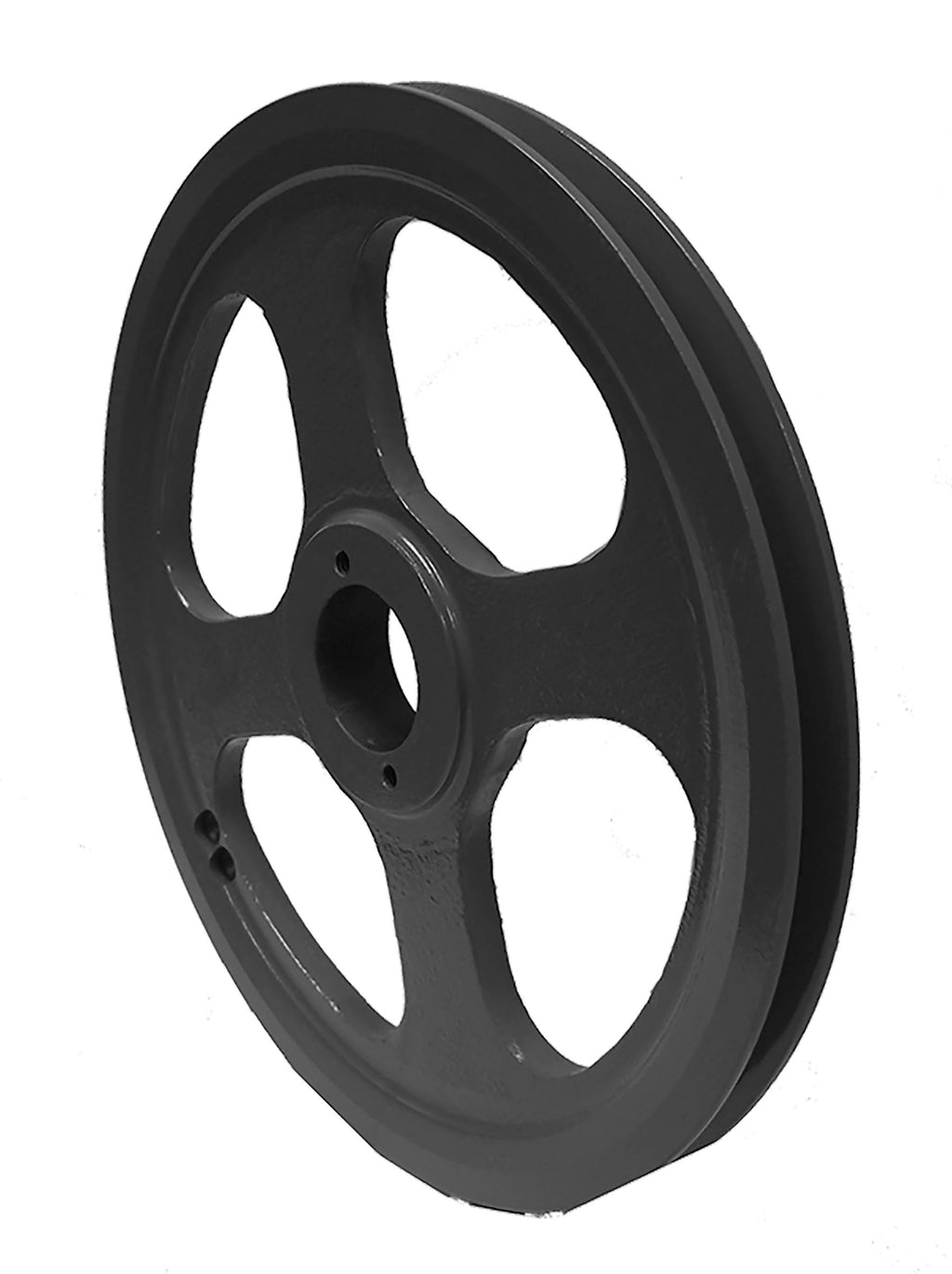

AK134H Light Duty V-Belt Sheave, 1 Groove, 13.25 in OD, H Bushing


Price:
$ 70.64

Description

AK134H Light Duty V-Belt Sheave, 1 Groove, 13.25 in OD, H Bushing

The AK134H is a 1-groove light duty V-belt sheave with a 13.25 in outside diameter, fully machined from cast iron and statically balanced. It mounts with an industry-standard H QD® style bushing, sold separately, sized to your shaft. It runs 3L, 4L, and A section V-belts.

Specifications

Specification Value
Part Number AK134H
Belt Section AK
Grooves 1
Outside Diameter 13.25 in
Face Width 0.75 in
Bushing H series, QD® style (not included)
Material Cast Iron, fully machined, statically balanced
Weight 7.4 lb
Country of Origin China

Applications

  • Fractional horsepower motor drives
  • Furnace blowers, attic fans, and air handlers
  • Power tools, lawn equipment, and light machinery
  • Direct replacement for worn FHP sheaves

Cross Reference

The AK134H interchanges with these equivalent part numbers, per published manufacturer interchange data:

Manufacturer Equivalent Part Number
Dodge® AK134QT
Martin AK-134-H
Gates® AK134QT
TB Woods® AK134
Regal Rexnord (Browning®) AK134H
Carlisle AK-134-H
Masterdrive AK134H
Maurey AK134H
Jason Industrial AK134H
Optibelt AK134H

Always verify dimensions and bore size before substituting part numbers across manufacturers.

Buying in bulk? Save on volume.

Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.

Frequently Asked Questions

What belts run on the AK134H?

3L, 4L, and A section V-belts. These sections are standardized, so any manufacturer's belts of the correct section and length will run in the grooves.

Does the AK134H replace the Dodge AK134QT sheave?

Yes. Published interchange data crosses the AK134H directly to the Dodge AK134QT, as well as Martin AK-134-H, Gates AK134QT, TB Woods AK134. Verify groove count, diameter, and bore or bushing before ordering.

What bushing does the AK134H use?

A H series QD style bushing, sold separately. H is an industry-standard bushing size, so any manufacturer's standard H bushing fits. Order the bushing bore that matches your shaft diameter.

Does the AK134H ship from Houston?

Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.

Need a quote on AK134H?

Houston warehouse, same-day shipping on stock items.

Call (888) 203-2358

QD® is a registered trademark of TB Woods/Regal Rexnord. All third-party part numbers and trademarks referenced, including Dodge®, Gates®, Martin, TB Woods®, Browning®, and others shown in the cross reference table, are the property of their respective owners. References are for compatibility identification only and do not imply affiliation or endorsement.
