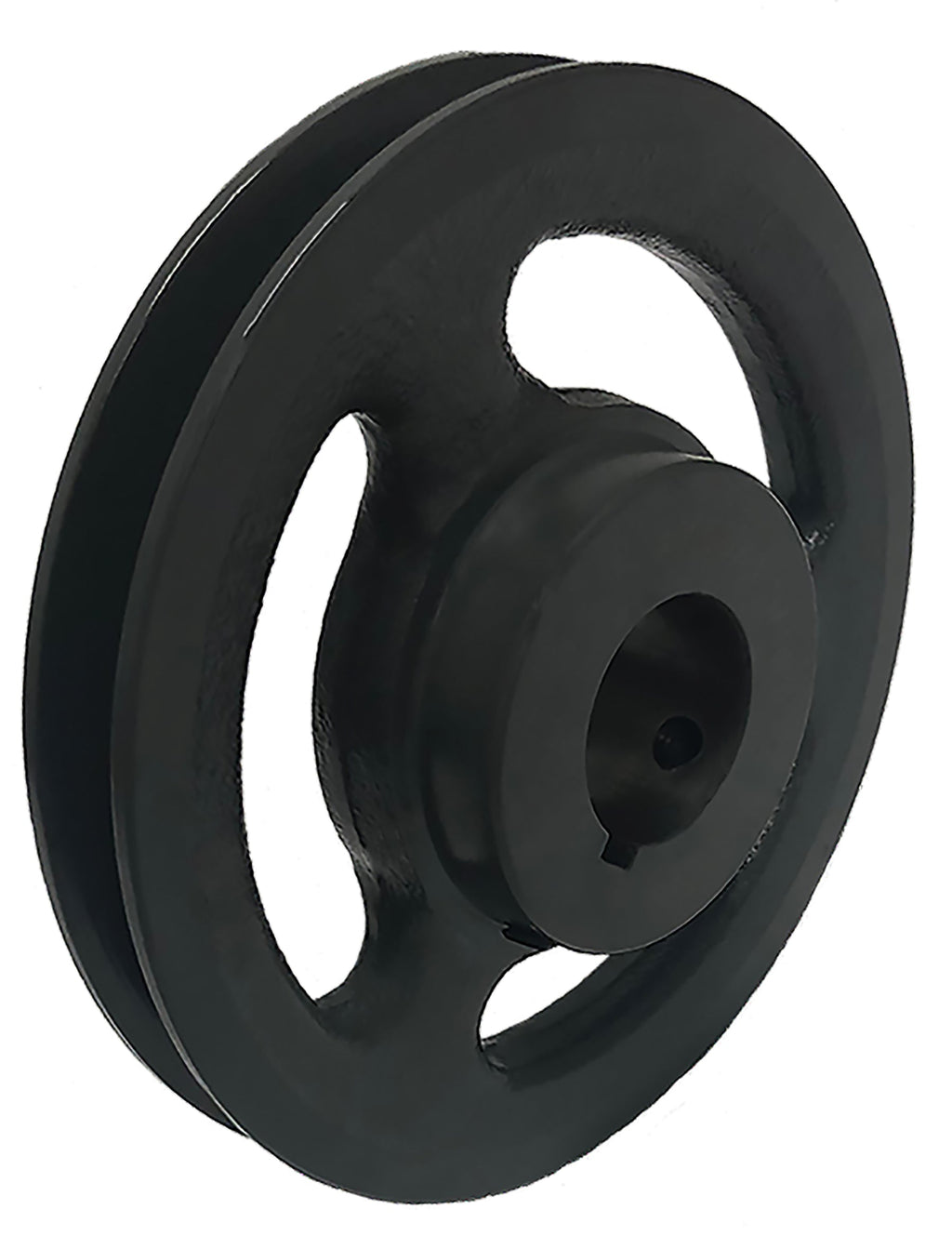

AK154x3/4 Light Duty V-Belt Sheave, 1 Groove, 15.25 in OD, 3/4 in Bore


Price:
$ 104.42

Description

AK154x3/4 Light Duty V-Belt Sheave, 1 Groove, 15.25 in OD, 3/4 in Bore

The AK154x3/4 is a 1-groove light duty V-belt sheave with a 15.25 in outside diameter, fully machined from cast iron and statically balanced, supplied with a 3/4 in finished bore. It runs 3L, 4L, and A section V-belts.

Specifications

Specification Value
Part Number AK154x3/4
Belt Section AK
Grooves 1
Outside Diameter 15.25 in
Face Width 0.75 in
Bore 3/4 in finished bore
Keyway / Set Screw 1 x 5/16-18 UNC
Material Cast Iron, fully machined, statically balanced
Weight 12.6 lb
Country of Origin China

Applications

  • Fractional horsepower motor drives
  • Furnace blowers, attic fans, and air handlers
  • Power tools, lawn equipment, and light machinery
  • Direct replacement for worn FHP sheaves

Cross Reference

The AK154x3/4 interchanges with these equivalent part numbers, per published manufacturer interchange data:

Manufacturer Equivalent Part Number
Dodge® AK154 X 3/4
Martin AK154 3/4
Gates® AK154.3/4
TB Woods® AK15434
Regal Rexnord (Browning®) AK154x3/4
Carlisle AK-154-3/4
Masterdrive AK154-3/4
Maurey AK154 X 3/4
Jason Industrial AK154-3/4
Optibelt AK154-3/4

Always verify dimensions and bore size before substituting part numbers across manufacturers.

Buying in bulk? Save on volume.

Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.

Frequently Asked Questions

What belts run on the AK154x3/4?

3L, 4L, and A section V-belts. These sections are standardized, so any manufacturer's belts of the correct section and length will run in the grooves.

Does the AK154x3/4 replace the Dodge AK154 X 3/4 sheave?

Yes. Published interchange data crosses the AK154x3/4 directly to the Dodge AK154 X 3/4, as well as Martin AK154 3/4, Gates AK154.3/4, TB Woods AK15434. Verify groove count, diameter, and bore or bushing before ordering.

Does the AK154x3/4 ship from Houston?

Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.

Need a quote on AK154x3/4?

Houston warehouse, same-day shipping on stock items.

Call (888) 203-2358

QD® is a registered trademark of TB Woods/Regal Rexnord. All third-party part numbers and trademarks referenced, including Dodge®, Gates®, Martin, TB Woods®, Browning®, and others shown in the cross reference table, are the property of their respective owners. References are for compatibility identification only and do not imply affiliation or endorsement.
