Description

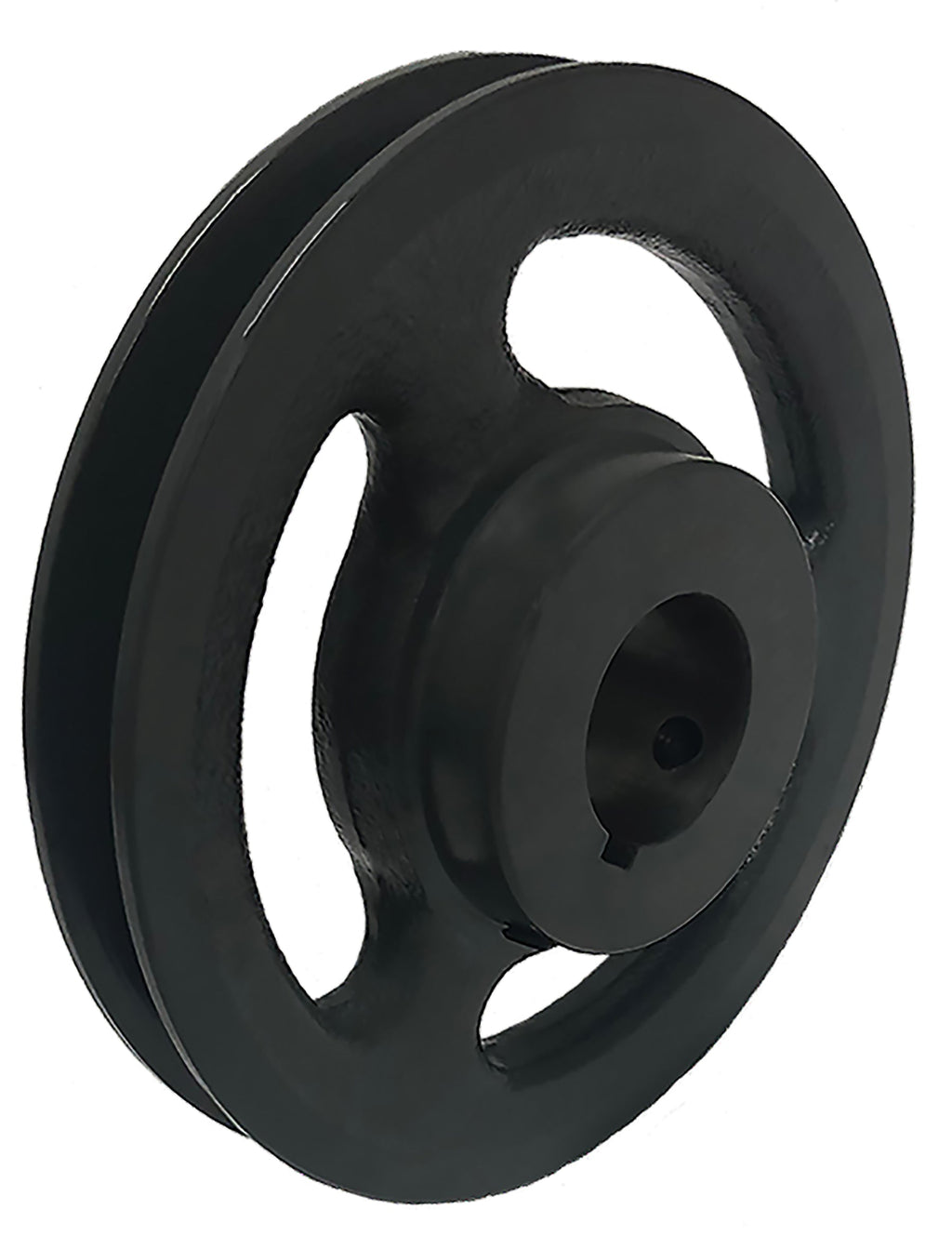

AK17x3/4 Light Duty V-Belt Sheave, 1 Groove, 1.7 in OD, 3/4 in Bore
The AK17x3/4 is a 1-groove light duty V-belt sheave with a 1.7 in outside diameter, fully machined from cast iron and statically balanced, supplied with a 3/4 in finished bore. It runs 3L, 4L, and A section V-belts.
$50 minimum order on drive components. Mix and match any pulleys, bushings, sheaves, sprockets, and accessories in your cart to reach the $50 minimum. Questions? Call (888) 203-2358.
Specifications
| Specification | Value |
|---|---|
| Part Number | AK17x3/4 |
| Belt Section | AK |
| Grooves | 1 |
| Outside Diameter | 1.7 in |
| Bore | 3/4 in finished bore |
| Set Screws | 1 x 5/16-18 |
| Material | Cast Iron, fully machined, statically balanced |
| Weight | 0.3 lb |
| Country of Origin | China |
Applications
- Fractional horsepower motor drives
- Furnace blowers, attic fans, and air handlers
- Power tools, lawn equipment, and light machinery
- Direct replacement for worn FHP sheaves
Cross Reference
The AK17x3/4 interchanges with these equivalent part numbers, per published manufacturer interchange data:
| Manufacturer | Equivalent Part Number |
|---|---|
| Dodge® | AK17 X 3/4 |
| Martin | AK17 3/4 |
| Gates® | AK17.3/4 |
| TB Woods® | AK1734 |
| Carlisle | AK-17-3/4 |
| Masterdrive | AK17-3/4 |
| Maurey | AK17 X 3/4 |
| Jason Industrial | AK17-3/4 |
| Optibelt | AK17-3/4 |
| McMaster-Carr | 6245K14 |
Always verify dimensions and bore size before substituting part numbers across manufacturers.
Buying in bulk? Save on volume.
Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.
Frequently Asked Questions
What belts run on the AK17x3/4?
3L, 4L, and A section V-belts. These sections are standardized, so any manufacturer's belts of the correct section and length will run in the grooves.
Does the AK17x3/4 replace the Dodge AK17 X 3/4 sheave?
Yes. Published interchange data crosses the AK17x3/4 directly to the Dodge AK17 X 3/4, as well as Martin AK17 3/4, Gates AK17.3/4, TB Woods AK1734. Verify groove count, diameter, and bore or bushing before ordering.
Does the AK17x3/4 ship from Houston?
Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.
