AK56x7/8 Light Duty V-Belt Sheave, 1 Groove, 5.45 in OD, 7/8 in Bore


Price:
$ 29.69

Description

AK56x7/8 Light Duty V-Belt Sheave, 1 Groove, 5.45 in OD, 7/8 in Bore

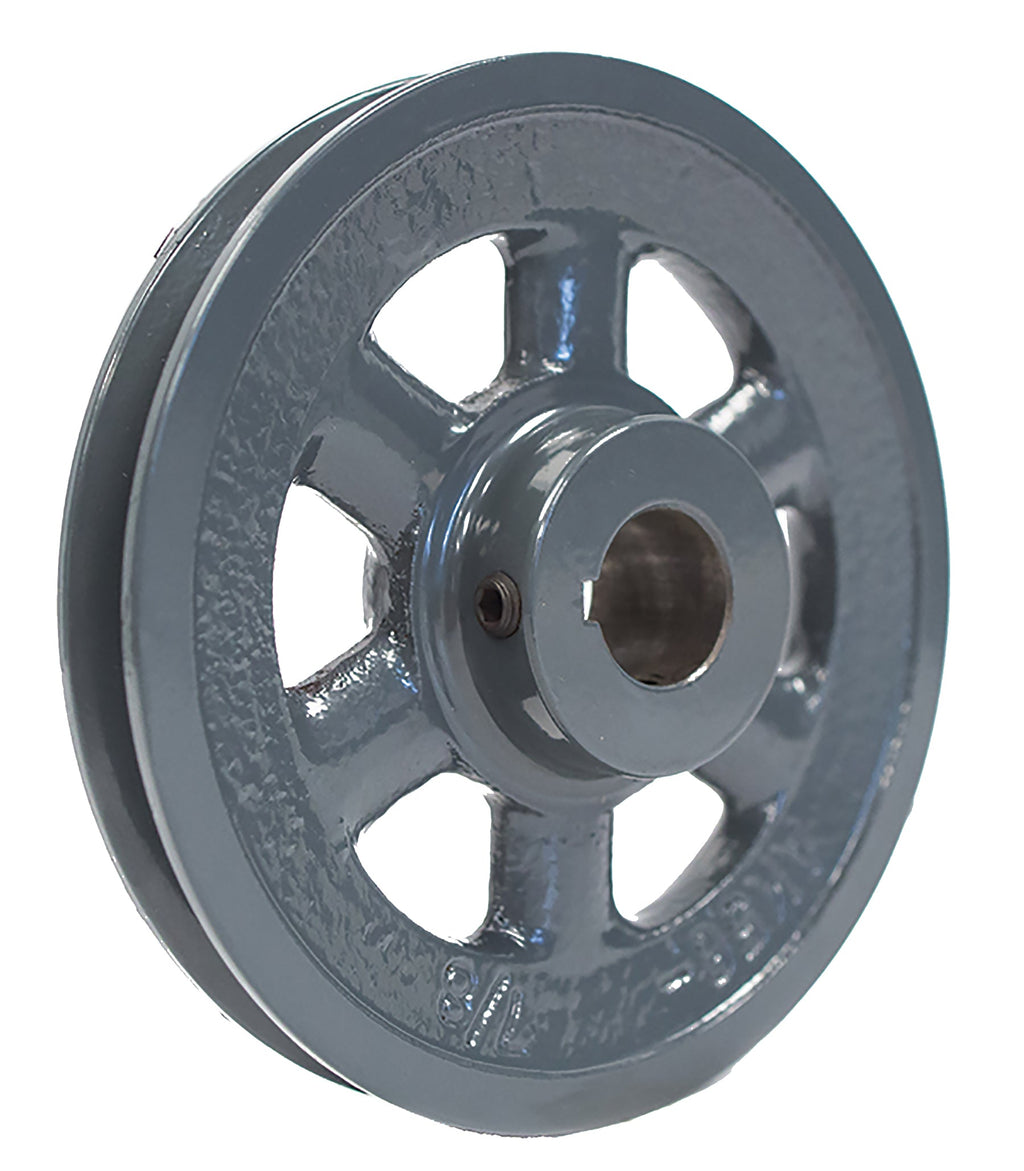

The AK56x7/8 is a 1-groove light duty V-belt sheave with a 5.45 in outside diameter, fully machined from cast iron and statically balanced, supplied with a 7/8 in finished bore. It runs 3L, 4L, and A section V-belts.

$50 minimum order on drive components. Mix and match any pulleys, bushings, sheaves, sprockets, and accessories in your cart to reach the $50 minimum. Questions? Call (888) 203-2358.

Specifications

Specification Value
Part Number AK56x7/8
Belt Section AK
Grooves 1
Outside Diameter 5.45 in
Face Width 0.75 in
Bore 7/8 in finished bore
Keyway / Set Screw 1 x 5/16-18 UNC
Material Cast Iron, fully machined, statically balanced
Weight 2.45 lb
Country of Origin China

Applications

  • Fractional horsepower motor drives
  • Furnace blowers, attic fans, and air handlers
  • Power tools, lawn equipment, and light machinery
  • Direct replacement for worn FHP sheaves

Cross Reference

The AK56x7/8 interchanges with these equivalent part numbers, per published manufacturer interchange data:

Manufacturer Equivalent Part Number
Dodge® AK56 X 7/8
Martin AK56 7/8
Gates® AK56.7/8
TB Woods® AK5678
Regal Rexnord (Browning®) AK56x7/8
Carlisle AK-56-7/8
Masterdrive AK56-7/8
Maurey AK56 X 7/8
Jason Industrial AK56-7/8
Optibelt AK56-7/8

Always verify dimensions and bore size before substituting part numbers across manufacturers.

Buying in bulk? Save on volume.

Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.

Frequently Asked Questions

What belts run on the AK56x7/8?

3L, 4L, and A section V-belts. These sections are standardized, so any manufacturer's belts of the correct section and length will run in the grooves.

Does the AK56x7/8 replace the Dodge AK56 X 7/8 sheave?

Yes. Published interchange data crosses the AK56x7/8 directly to the Dodge AK56 X 7/8, as well as Martin AK56 7/8, Gates AK56.7/8, TB Woods AK5678. Verify groove count, diameter, and bore or bushing before ordering.

Does the AK56x7/8 ship from Houston?

Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.

Need a quote on AK56x7/8?

Houston warehouse, same-day shipping on stock items.

Call (888) 203-2358

QD® is a registered trademark of TB Woods/Regal Rexnord. All third-party part numbers and trademarks referenced, including Dodge®, Gates®, Martin, TB Woods®, Browning®, and others shown in the cross reference table, are the property of their respective owners. References are for compatibility identification only and do not imply affiliation or endorsement.
