AK74x1-1/4 Light Duty V-Belt Sheave, 1 Groove, 7.25 in OD, 1-1/4 in Bore


Price:
$ 38.60

Description

AK74x1-1/4 Light Duty V-Belt Sheave, 1 Groove, 7.25 in OD, 1-1/4 in Bore

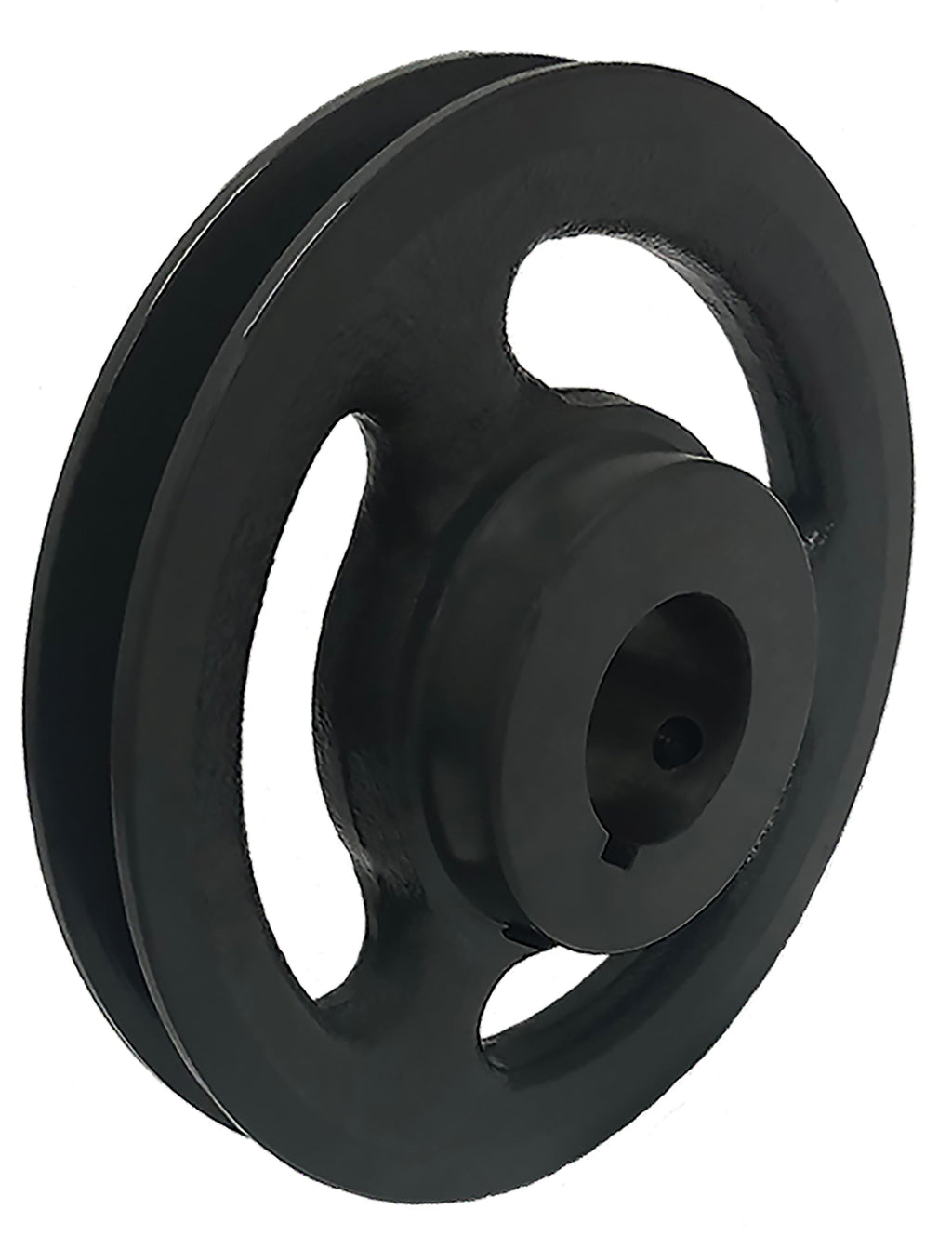

The AK74x1-1/4 is a 1-groove light duty V-belt sheave with a 7.25 in outside diameter, fully machined from cast iron and statically balanced, supplied with a 1-1/4 in finished bore. It runs 3L, 4L, and A section V-belts.

$50 minimum order on drive components. Mix and match any pulleys, bushings, sheaves, sprockets, and accessories in your cart to reach the $50 minimum. Questions? Call (888) 203-2358.

Specifications

Specification Value
Part Number AK74x1-1/4
Belt Section AK
Grooves 1
Outside Diameter 7.25 in
Face Width 0.75 in
Bore 1-1/4 in finished bore
Keyway / Set Screw 1 x 5/16-18 UNC
Material Cast Iron, fully machined, statically balanced
Weight 4.1 lb
Country of Origin China

Applications

  • Fractional horsepower motor drives
  • Furnace blowers, attic fans, and air handlers
  • Power tools, lawn equipment, and light machinery
  • Direct replacement for worn FHP sheaves

Cross Reference

The AK74x1-1/4 interchanges with these equivalent part numbers, per published manufacturer interchange data:

Manufacturer Equivalent Part Number
Dodge® AK74 X 1-1/4
Martin AK74 1 1/4
Gates® AK74 1.1/4
TB Woods® AK74114
Regal Rexnord (Browning®) AK74x 1 1/4
Carlisle AK-74-1 1/4
Masterdrive AK74-1-1/4
Maurey AK74 X 1-1/4
Jason Industrial AK74-1-1/4
Optibelt AK74-1 1/4

Always verify dimensions and bore size before substituting part numbers across manufacturers.

Buying in bulk? Save on volume.

Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.

Frequently Asked Questions

What belts run on the AK74x1-1/4?

3L, 4L, and A section V-belts. These sections are standardized, so any manufacturer's belts of the correct section and length will run in the grooves.

Does the AK74x1-1/4 replace the Dodge AK74 X 1-1/4 sheave?

Yes. Published interchange data crosses the AK74x1-1/4 directly to the Dodge AK74 X 1-1/4, as well as Martin AK74 1 1/4, Gates AK74 1.1/4, TB Woods AK74114. Verify groove count, diameter, and bore or bushing before ordering.

Does the AK74x1-1/4 ship from Houston?

Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.
