Description
AK94x5/8 Light Duty V-Belt Sheave, 1 Groove, 9.25 in OD, 5/8 in Bore

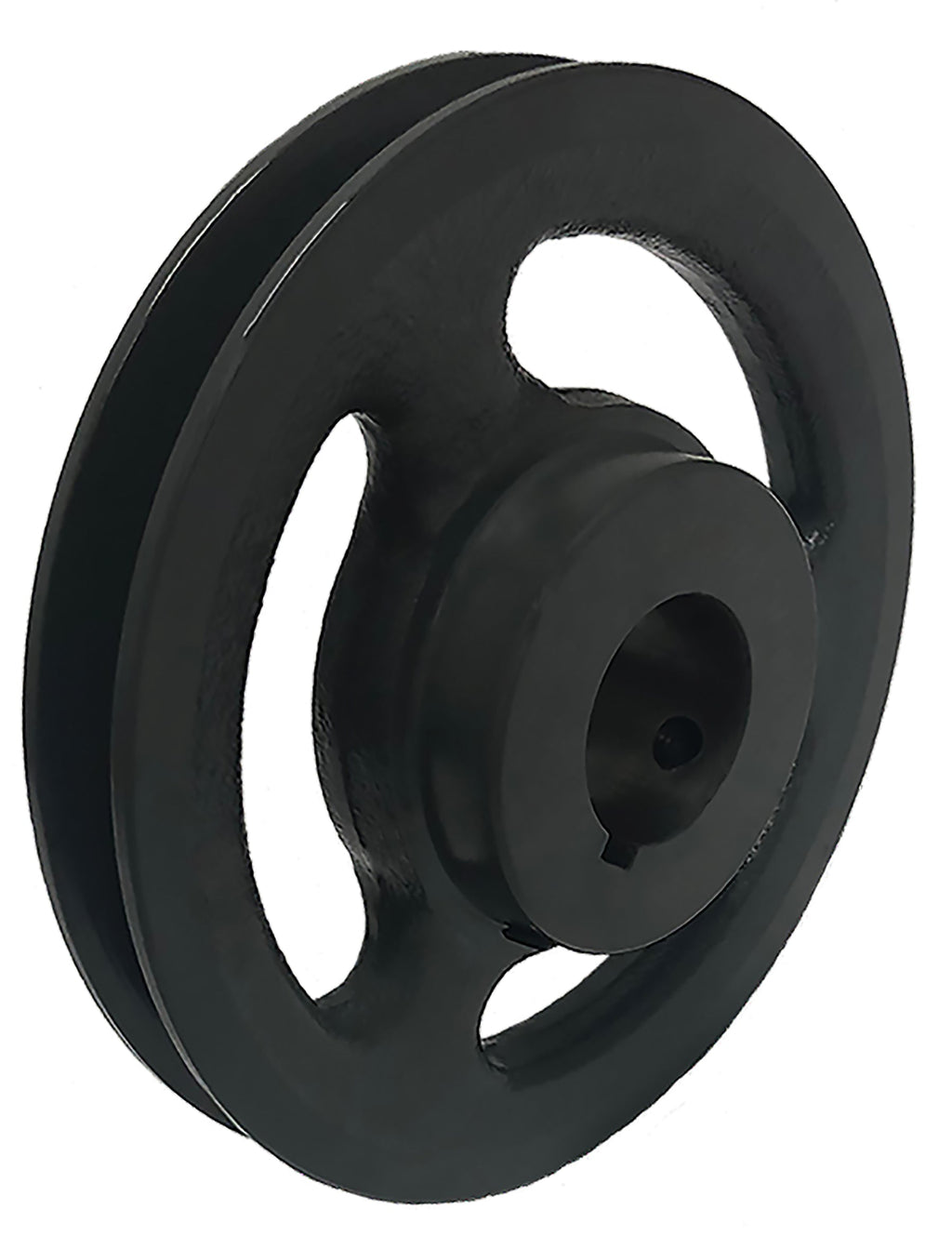

The AK94x5/8 is a 1-groove light duty V-belt sheave with a 9.25 in outside diameter, fully machined from cast iron and statically balanced, supplied with a 5/8 in finished bore. It runs 3L, 4L, and A section V-belts.
Specifications
| Specification | Value |
|---|---|
| Part Number | AK94x5/8 |
| Belt Section | AK |
| Grooves | 1 |
| Outside Diameter | 9.25 in |
| Face Width | 0.75 in |
| Bore | 5/8 in finished bore |
| Keyway / Set Screw | 1 x 5/16-18 UNC |
| Material | Cast Iron, fully machined, statically balanced |
| Weight | 5.2 lb |
| Country of Origin | China |
Applications
- Fractional horsepower motor drives
- Furnace blowers, attic fans, and air handlers
- Power tools, lawn equipment, and light machinery
- Direct replacement for worn FHP sheaves
Cross Reference
The AK94x5/8 interchanges with these equivalent part numbers, per published manufacturer interchange data:
| Manufacturer | Equivalent Part Number |
|---|---|
| Dodge® | AK94 X 5/8 |
| Martin | AK94 5/8 |
| Gates® | AK94.5/8 |
| TB Woods® | AK9458 |
| Regal Rexnord (Browning®) | AK94x5/8 |
| Carlisle | AK-94-5/8 |
| Masterdrive | AK94-5/8 |
| Maurey | AK94 X 5/8 |
| Jason Industrial | AK94-5/8 |
| Optibelt | AK94-5/8 |
Always verify dimensions and bore size before substituting part numbers across manufacturers.
Buying in bulk? Save on volume.
Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.
Frequently Asked Questions
What belts run on the AK94x5/8?
3L, 4L, and A section V-belts. These sections are standardized, so any manufacturer's belts of the correct section and length will run in the grooves.
Does the AK94x5/8 replace the Dodge AK94 X 5/8 sheave?
Yes. Published interchange data crosses the AK94x5/8 directly to the Dodge AK94 X 5/8, as well as Martin AK94 5/8, Gates AK94.5/8, TB Woods AK9458. Verify groove count, diameter, and bore or bushing before ordering.
Does the AK94x5/8 ship from Houston?
Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.
QD® is a registered trademark of TB Woods/Regal Rexnord. All third-party part numbers and trademarks referenced, including Dodge®, Gates®, Martin, TB Woods®, Browning®, and others shown in the cross reference table, are the property of their respective owners. References are for compatibility identification only and do not imply affiliation or endorsement.
