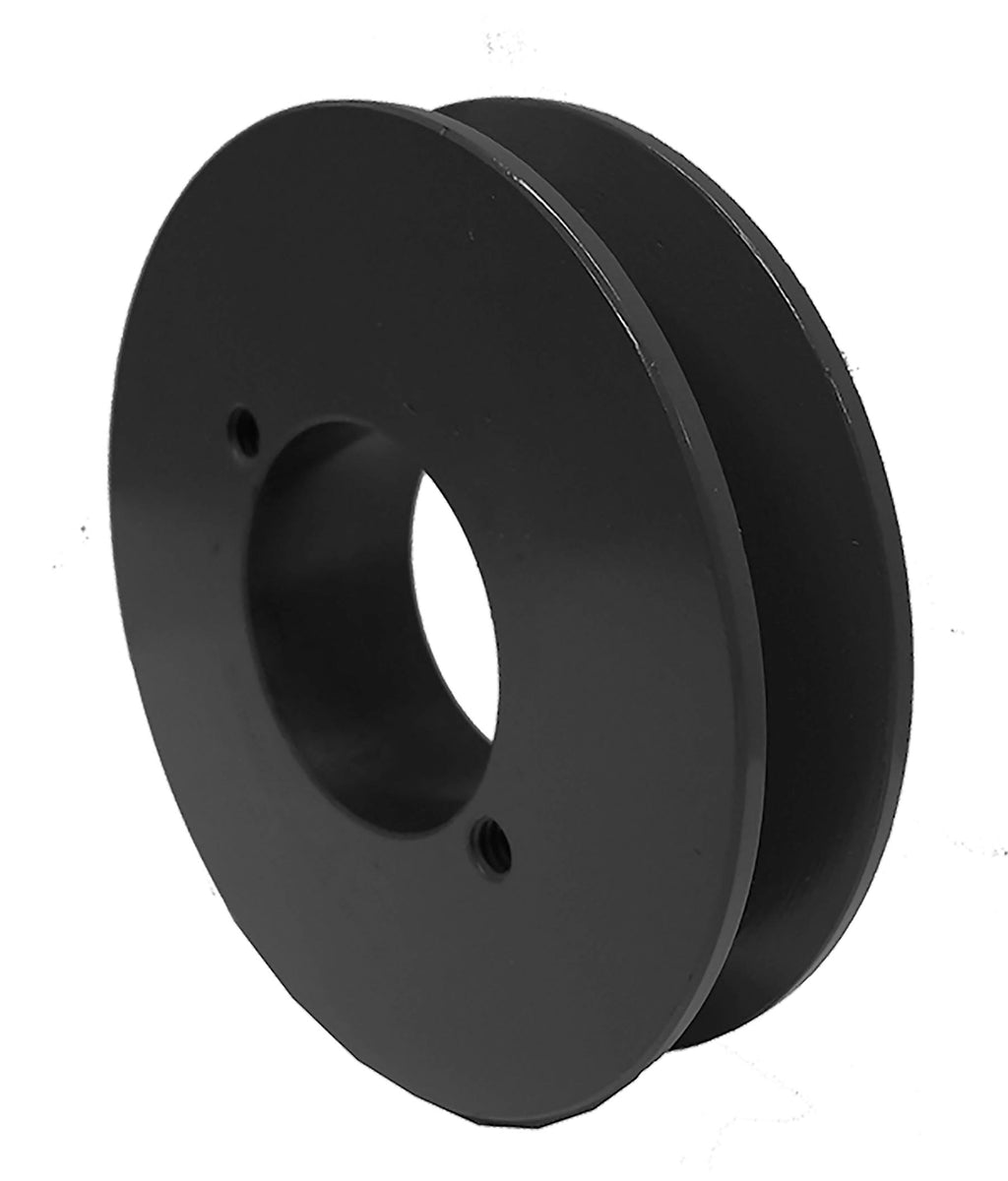

BK32H Light Duty V-Belt Sheave, 1 Groove, 3.35 in OD, H Bushing


Price:
$ 24.06

Description

BK32H Light Duty V-Belt Sheave, 1 Groove, 3.35 in OD, H Bushing

The BK32H is a 1-groove light duty V-belt sheave with a 3.35 in outside diameter, fully machined from cast iron and statically balanced. It mounts with an industry-standard H QD® style bushing, sold separately, sized to your shaft. It runs 4L, 5L, A, and B section V-belts.

$50 minimum order on drive components. Mix and match any pulleys, bushings, sheaves, sprockets, and accessories in your cart to reach the $50 minimum. Questions? Call (888) 203-2358.

Specifications

Specification Value
Part Number BK32H
Belt Section BK
Grooves 1
Outside Diameter 3.35 in
Pitch Diameter (A / B belts) 2.6 in / 3 in
Face Width 0.813 in
Bushing H series, QD® style (not included)
Material Cast Iron, fully machined, statically balanced
Weight 1.4 lb
Country of Origin China

Applications

  • Fractional horsepower motor drives
  • Furnace blowers, attic fans, and air handlers
  • Power tools, lawn equipment, and light machinery
  • Direct replacement for worn FHP sheaves

Cross Reference

The BK32H interchanges with these equivalent part numbers, per published manufacturer interchange data:

Manufacturer Equivalent Part Number
Dodge® BK32QT
Martin BK32-H
Gates® BK32QT
TB Woods® BK32
Regal Rexnord (Browning®) BK32H
Carlisle BK-32-H
Masterdrive BK32H
Maurey BK32H
Jason Industrial BK32H
Optibelt BK32H

Always verify dimensions and bore size before substituting part numbers across manufacturers.

Buying in bulk? Save on volume.

Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.

Frequently Asked Questions

What belts run on the BK32H?

4L, 5L, A, and B section V-belts. These sections are standardized, so any manufacturer's belts of the correct section and length will run in the grooves.

Does the BK32H replace the Dodge BK32QT sheave?

Yes. Published interchange data crosses the BK32H directly to the Dodge BK32QT, as well as Martin BK32-H, Gates BK32QT, TB Woods BK32. Verify groove count, diameter, and bore or bushing before ordering.

What bushing does the BK32H use?

A H series QD style bushing, sold separately. H is an industry-standard bushing size, so any manufacturer's standard H bushing fits. Order the bushing bore that matches your shaft diameter.

Why does the BK32H list two pitch diameters?

Combination sheaves run more than one belt section, and each section rides at a different depth in the groove. The BK32H has a 2.6 in pitch diameter with A or 4L belts and 3 in with B or 5L belts.

Does the BK32H ship from Houston?

Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.

Need a quote on BK32H?

Houston warehouse, same-day shipping on stock items.

Call (888) 203-2358

QD® is a registered trademark of TB Woods/Regal Rexnord. All third-party part numbers and trademarks referenced, including Dodge®, Gates®, Martin, TB Woods®, Browning®, and others shown in the cross reference table, are the property of their respective owners. References are for compatibility identification only and do not imply affiliation or endorsement.
