Description

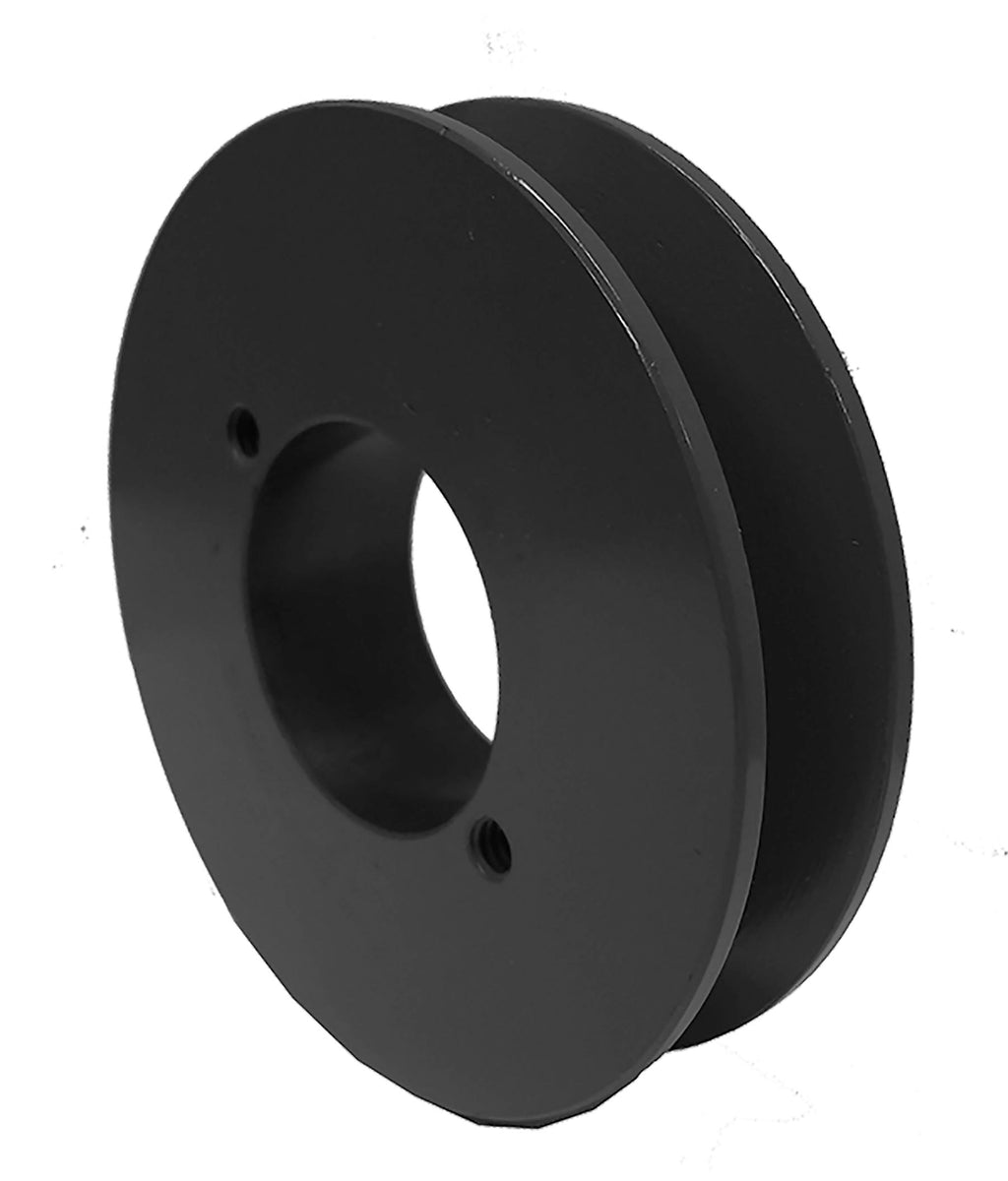

BK70H Light Duty V-Belt Sheave, 1 Groove, 6.75 in OD, H Bushing
The BK70H is a 1-groove light duty V-belt sheave with a 6.75 in outside diameter, fully machined from cast iron and statically balanced. It mounts with an industry-standard H QD® style bushing, sold separately, sized to your shaft. It runs 4L, 5L, A, and B section V-belts.
$50 minimum order on drive components. Mix and match any pulleys, bushings, sheaves, sprockets, and accessories in your cart to reach the $50 minimum. Questions? Call (888) 203-2358.
Specifications
| Specification | Value |
|---|---|
| Part Number | BK70H |
| Belt Section | BK |
| Grooves | 1 |
| Outside Diameter | 6.75 in |
| Pitch Diameter (A / B belts) | 6 in / 6.4 in |
| Face Width | 0.875 in |
| Bushing | H series, QD® style (not included) |
| Material | Cast Iron, fully machined, statically balanced |
| Weight | 2.8 lb |
| Country of Origin | China |
Applications
- Fractional horsepower motor drives
- Furnace blowers, attic fans, and air handlers
- Power tools, lawn equipment, and light machinery
- Direct replacement for worn FHP sheaves
Cross Reference
The BK70H interchanges with these equivalent part numbers, per published manufacturer interchange data:
| Manufacturer | Equivalent Part Number |
|---|---|
| Dodge® | BK70QT |
| Martin | BK70-H |
| Gates® | BK70QT |
| TB Woods® | BK70 |
| Regal Rexnord (Browning®) | BK70H |
| Carlisle | BK-70-H |
| Masterdrive | BK70H |
| Maurey | BK70H |
| Jason Industrial | BK70H |
| Optibelt | BK70H |
Always verify dimensions and bore size before substituting part numbers across manufacturers.
Buying in bulk? Save on volume.
Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.
Frequently Asked Questions
What belts run on the BK70H?
4L, 5L, A, and B section V-belts. These sections are standardized, so any manufacturer's belts of the correct section and length will run in the grooves.
Does the BK70H replace the Dodge BK70QT sheave?
Yes. Published interchange data crosses the BK70H directly to the Dodge BK70QT, as well as Martin BK70-H, Gates BK70QT, TB Woods BK70. Verify groove count, diameter, and bore or bushing before ordering.
What bushing does the BK70H use?
A H series QD style bushing, sold separately. H is an industry-standard bushing size, so any manufacturer's standard H bushing fits. Order the bushing bore that matches your shaft diameter.
Why does the BK70H list two pitch diameters?
Combination sheaves run more than one belt section, and each section rides at a different depth in the groove. The BK70H has a 6 in pitch diameter with A or 4L belts and 6.4 in with B or 5L belts.
Does the BK70H ship from Houston?
Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.
QD® is a registered trademark of TB Woods/Regal Rexnord. All third-party part numbers and trademarks referenced, including Dodge®, Gates®, Martin, TB Woods®, Browning®, and others shown in the cross reference table, are the property of their respective owners. References are for compatibility identification only and do not imply affiliation or endorsement.
