F250-14M20-F Powerhouse® HTD Timing Pulley, 25 Teeth, 14M Pitch


Price:
$ 2,257.12

Description

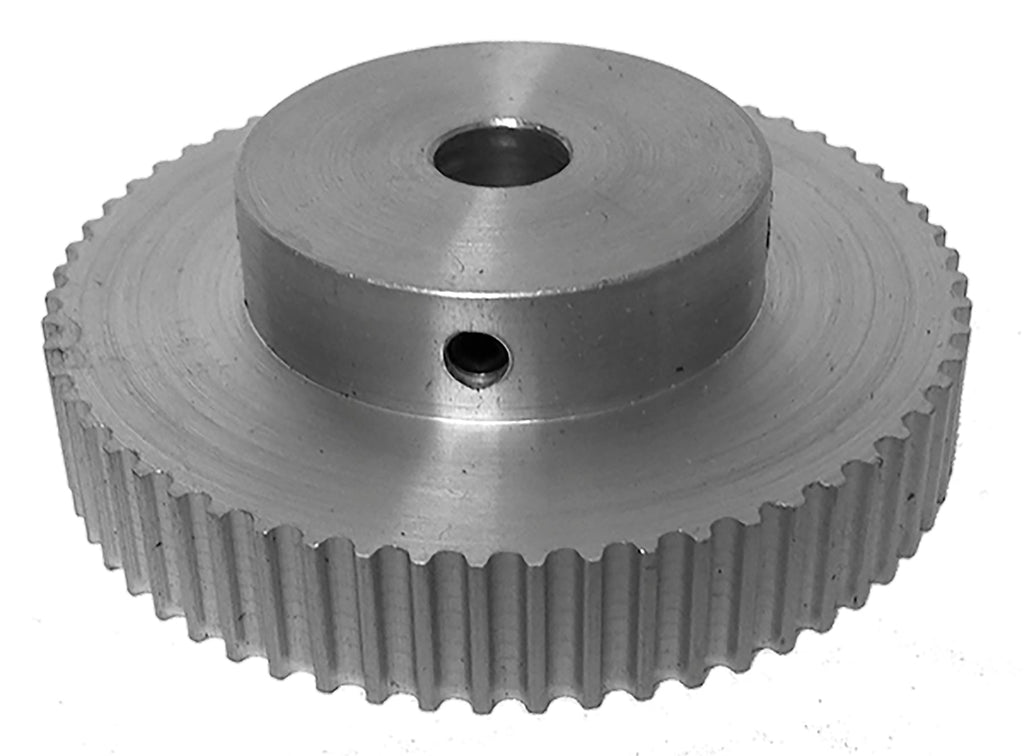

Representative image shown. Actual product appearance varies by size, bore, and configuration. Refer to the specifications table for exact dimensions of this part number.

F250-14M20-F Powerhouse® HTD Timing Pulley, 25 Teeth, 14M Pitch

The F250-14M20-F is a 25-tooth 14 mm HTD® compatible timing pulley. It mounts with an industry-standard bushing, sold separately, machined from cast iron with a black oxide finish, built for 2mm wide belts. Machined from solid stock, never sintered or powdered metal. Powerhouse® HTD pulleys fit drives using HTD® curvilinear belts of the same pitch and width.

Specifications

Type C pulley construction dimension diagram

Dimension key for this construction type. Values for this part number are in the table below.

Specification Value
Part Number F250-14M20-F
Teeth 25
Pitch 14 mm HTD® compatible
For Belt Width 2mm
Pitch Diameter 43.8616 in
Outside Diameter 43.7516 in
Bore Accepts F bushing (not included)
Face Width 1.36 in
Overall Length 2.5 in
Material Cast Iron (no sintered or powdered metal)
Finish Black Oxide
Weight 146 lb
Country of Origin China

Applications

  • HTD curvilinear belt drives on industrial equipment
  • Conveyors, packaging, and warehouse automation
  • Replacing worn pulleys on existing HTD drives
  • Weight-sensitive drives (webbed, lightened construction)

Belt Compatibility

The F250-14M20-F runs 14 mm HTD® compatible belts in 2mm width. The pitch is standardized, so belt and pulley brands can be mixed.

Cross Reference

The F250-14M20-F interchanges with these equivalent part numbers, per published manufacturer interchange data:

Manufacturer Equivalent Part Number
Powerdrive F250-14M20-F

Always verify dimensions and bore size before substituting part numbers across manufacturers.

Buying in bulk? Save on volume.

Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.

Frequently Asked Questions

What belts fit the F250-14M20-F pulley?

14 mm HTD® compatible timing belts in 2mm width from any manufacturer. The pitch is standardized, so belt and pulley brands can be mixed.

Does the F250-14M20-F replace the Powerdrive F250-14M20-F?

Yes. Published interchange data crosses the F250-14M20-F directly to the Powerdrive F250-14M20-F. Verify dimensions and bore before ordering.

Does the F250-14M20-F ship from Houston?

Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.

Need a quote on F250-14M20-F?

Houston warehouse, same-day shipping on stock items.

Call (888) 203-2358

Powerhouse® is a registered trademark of its owner. HTD® is a registered trademark of Gates Corporation. All third-party part numbers and trademarks referenced are the property of their respective owners. References are for compatibility identification only and do not imply affiliation or endorsement.
