Description

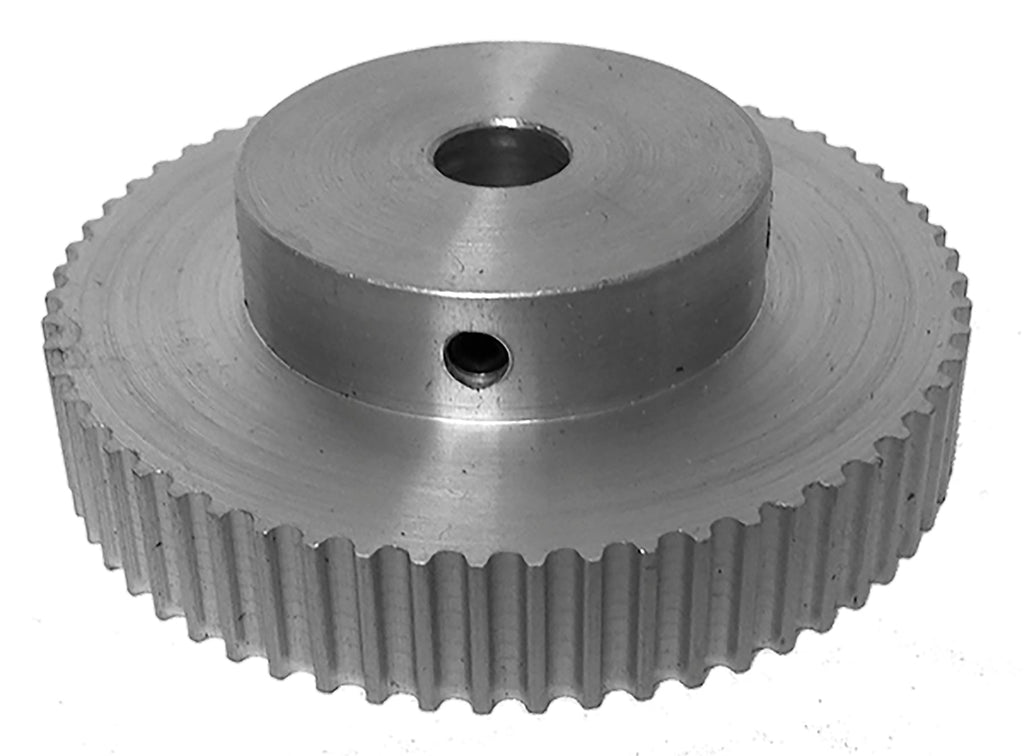

Representative image shown. Actual product appearance varies by size, bore, and configuration. Refer to the specifications table for exact dimensions of this part number.
F263-14M20-F Powerhouse® HTD Timing Pulley, 263 Teeth, 14M Pitch
The F263-14M20-F is a 263-tooth 14 mm HTD® compatible timing pulley. It mounts with an industry-standard bushing, sold separately, machined from cast iron with a black oxide finish, built for 2mm wide belts. Machined from solid stock, never sintered or powdered metal. Powerhouse® HTD pulleys fit drives using HTD® curvilinear belts of the same pitch and width.
Specifications

Dimension key for this construction type. Values for this part number are in the table below.
| Specification | Value |
|---|---|
| Part Number | F263-14M20-F |
| Teeth | 263 |
| Pitch | 14 mm HTD® compatible |
| For Belt Width | 2mm |
| Pitch Diameter | 46.1424 in |
| Outside Diameter | 46.0324 in |
| Bore | Accepts F bushing (not included) |
| Face Width | 1.36 in |
| Overall Length | 2.5 in |
| Material | Cast Iron (no sintered or powdered metal) |
| Finish | Black Oxide |
| Weight | 152 lb |
| Country of Origin | China |
Applications
- HTD curvilinear belt drives on industrial equipment
- Conveyors, packaging, and warehouse automation
- Replacing worn pulleys on existing HTD drives
- Weight-sensitive drives (webbed, lightened construction)
Belt Compatibility
The F263-14M20-F runs 14 mm HTD® compatible belts in 2mm width. The pitch is standardized, so belt and pulley brands can be mixed.
Cross Reference
The F263-14M20-F interchanges with these equivalent part numbers, per published manufacturer interchange data:
| Manufacturer | Equivalent Part Number |
|---|---|
| Powerdrive | F263-14M20-F |
Always verify dimensions and bore size before substituting part numbers across manufacturers.
Buying in bulk? Save on volume.
Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.
Frequently Asked Questions
What belts fit the F263-14M20-F pulley?
14 mm HTD® compatible timing belts in 2mm width from any manufacturer. The pitch is standardized, so belt and pulley brands can be mixed.
Does the F263-14M20-F replace the Powerdrive F263-14M20-F?
Yes. Published interchange data crosses the F263-14M20-F directly to the Powerdrive F263-14M20-F. Verify dimensions and bore before ordering.
Does the F263-14M20-F ship from Houston?
Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.
Need a quote on F263-14M20-F?
Houston warehouse, same-day shipping on stock items.
Call (888) 203-2358Powerhouse® is a registered trademark of its owner. HTD® is a registered trademark of Gates Corporation. All third-party part numbers and trademarks referenced are the property of their respective owners. References are for compatibility identification only and do not imply affiliation or endorsement.
