F33-14MX20-SK Powerhouse® MX Timing Pulley, 33 Teeth, 14MX Pitch


Price:
$ 173.67

Description

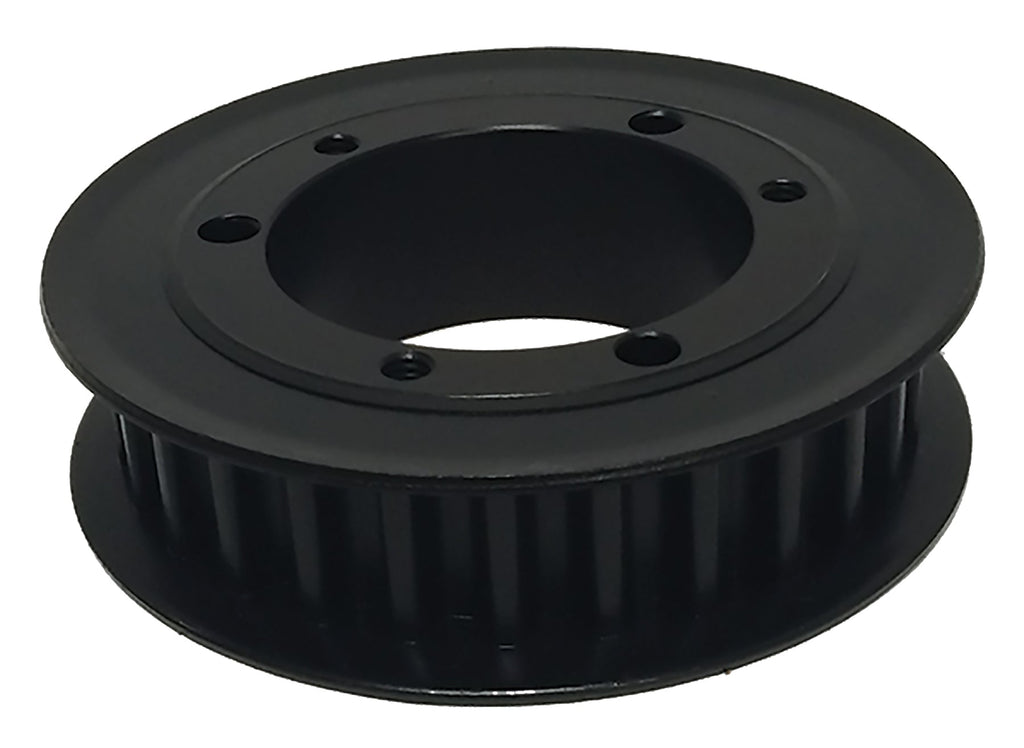

F33-14MX20-SK Powerhouse® MX Timing Pulley, 33 Teeth, 14MX Pitch

The F33-14MX20-SK is a 33-tooth 14 mm MX high torque timing pulley. It mounts with an industry-standard bushing, sold separately, machined from ductile iron with a black oxide finish, built for 2mm wide belts. Machined from solid stock, never sintered or powdered metal. Powerhouse® MX pulleys run on the same high torque drives as Gates Poly Chain® GT® Carbon™ and Continental Synchrochain Carbon belts.

Specifications

Type AF pulley construction dimension diagram

Dimension key for this construction type. Values for this part number are in the table below.

Specification Value
Part Number F33-14MX20-SK
Teeth 33
Pitch 14 mm MX high torque
For Belt Width 2mm
Pitch Diameter 5.7897 in
Outside Diameter 5.6797 in
Flange Diameter 6.465 in
Bore Accepts SK bushing (not included)
Face Width 1.359 in
Overall Length 1.359 in
Hub Diameter 6.3 in
Construction ACHE Sprocket with Quick Disconnect Hub
Flange Material Steel
Material Ductile Iron (no sintered or powdered metal)
Finish Black Oxide
Weight 6.25 lb
Country of Origin United States. ISO 9001:2015 certified manufacturing.

Applications

  • High torque, low speed drives replacing roller chain
  • Air cooled heat exchanger (ACHE) fan drives
  • Oil and gas pumping equipment
  • Material handling and conveyor drives

Belt Compatibility

The F33-14MX20-SK runs 14 mm MX high torque belts in 2mm width. The pitch is standardized, so belt and pulley brands can be mixed.

Cross Reference

The F33-14MX20-SK interchanges with these equivalent part numbers, per published manufacturer interchange data:

Manufacturer Equivalent Part Number
Dodge® F14MX-33S-20-SK
Martin F14MX33S20-SK
Gates® F14M-33S-20
Mitsuboshi F33-14MX20-SK
Powerdrive F33-14MX20-SK

Always verify dimensions and bore size before substituting part numbers across manufacturers.

Buying in bulk? Save on volume.

Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.

Frequently Asked Questions

What belts fit the F33-14MX20-SK pulley?

14 mm MX high torque timing belts in 2mm width from any manufacturer. The pitch is standardized, so belt and pulley brands can be mixed.

Does the F33-14MX20-SK replace the Dodge F14MX-33S-20-SK?

Yes. Published interchange data crosses the F33-14MX20-SK directly to the Dodge F14MX-33S-20-SK, as well as Martin F14MX33S20-SK, Gates F14M-33S-20, Mitsuboshi F33-14MX20-SK. Verify dimensions and bore before ordering.

Does the F33-14MX20-SK ship from Houston?

Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.

Need a quote on F33-14MX20-SK?

Houston warehouse, same-day shipping on stock items.

Call (888) 203-2358

Powerhouse® is a registered trademark of its owner. Poly Chain®, GT®, and Carbon™ are trademarks of Gates Corporation. Synchrochain is a trademark of Continental. All third-party part numbers and trademarks referenced are the property of their respective owners. References are for compatibility identification only and do not imply affiliation or endorsement.
