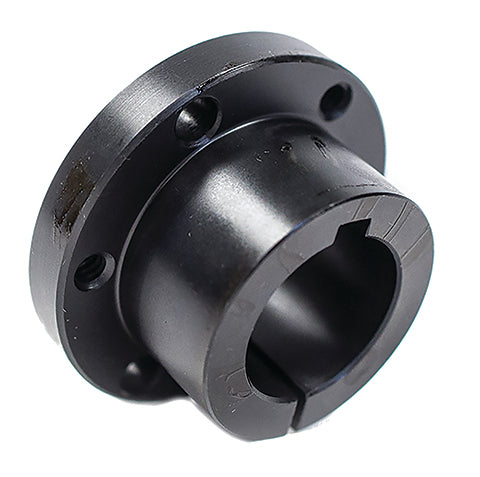

JAx20mm QD® Style Bushing, 20mm Bore, Steel


Price:
$ 11.49

Description

JAx20mm QD® Style Bushing, 20mm Bore, Steel

The JAx20mm is a JA series QD style bushing with a 20mm bore, machined from solid steel with a black oxide finish. It mounts any JA-bushed component, including sheaves, sprockets, and timing pulleys, to a 20mm shaft. Every bushing is machined from solid stock, never sintered or powdered metal, which matters in a part that transmits its load through a friction fit.

$50 minimum order on drive components. Mix and match any pulleys, bushings, sheaves, sprockets, and accessories in your cart to reach the $50 minimum. Questions? Call (888) 203-2358.

Specifications

Specification Value
Part Number JAx20mm
Bushing System QD® style
Series JA
Bore 20mm
Torque Capacity 1750 in-lb
Material Steel (no sintered or powdered metal)
Finish Black Oxide
Weight 0.434 lb
Country of Origin China
Cap Screws 3 - (10-24 x 1)
Bolt Circle 1.66

Applications

  • Mounting JA-bushed V-belt sheaves, sprockets, and timing pulleys to 20mm shafts
  • Drive component replacement where the bushing wears or the shaft size changes
  • Conveyor, fan, pump, and general industrial drive assemblies
  • Stocking standard bushing sizes for plant maintenance inventories

Cross Reference

The JAx20mm interchanges with these equivalent part numbers, per published manufacturer interchange data:

Manufacturer Equivalent Part Number
Dodge® JA X 20MM
Martin JA 20MM
Gates® JA 20MM
TB Woods® JA20MM
Masterdrive JA20MM
Optibelt JA20
Maska JAX20MM

Always verify dimensions and bore size before substituting part numbers across manufacturers.

Buying in bulk? Save on volume.

Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.

Frequently Asked Questions

What does the JAx20mm bushing fit?

It fits any sheave, sprocket, pulley, or coupling machined for a JA series QD style bushing, and mounts that component to a 20mm shaft. The JA size is standardized across manufacturers, so the component brand does not matter.

Does the JAx20mm replace the Dodge JA X 20MM bushing?

Yes. The JA series dimensions are an industry standard, and published interchange data crosses the JAx20mm directly to the Dodge JA X 20MM, as well as Martin JA 20MM, Gates JA 20MM, TB Woods JA20MM. Verify bore size before ordering.

How does a QD style bushing install?

QD style bushings are flanged and split through the flange and barrel. Slide the bushing onto the shaft, seat the component on the taper, and tighten the cap screws through the flange into the component. Torquing the screws compresses the split barrel onto the shaft. Reverse the screws into the jacking holes to remove.

Does the JAx20mm ship from Houston?

Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.

Need a quote on JAx20mm?

Houston warehouse, same-day shipping on stock items.

Call (888) 203-2358

QD® is a registered trademark of TB Woods/Regal Rexnord. All third-party part numbers and trademarks referenced, including Dodge®, Gates®, Martin, TB Woods®, Browning®, and others shown in the cross reference table, are the property of their respective owners. References are for compatibility identification only and do not imply affiliation or endorsement.
