Jx75mm QD® Style Bushing, 75mm Bore, Steel


Price:
$ 199.33

Description

Jx75mm QD® Style Bushing, 75mm Bore, Steel

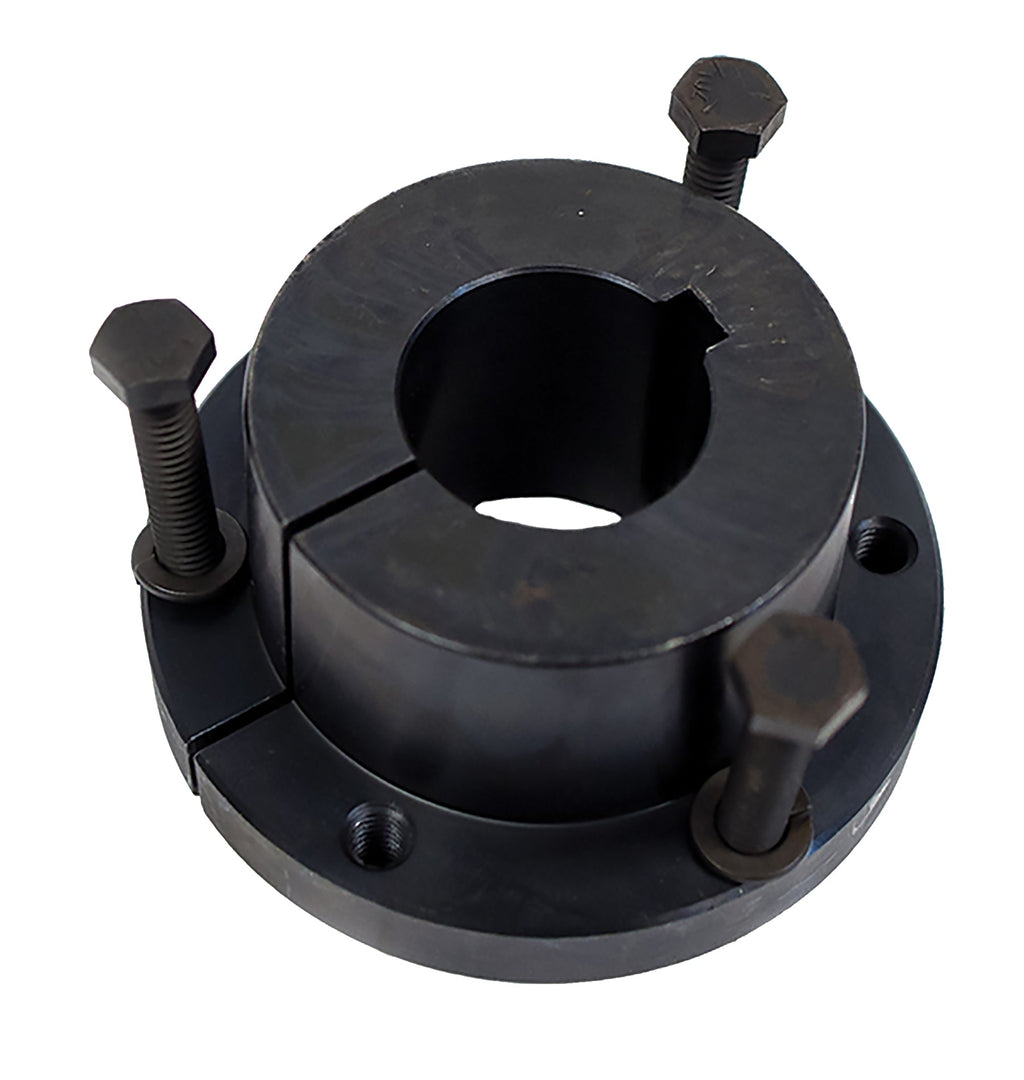

The Jx75mm is a J series QD style bushing with a 75mm bore, machined from solid steel with a black oxide finish. It mounts any J-bushed component, including sheaves, sprockets, and timing pulleys, to a 75mm shaft. Every bushing is machined from solid stock, never sintered or powdered metal, which matters in a part that transmits its load through a friction fit.

Specifications

Specification Value
Part Number Jx75mm
Bushing System QD® style
Series J
Bore 75mm
Torque Capacity 55000 in-lb
Material Steel (no sintered or powdered metal)
Finish Black Oxide
Weight 21 lb
Country of Origin China
Cap Screws 3 - (5/8-11 x 4-1/2)
Bolt Circle 6.25

Applications

  • Mounting J-bushed V-belt sheaves, sprockets, and timing pulleys to 75mm shafts
  • Drive component replacement where the bushing wears or the shaft size changes
  • Conveyor, fan, pump, and general industrial drive assemblies
  • Stocking standard bushing sizes for plant maintenance inventories

Cross Reference

The Jx75mm interchanges with these equivalent part numbers, per published manufacturer interchange data:

Manufacturer Equivalent Part Number
Dodge® J X 75MM
Martin J 75MM
Gates® J 75MM
TB Woods® J75MM
Regal Rexnord (Browning®) J 75 mm
Masterdrive J75MM
Optibelt J75
Grainger 813CT6
Maska JX75MM

Always verify dimensions and bore size before substituting part numbers across manufacturers.

Buying in bulk? Save on volume.

Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.

Frequently Asked Questions

What does the Jx75mm bushing fit?

It fits any sheave, sprocket, pulley, or coupling machined for a J series QD style bushing, and mounts that component to a 75mm shaft. The J size is standardized across manufacturers, so the component brand does not matter.

Does the Jx75mm replace the Dodge J X 75MM bushing?

Yes. The J series dimensions are an industry standard, and published interchange data crosses the Jx75mm directly to the Dodge J X 75MM, as well as Martin J 75MM, Gates J 75MM, TB Woods J75MM. Verify bore size before ordering.

How does a QD style bushing install?

QD style bushings are flanged and split through the flange and barrel. Slide the bushing onto the shaft, seat the component on the taper, and tighten the cap screws through the flange into the component. Torquing the screws compresses the split barrel onto the shaft. Reverse the screws into the jacking holes to remove.

Does the Jx75mm ship from Houston?

Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.

Need a quote on Jx75mm?

Houston warehouse, same-day shipping on stock items.

Call (888) 203-2358

QD® is a registered trademark of TB Woods/Regal Rexnord. All third-party part numbers and trademarks referenced, including Dodge®, Gates®, Martin, TB Woods®, Browning®, and others shown in the cross reference table, are the property of their respective owners. References are for compatibility identification only and do not imply affiliation or endorsement.
