Nx80mm QD® Style Bushing, 80mm Bore, Ductile iron (65-45-12)


Price:
$ 825.77

Description

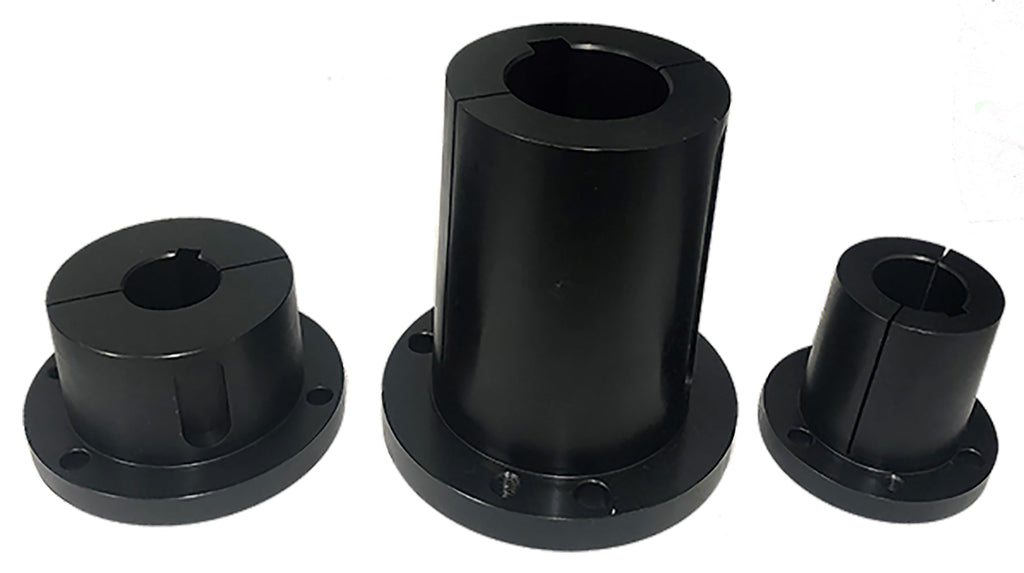

Representative image shown. Actual product appearance varies by size, bore, and configuration. Refer to the specifications table for exact dimensions of this part number.

Nx80mm QD® Style Bushing, 80mm Bore, Ductile iron (65-45-12)

The Nx80mm is a N series QD style bushing with a 80mm bore, machined from solid ductile iron (65-45-12). It mounts any N-bushed component, including sheaves, sprockets, and timing pulleys, to a 80mm shaft. Every bushing is machined from solid stock, never sintered or powdered metal, which matters in a part that transmits its load through a friction fit.

Specifications

Specification Value
Part Number Nx80mm
Bushing System QD® style
Series N
Bore 80mm
Torque Capacity 150000 in-lb
Material Ductile iron (65-45-12) (no sintered or powdered metal)
Weight 80 lb
Country of Origin China
Cap Screws 4 - (7/8-9 x 8)
Bolt Circle 8.5

Applications

  • Mounting N-bushed V-belt sheaves, sprockets, and timing pulleys to 80mm shafts
  • Drive component replacement where the bushing wears or the shaft size changes
  • Conveyor, fan, pump, and general industrial drive assemblies
  • Stocking standard bushing sizes for plant maintenance inventories

Cross Reference

The Nx80mm interchanges with these equivalent part numbers, per published manufacturer interchange data:

Manufacturer Equivalent Part Number
Dodge® N X 80MM
Gates® N 80MM
Optibelt N80

Always verify dimensions and bore size before substituting part numbers across manufacturers.

Buying in bulk? Save on volume.

Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.

Frequently Asked Questions

What does the Nx80mm bushing fit?

It fits any sheave, sprocket, pulley, or coupling machined for a N series QD style bushing, and mounts that component to a 80mm shaft. The N size is standardized across manufacturers, so the component brand does not matter.

Does the Nx80mm replace the Dodge N X 80MM bushing?

Yes. The N series dimensions are an industry standard, and published interchange data crosses the Nx80mm directly to the Dodge N X 80MM, as well as Gates N 80MM, Optibelt N80. Verify bore size before ordering.

How does a QD style bushing install?

QD style bushings are flanged and split through the flange and barrel. Slide the bushing onto the shaft, seat the component on the taper, and tighten the cap screws through the flange into the component. Torquing the screws compresses the split barrel onto the shaft. Reverse the screws into the jacking holes to remove.

Does the Nx80mm ship from Houston?

Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.

Need a quote on Nx80mm?

Houston warehouse, same-day shipping on stock items.

Call (888) 203-2358

QD® is a registered trademark of TB Woods/Regal Rexnord. All third-party part numbers and trademarks referenced, including Dodge®, Gates®, Martin, TB Woods®, Browning®, and others shown in the cross reference table, are the property of their respective owners. References are for compatibility identification only and do not imply affiliation or endorsement.
