Description

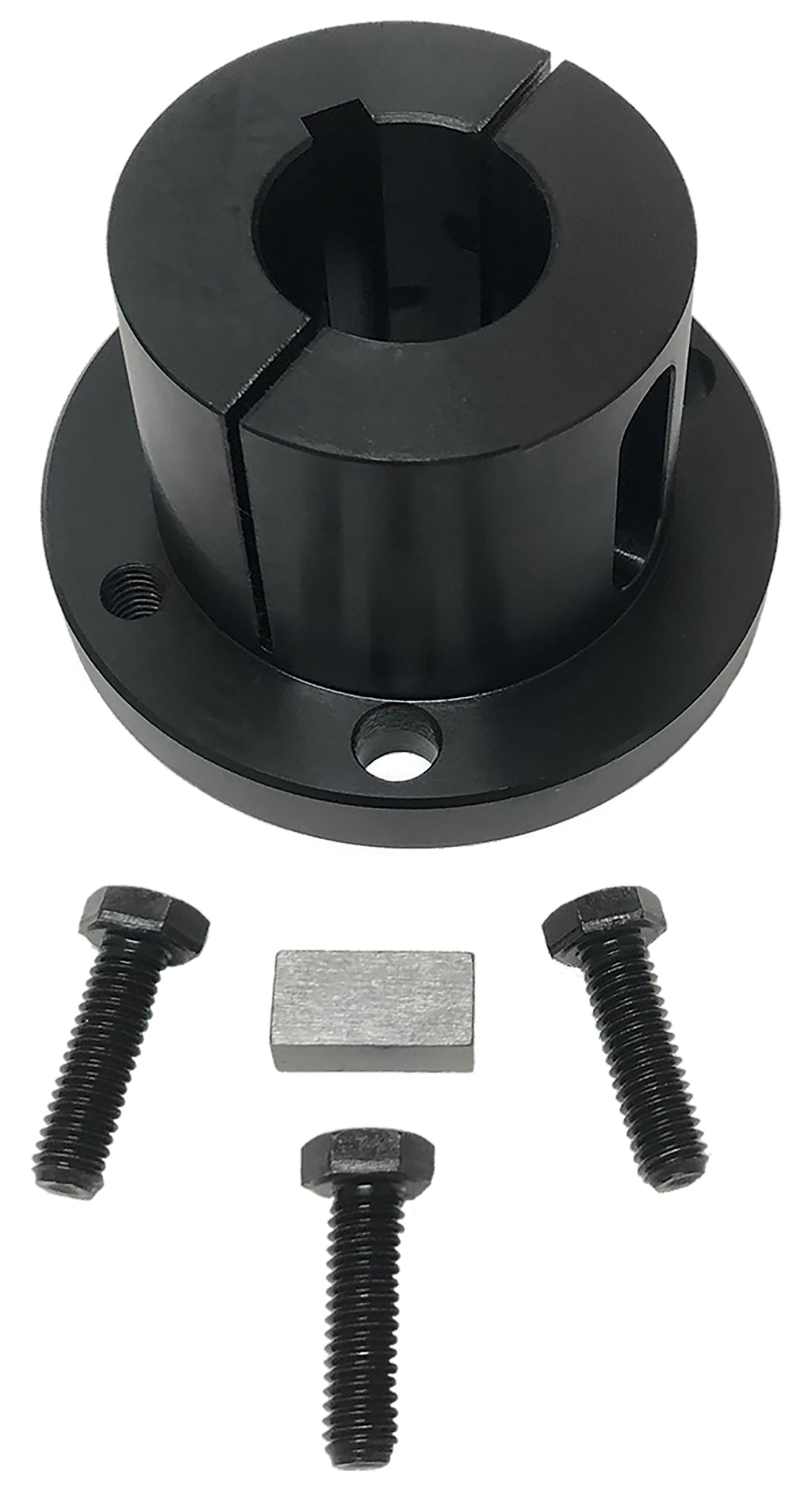

Q1x15/16 Split Taper Bushing, 15/16 in Bore, Steel
The Q1x15/16 is a Q1 series split taper bushing with a 15/16 in bore, machined from solid steel with a black oxide finish. It mounts any Q1-bushed component, including sheaves, sprockets, and timing pulleys, to a 15/16 in shaft. Every bushing is machined from solid stock, never sintered or powdered metal, which matters in a part that transmits its load through a friction fit.
$50 minimum order on drive components. Mix and match any pulleys, bushings, sheaves, sprockets, and accessories in your cart to reach the $50 minimum. Questions? Call (888) 203-2358.
Specifications
| Specification | Value |
|---|---|
| Part Number | Q1x15/16 |
| Bushing System | Split Taper |
| Series | Q1 |
| Bore | 15/16 in |
| Torque Capacity | 348 in-lb |
| Material | Steel (no sintered or powdered metal) |
| Finish | Black Oxide |
| Weight | 3.5 lb |
| Country of Origin | China |
| Cap Screws | 3 - (3/8 X 1-1/4) |
Applications
- Mounting Q1-bushed V-belt sheaves, sprockets, and timing pulleys to 15/16 in shafts
- Drive component replacement where the bushing wears or the shaft size changes
- Conveyor, fan, pump, and general industrial drive assemblies
- Stocking standard bushing sizes for plant maintenance inventories
Cross Reference
The Q1x15/16 interchanges with these equivalent part numbers, per published manufacturer interchange data:
| Manufacturer | Equivalent Part Number |
|---|---|
| Dodge® | Q1 X 15/16 |
| Martin | Q1 15/16 |
| Regal Rexnord (Browning®) | Q1 15/16 |
| Masterdrive | Q1-15/16 |
| Optibelt | Q1-15/16 |
| Jason Industrial | Q1-1-15/16 |
| Grainger | 812YR6 |
| Maska | Q1X15/16 |
Always verify dimensions and bore size before substituting part numbers across manufacturers.
Buying in bulk? Save on volume.
Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.
Frequently Asked Questions
What does the Q1x15/16 bushing fit?
It fits any sheave, sprocket, pulley, or coupling machined for a Q1 series split taper bushing, and mounts that component to a 15/16 in shaft. The Q1 size is standardized across manufacturers, so the component brand does not matter.
Does the Q1x15/16 replace the Dodge Q1 X 15/16 bushing?
Yes. The Q1 series dimensions are an industry standard, and published interchange data crosses the Q1x15/16 directly to the Dodge Q1 X 15/16, as well as Martin Q1 15/16, Regal Rexnord (Browning) Q1 15/16, Masterdrive Q1-15/16. Verify bore size before ordering.
How does a split taper bushing install?
Split taper bushings are split through both the barrel and the taper, with a keyed barrel. Slide the bushing onto the shaft, seat the component, and tighten the cap screws. The double split gives high clamping force on the shaft without scoring it. Reverse the screws into the jacking holes to remove.
Does the Q1x15/16 ship from Houston?
Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.
All third-party part numbers and trademarks referenced, including Dodge®, Gates®, Martin, TB Woods®, Browning®, and others shown in the cross reference table, are the property of their respective owners. References are for compatibility identification only and do not imply affiliation or endorsement.
