QD112-5M-15 Powerhouse® HTD Timing Pulley, 112 Teeth, 5M Pitch


Price:
$ 84.35

Description

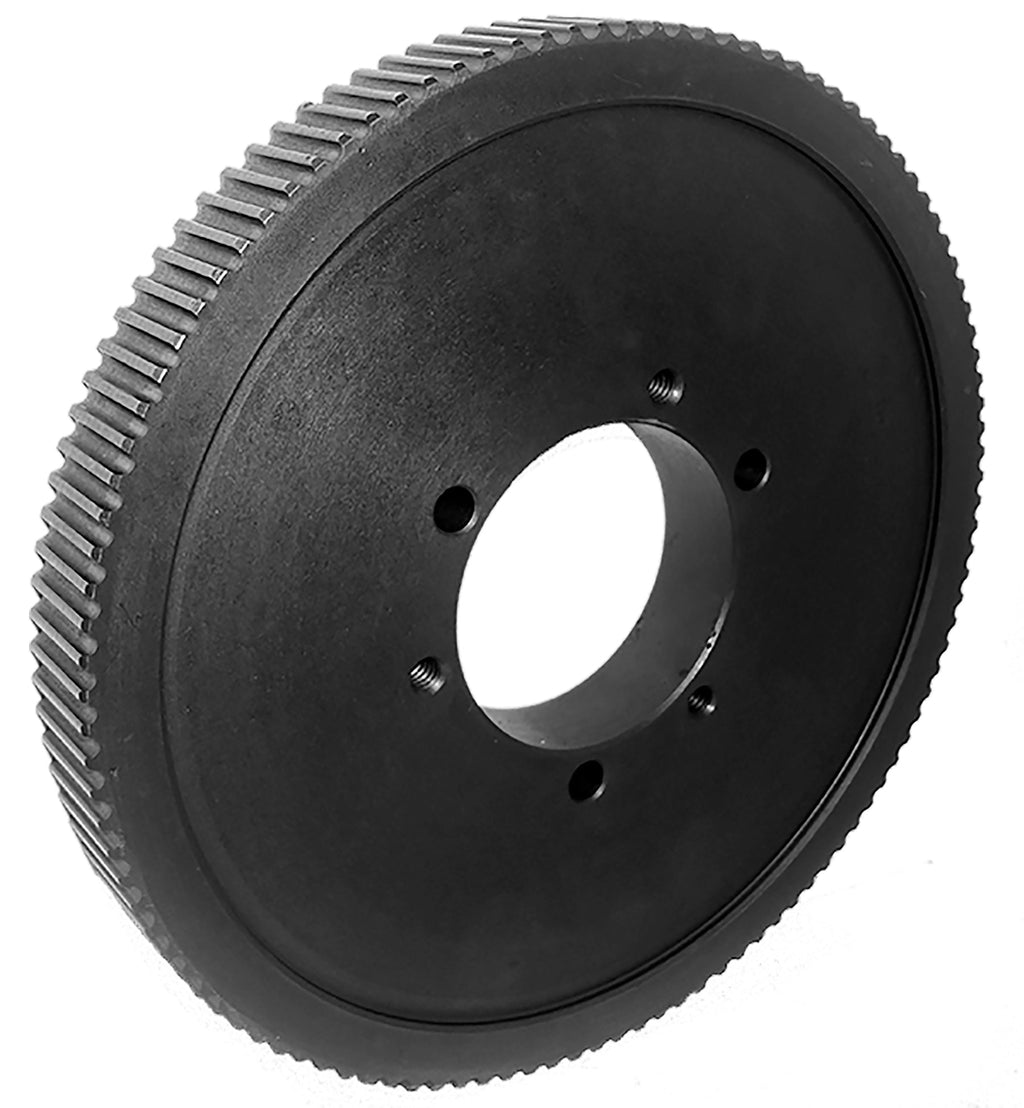

QD112-5M-15 Powerhouse® HTD Timing Pulley, 112 Teeth, 5M Pitch

The QD112-5M-15 is a 112-tooth 5 mm HTD® compatible timing pulley. It mounts with an industry-standard bushing, sold separately, machined from ductile iron with a black oxide finish, built for 15mm wide belts. Machined from solid stock, never sintered or powdered metal. Powerhouse® HTD pulleys fit drives using HTD® curvilinear belts of the same pitch and width.

Specifications

Type C1 pulley construction dimension diagram

Dimension key for this construction type. Values for this part number are in the table below.

Specification Value
Part Number QD112-5M-15
Teeth 112
Pitch 5 mm HTD® compatible
For Belt Width 15mm
Pitch Diameter 7.0179 in
Outside Diameter 6.9729 in
Bore Accepts SDS bushing (not included)
Face Width 0.84 in
Overall Length 0.84 in
Hub Diameter 0.676 in
Construction Quick Disconnect Hub
Material Ductile Iron (no sintered or powdered metal)
Finish Black Oxide
Weight 6.9 lb
Country of Origin United States. ISO 9001:2015 certified manufacturing.

Applications

  • HTD curvilinear belt drives on industrial equipment
  • Conveyors, packaging, and warehouse automation
  • Replacing worn pulleys on existing HTD drives

Belt Compatibility

The QD112-5M-15 runs 5 mm HTD® compatible belts in 15mm width. The pitch is standardized, so belt and pulley brands can be mixed.

Cross Reference

The QD112-5M-15 interchanges with these equivalent part numbers, per published manufacturer interchange data:

Manufacturer Equivalent Part Number
Dodge® P112-5M-15-SDS
Martin P1125M15-SDS
TB Woods® P1125M15
Jason Industrial P1125M15SDS
Masterdrive P112-5M-15-SDS
Neuman P112-5M-15-SDS
Ametric 5M112QD15.SDS
Grainger 809R09
Powerdrive QD112-5M-15
Continental (ContiTech) P112-5M-15-SDS

Always verify dimensions and bore size before substituting part numbers across manufacturers.

Buying in bulk? Save on volume.

Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.

Frequently Asked Questions

What belts fit the QD112-5M-15 pulley?

5 mm HTD® compatible timing belts in 15mm width from any manufacturer. The pitch is standardized, so belt and pulley brands can be mixed.

Does the QD112-5M-15 replace the Dodge P112-5M-15-SDS?

Yes. Published interchange data crosses the QD112-5M-15 directly to the Dodge P112-5M-15-SDS, as well as Martin P1125M15-SDS, TB Woods P1125M15, Jason Industrial P1125M15SDS. Verify dimensions and bore before ordering.

Does the QD112-5M-15 ship from Houston?

Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.

Need a quote on QD112-5M-15?

Houston warehouse, same-day shipping on stock items.

Call (888) 203-2358

Powerhouse® is a registered trademark of its owner. HTD® is a registered trademark of Gates Corporation. All third-party part numbers and trademarks referenced are the property of their respective owners. References are for compatibility identification only and do not imply affiliation or endorsement.
