QD144-14M-40 Powerhouse® HTD Timing Pulley, 144 Teeth, 14M Pitch


Price:
$ 600

Description

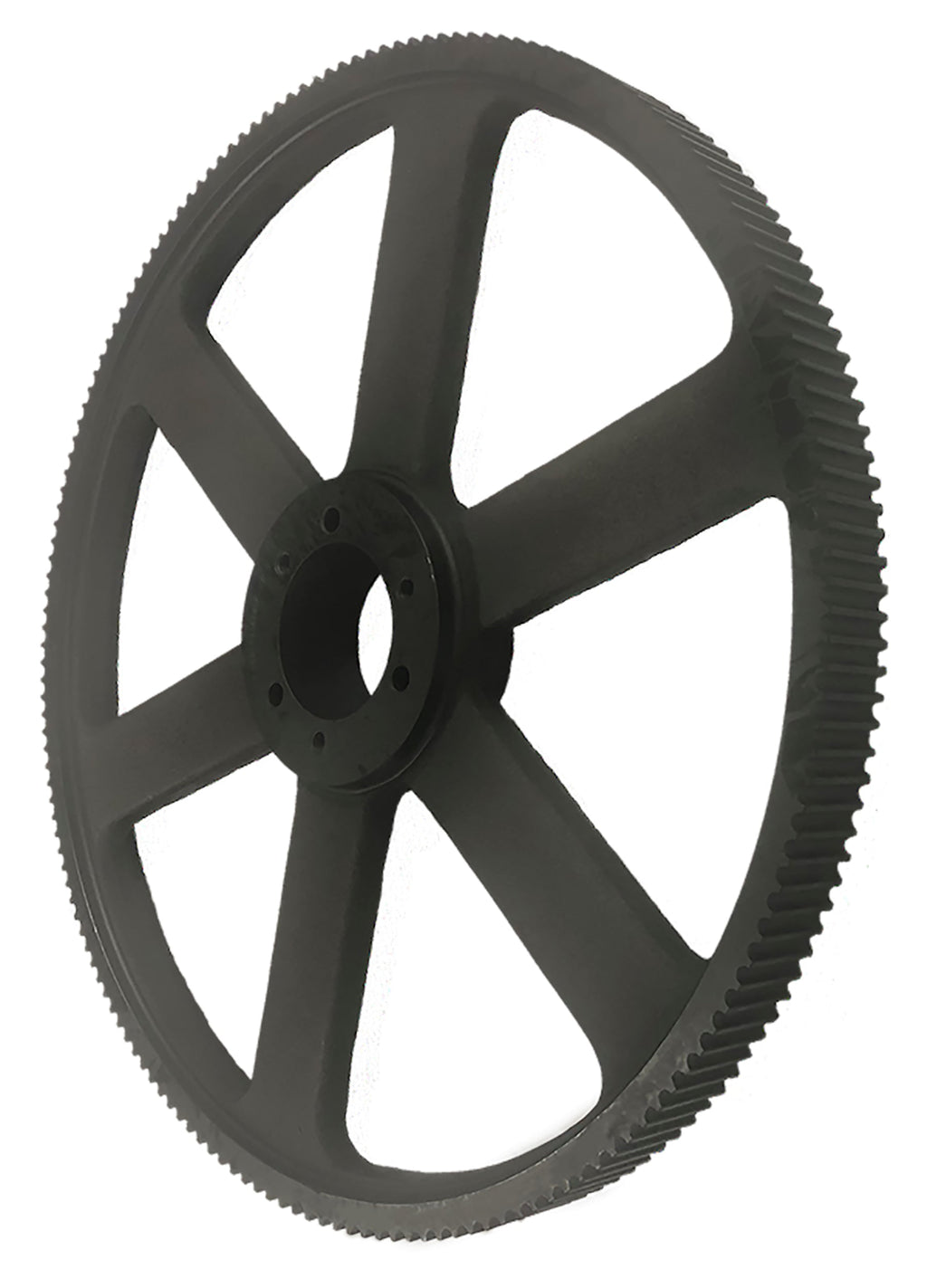

QD144-14M-40 Powerhouse® HTD Timing Pulley, 144 Teeth, 14M Pitch

The QD144-14M-40 is a 144-tooth 14 mm HTD® compatible timing pulley. It mounts with an industry-standard bushing, sold separately, machined from cast iron with a black oxide finish, built for 4mm wide belts. Machined from solid stock, never sintered or powdered metal. Powerhouse® HTD pulleys fit drives using HTD® curvilinear belts of the same pitch and width.

Specifications

Type D3 pulley construction dimension diagram

Dimension key for this construction type. Values for this part number are in the table below.

Specification Value
Part Number QD144-14M-40
Teeth 144
Pitch 14 mm HTD® compatible
For Belt Width 4mm
Pitch Diameter 25.2643 in
Outside Diameter 25.1543 in
Bore Accepts E bushing (not included)
Face Width 2.125 in
Overall Length 2.125 in
Construction Quick Disconnect Hub
Material Cast Iron (no sintered or powdered metal)
Finish Black Oxide
Weight 8 lb
Country of Origin China

Applications

  • HTD curvilinear belt drives on industrial equipment
  • Conveyors, packaging, and warehouse automation
  • Replacing worn pulleys on existing HTD drives
  • Weight-sensitive drives (webbed, lightened construction)

Belt Compatibility

The QD144-14M-40 runs 14 mm HTD® compatible belts in 4mm width. The pitch is standardized, so belt and pulley brands can be mixed.

Cross Reference

The QD144-14M-40 interchanges with these equivalent part numbers, per published manufacturer interchange data:

Manufacturer Equivalent Part Number
Dodge® P144-14M-40-E
Martin P14414M40-E
TB Woods® P14414M40
Regal Rexnord (Browning®) B14414M40E
Ametric 14M144QD85.E
Powerdrive QD144-14M-40
Continental (ContiTech) P144-14M-40-E

Always verify dimensions and bore size before substituting part numbers across manufacturers.

Buying in bulk? Save on volume.

Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.

Frequently Asked Questions

What belts fit the QD144-14M-40 pulley?

14 mm HTD® compatible timing belts in 4mm width from any manufacturer. The pitch is standardized, so belt and pulley brands can be mixed.

Does the QD144-14M-40 replace the Dodge P144-14M-40-E?

Yes. Published interchange data crosses the QD144-14M-40 directly to the Dodge P144-14M-40-E, as well as Martin P14414M40-E, TB Woods P14414M40, Regal Rexnord B14414M40E. Verify dimensions and bore before ordering.

Does the QD144-14M-40 ship from Houston?

Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.

Need a quote on QD144-14M-40?

Houston warehouse, same-day shipping on stock items.

Call (888) 203-2358

Powerhouse® is a registered trademark of its owner. HTD® is a registered trademark of Gates Corporation. All third-party part numbers and trademarks referenced are the property of their respective owners. References are for compatibility identification only and do not imply affiliation or endorsement.
