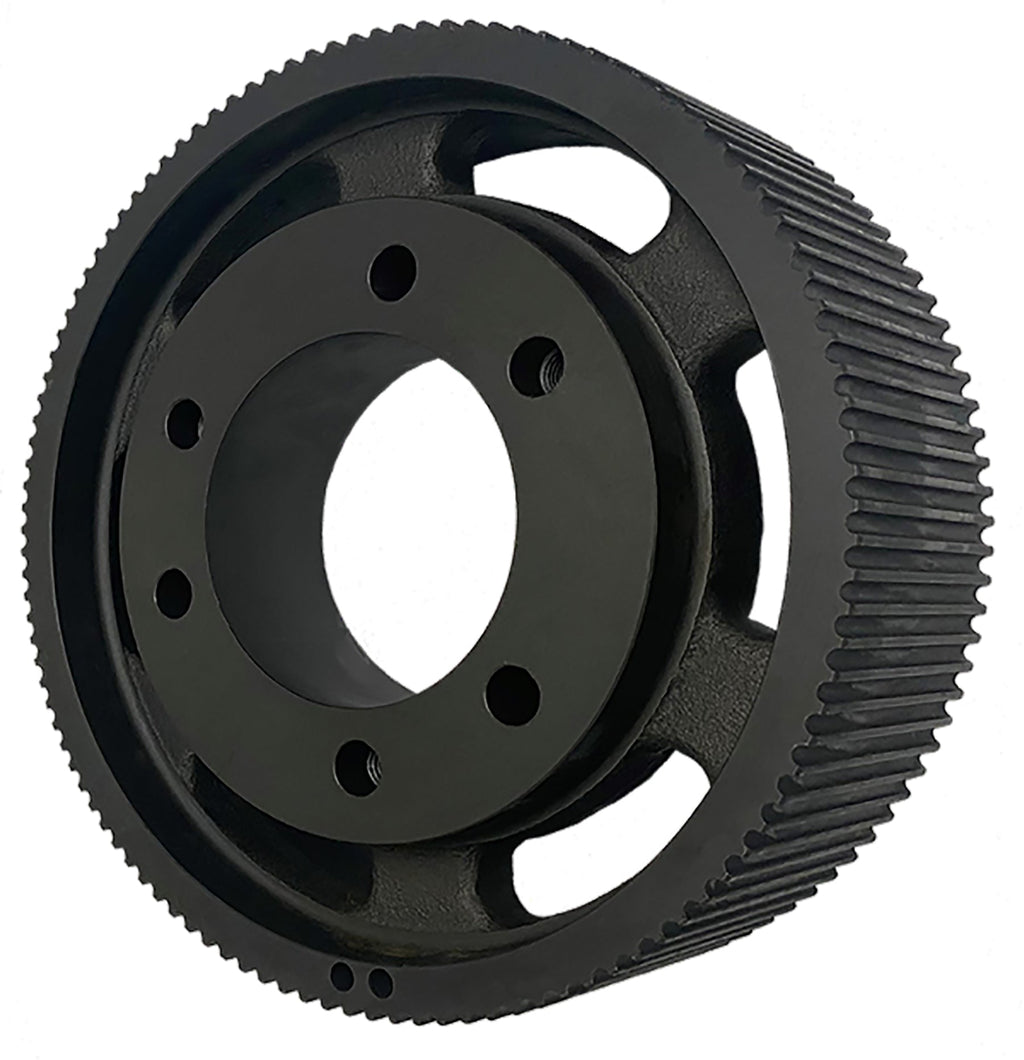

QD192-8M-85-E Powerhouse® HTD Timing Pulley, 192 Teeth, 8M Pitch


Price:
$ 699.96

Description

QD192-8M-85-E Powerhouse® HTD Timing Pulley, 192 Teeth, 8M Pitch

The QD192-8M-85-E is a 192-tooth 8 mm HTD® compatible timing pulley. It mounts with an industry-standard bushing, sold separately, machined from cast iron with a black oxide finish, built for 85mm wide belts. Machined from solid stock, never sintered or powdered metal. Powerhouse® HTD pulleys fit drives using HTD® curvilinear belts of the same pitch and width.

Specifications

Type A3 pulley construction dimension diagram

Dimension key for this construction type. Values for this part number are in the table below.

Specification Value
Part Number QD192-8M-85-E
Teeth 192
Pitch 8 mm HTD® compatible
For Belt Width 85mm
Pitch Diameter 19.249 in
Outside Diameter 19.197 in
Bore Accepts E bushing (not included)
Flange Material Steel
Material Cast Iron (no sintered or powdered metal)
Finish Black Oxide
Weight 68.5 lb
Country of Origin China

Applications

  • HTD curvilinear belt drives on industrial equipment
  • Conveyors, packaging, and warehouse automation
  • Replacing worn pulleys on existing HTD drives
  • Weight-sensitive drives (webbed, lightened construction)

Belt Compatibility

The QD192-8M-85-E runs 8 mm HTD® compatible belts in 85mm width. The pitch is standardized, so belt and pulley brands can be mixed.

Cross Reference

The QD192-8M-85-E interchanges with these equivalent part numbers, per published manufacturer interchange data:

Manufacturer Equivalent Part Number
Dodge® P192-8M-85-E
Martin P1928M85-E
Ametric 8M192QD85.E
Powerdrive QD192-8M-85-E

Always verify dimensions and bore size before substituting part numbers across manufacturers.

Buying in bulk? Save on volume.

Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.

Frequently Asked Questions

What belts fit the QD192-8M-85-E pulley?

8 mm HTD® compatible timing belts in 85mm width from any manufacturer. The pitch is standardized, so belt and pulley brands can be mixed.

Does the QD192-8M-85-E replace the Dodge P192-8M-85-E?

Yes. Published interchange data crosses the QD192-8M-85-E directly to the Dodge P192-8M-85-E, as well as Martin P1928M85-E, Ametric 8M192QD85.E, Powerdrive QD192-8M-85-E. Verify dimensions and bore before ordering.

Does the QD192-8M-85-E ship from Houston?

Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.

Need a quote on QD192-8M-85-E?

Houston warehouse, same-day shipping on stock items.

Call (888) 203-2358

Powerhouse® is a registered trademark of its owner. HTD® is a registered trademark of Gates Corporation. All third-party part numbers and trademarks referenced are the property of their respective owners. References are for compatibility identification only and do not imply affiliation or endorsement.
