QD216-14M-40-E Powerhouse® HTD Timing Pulley, 216 Teeth, 14M Pitch


Price:
$ 1,714.74

Description

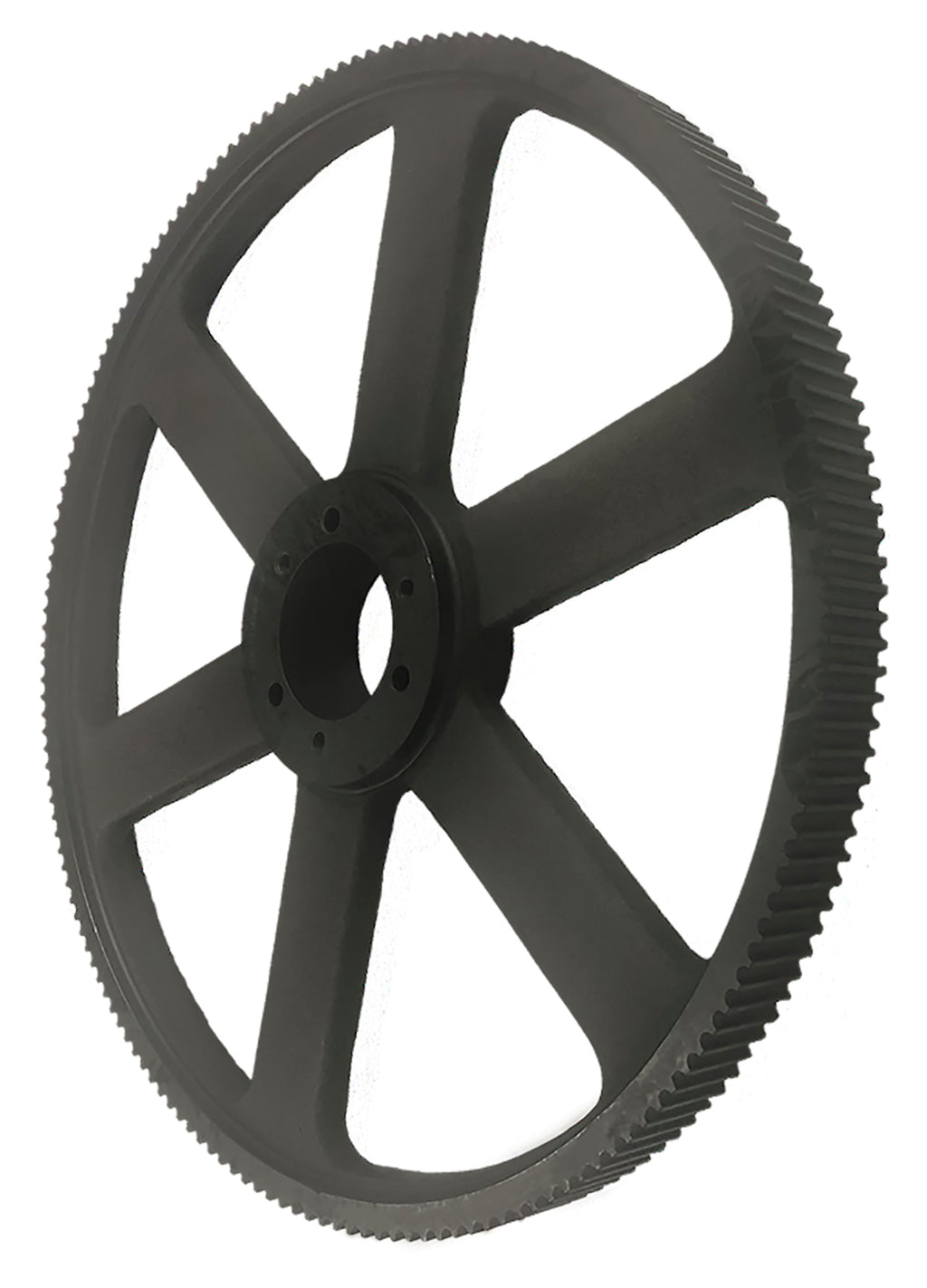

QD216-14M-40-E Powerhouse® HTD Timing Pulley, 216 Teeth, 14M Pitch

The QD216-14M-40-E is a 216-tooth 14 mm HTD® compatible timing pulley. It mounts with an industry-standard bushing, sold separately, machined from cast iron with a black oxide finish, built for 4mm wide belts. Machined from solid stock, never sintered or powdered metal. Powerhouse® HTD pulleys fit drives using HTD® curvilinear belts of the same pitch and width.

Specifications

Type D3 pulley construction dimension diagram

Dimension key for this construction type. Values for this part number are in the table below.

Specification Value
Part Number QD216-14M-40-E
Teeth 216
Pitch 14 mm HTD® compatible
For Belt Width 4mm
Pitch Diameter 37.8964 in
Outside Diameter 37.7864 in
Bore Accepts E bushing (not included)
Face Width 2.125 in
Overall Length 2.125 in
Construction Quick Disconnect
Material Cast Iron (no sintered or powdered metal)
Finish Black Oxide
Weight 137 lb
Country of Origin China

Applications

  • HTD curvilinear belt drives on industrial equipment
  • Conveyors, packaging, and warehouse automation
  • Replacing worn pulleys on existing HTD drives

Belt Compatibility

The QD216-14M-40-E runs 14 mm HTD® compatible belts in 4mm width. The pitch is standardized, so belt and pulley brands can be mixed.

Cross Reference

The QD216-14M-40-E interchanges with these equivalent part numbers, per published manufacturer interchange data:

Manufacturer Equivalent Part Number
Ametric 14M216QD40.E
Powerdrive QD216-14M-40-E

Always verify dimensions and bore size before substituting part numbers across manufacturers.

Buying in bulk? Save on volume.

Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.

Frequently Asked Questions

What belts fit the QD216-14M-40-E pulley?

14 mm HTD® compatible timing belts in 4mm width from any manufacturer. The pitch is standardized, so belt and pulley brands can be mixed.

Does the QD216-14M-40-E replace the Ametric 14M216QD40.E?

Yes. Published interchange data crosses the QD216-14M-40-E directly to the Ametric 14M216QD40.E, as well as Powerdrive QD216-14M-40-E. Verify dimensions and bore before ordering.

Does the QD216-14M-40-E ship from Houston?

Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.

Need a quote on QD216-14M-40-E?

Houston warehouse, same-day shipping on stock items.

Call (888) 203-2358

Powerhouse® is a registered trademark of its owner. HTD® is a registered trademark of Gates Corporation. All third-party part numbers and trademarks referenced are the property of their respective owners. References are for compatibility identification only and do not imply affiliation or endorsement.
