QD22L050 Timing Pulley, 22 Teeth, L Pitch


Price:
$ 43.87

Description

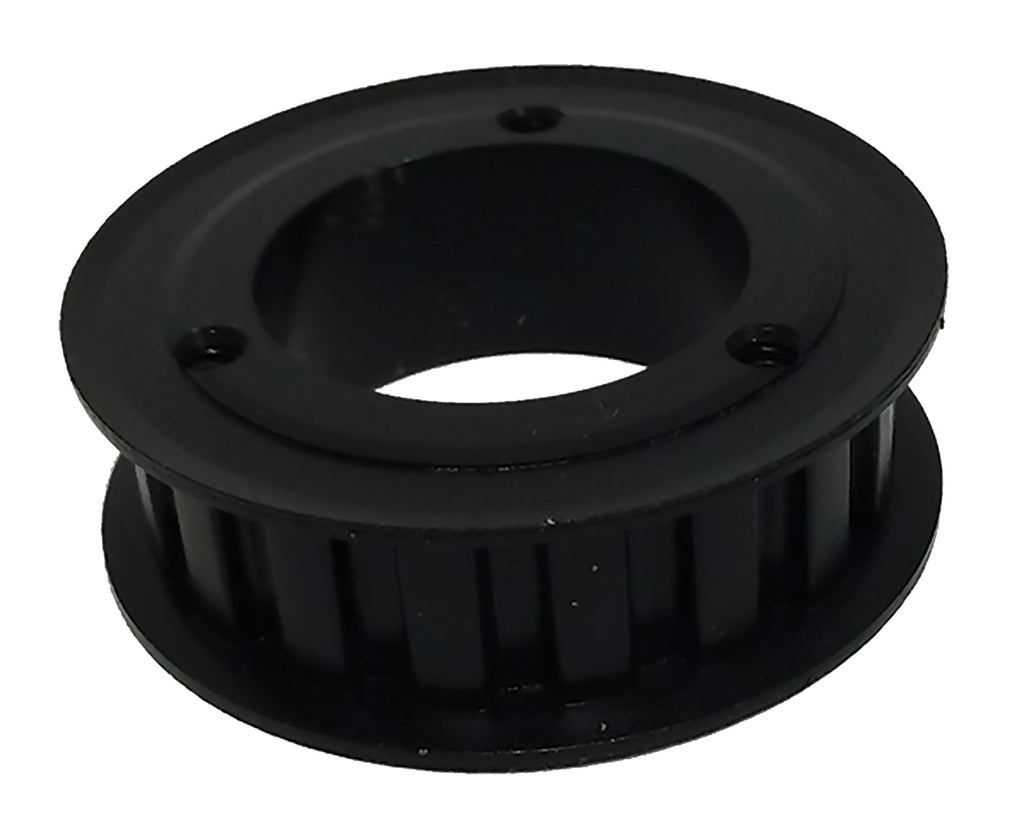

QD22L050 Timing Pulley, 22 Teeth, L Pitch

The QD22L050 is a 22-tooth L (0.375 in trapezoidal) timing pulley. It mounts with an industry-standard bushing, sold separately, machined from steel with a black oxide finish, built for 0.5 in wide belts. Machined from solid stock, never sintered or powdered metal.

$50 minimum order on drive components. Mix and match any pulleys, bushings, sheaves, sprockets, and accessories in your cart to reach the $50 minimum. Questions? Call (888) 203-2358.

Specifications

Type E1F pulley construction dimension diagram

Dimension key for this construction type. Values for this part number are in the table below.

Specification Value
Part Number QD22L050
Teeth 22
Pitch L (0.375 in trapezoidal)
For Belt Width 0.5 in
Pitch Diameter 2.6261 in
Outside Diameter 2.5961 in
Flange Diameter 2.875 in
Bore Accepts JA bushing (not included)
Face Width 0.75 in
Overall Length 0.75 in
Construction Quick Disconnect Hub
Flange Material Steel
Material Steel (no sintered or powdered metal)
Finish Black Oxide
Weight 0.778 lb
Country of Origin United States. ISO 9001:2015 certified manufacturing.

Applications

  • Instrumentation, office equipment, and precision positioning drives
  • 3D printers and desktop CNC equipment
  • Robotics, medical devices, and packaging machinery

Belt Compatibility

The QD22L050 runs L (0.375 in trapezoidal) belts in 0.5 in width. The pitch is standardized, so belt and pulley brands can be mixed.

Cross Reference

The QD22L050 interchanges with these equivalent part numbers, per published manufacturer interchange data:

Manufacturer Equivalent Part Number
Martin 22L050 JA
TB Woods® 22L050
Regal Rexnord (Browning®) 22L050JA
Mitsuboshi QD22L050
Jason Industrial 22L050JA
Neuman 22L050-JA
Ametric 22L050.JA
McMaster-Carr 6495K213
Grainger 809VF8
Powerdrive QD22L050

Always verify dimensions and bore size before substituting part numbers across manufacturers.

Buying in bulk? Save on volume.

Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.

Frequently Asked Questions

What belts fit the QD22L050 pulley?

L (0.375 in trapezoidal) timing belts in 0.5 in width from any manufacturer. The pitch is standardized, so belt and pulley brands can be mixed.

Does the QD22L050 replace the Martin 22L050 JA?

Yes. Published interchange data crosses the QD22L050 directly to the Martin 22L050 JA, as well as TB Woods 22L050, Regal Rexnord 22L050JA, Mitsuboshi QD22L050. Verify dimensions and bore before ordering.

Does the QD22L050 ship from Houston?

Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.

Need a quote on QD22L050?

Houston warehouse, same-day shipping on stock items.

Call (888) 203-2358

All third-party part numbers and trademarks referenced are the property of their respective owners. References are for compatibility identification only and do not imply affiliation or endorsement.
