QD22L100 Timing Pulley, 22 Teeth, L Pitch


Price:
$ 52.19

Description

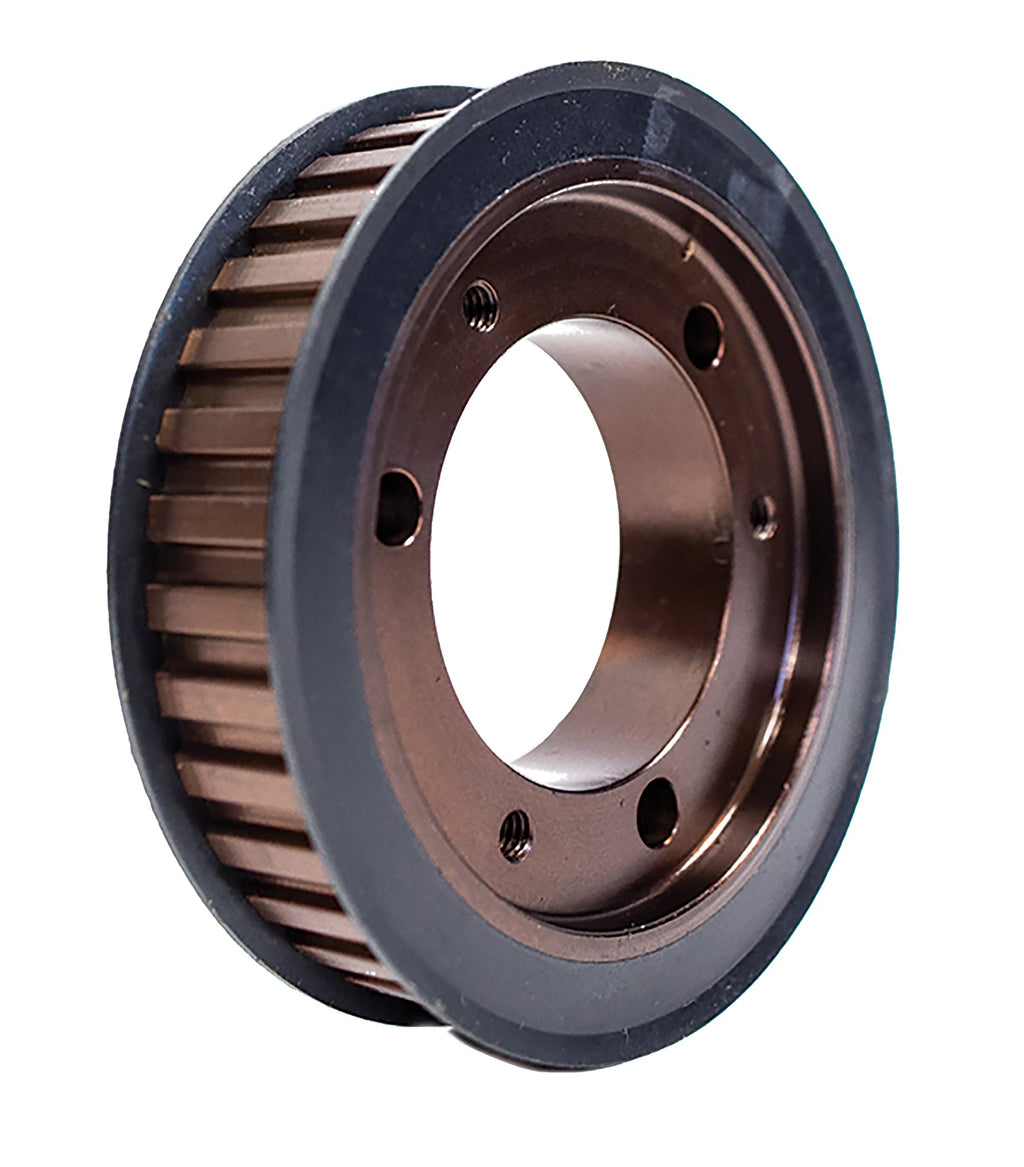

QD22L100 Timing Pulley, 22 Teeth, L Pitch

The QD22L100 is a 22-tooth L (0.375 in trapezoidal) timing pulley. It mounts with an industry-standard bushing, sold separately, machined from steel with a black oxide finish, built for 1 in wide belts. Machined from solid stock, never sintered or powdered metal.

Specifications

Type E1F pulley construction dimension diagram

Dimension key for this construction type. Values for this part number are in the table below.

Specification Value
Part Number QD22L100
Teeth 22
Pitch L (0.375 in trapezoidal)
For Belt Width 1 in
Pitch Diameter 2.6261 in
Outside Diameter 2.5961 in
Flange Diameter 2.875 in
Bore Accepts JA bushing (not included)
Face Width 1.25 in
Overall Length 1.25 in
Construction Quick Disconnect Hub
Flange Material Steel
Material Steel (no sintered or powdered metal)
Finish Black Oxide
Weight 0.994 lb
Country of Origin United States. ISO 9001:2015 certified manufacturing.

Applications

  • Instrumentation, office equipment, and precision positioning drives
  • 3D printers and desktop CNC equipment
  • Robotics, medical devices, and packaging machinery

Belt Compatibility

The QD22L100 runs L (0.375 in trapezoidal) belts in 1 in width. The pitch is standardized, so belt and pulley brands can be mixed.

Cross Reference

The QD22L100 interchanges with these equivalent part numbers, per published manufacturer interchange data:

Manufacturer Equivalent Part Number
Martin 22L100 JA
TB Woods® 22L100
Regal Rexnord (Browning®) 22L100JA
Mitsuboshi QD22L100
Jason Industrial 22L100JA
Neuman 22L100-JA
Ametric 22L100.JA
McMaster-Carr 6495K413
Grainger 809VG0
Powerdrive QD22L100

Always verify dimensions and bore size before substituting part numbers across manufacturers.
