Description

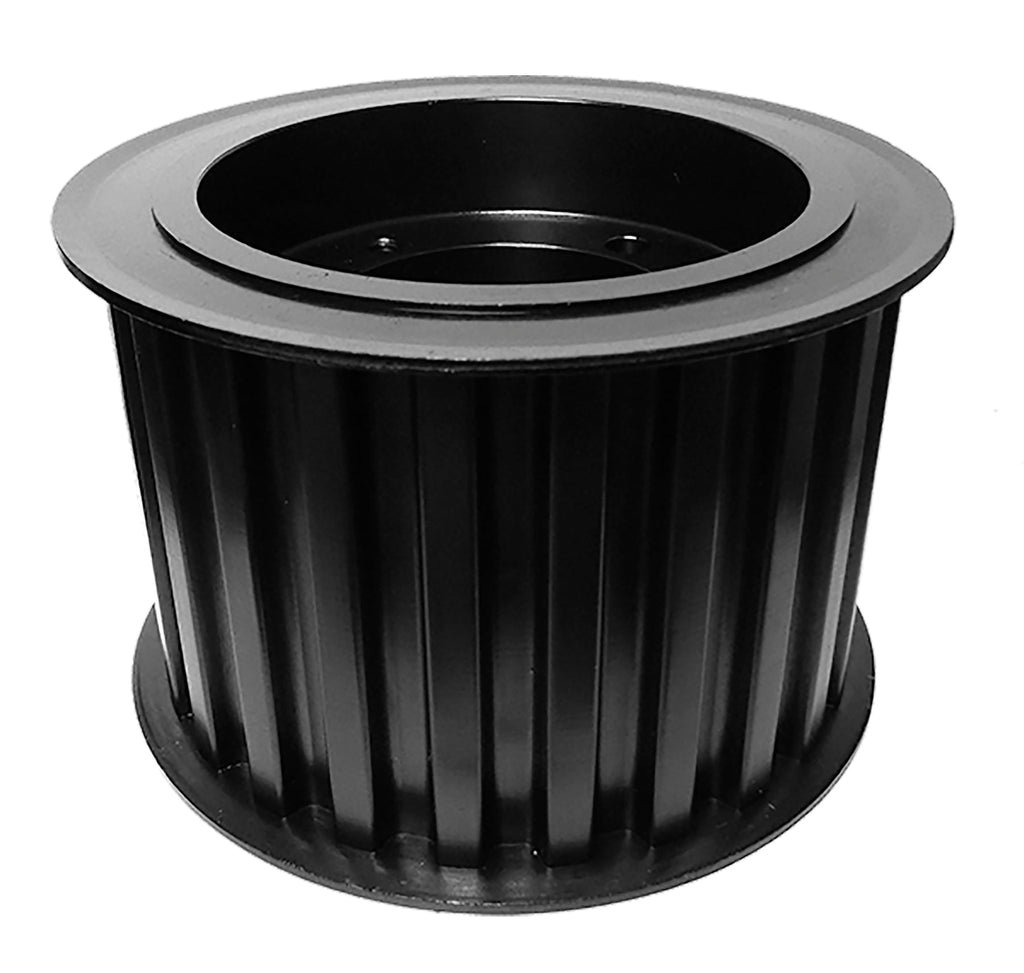

QD22XXH400 Timing Pulley, 22 Teeth, XXH Pitch
The QD22XXH400 is a 22-tooth XXH (1.250 in trapezoidal) timing pulley. It mounts with an industry-standard bushing, sold separately, machined from ductile iron with a black oxide finish, built for 4 in wide belts. Machined from solid stock, never sintered or powdered metal.
Specifications

Dimension key for this construction type. Values for this part number are in the table below.
| Specification | Value |
|---|---|
| Part Number | QD22XXH400 |
| Teeth | 22 |
| Pitch | XXH (1.250 in trapezoidal) |
| For Belt Width | 4 in |
| Pitch Diameter | 8.7535 in |
| Outside Diameter | 8.6335 in |
| Flange Diameter | 9.292 in |
| Bore | Accepts E bushing (not included) |
| Face Width | 4.75 in |
| Overall Length | 4.75 in |
| Construction | Quick Disconnect Hub |
| Flange Material | Steel |
| Material | Ductile Iron (no sintered or powdered metal) |
| Finish | Black Oxide |
| Weight | 32.6 lb |
| Country of Origin | China |
Applications
- Instrumentation, office equipment, and precision positioning drives
- 3D printers and desktop CNC equipment
- Robotics, medical devices, and packaging machinery
Belt Compatibility
The QD22XXH400 runs XXH (1.250 in trapezoidal) belts in 4 in width. The pitch is standardized, so belt and pulley brands can be mixed.
Cross Reference
The QD22XXH400 interchanges with these equivalent part numbers, per published manufacturer interchange data:
| Manufacturer | Equivalent Part Number |
|---|---|
| Martin | 22XXH400 E |
| TB Woods® | 22XXH400 |
| Regal Rexnord (Browning®) | 22XXH400E |
| Jason Industrial | 22XXH400E |
| Ametric | 22 XXH 400 |
| Powerdrive | QD22XXH400 |
| Continental (ContiTech) | 22XXH400-E |
Always verify dimensions and bore size before substituting part numbers across manufacturers.
Buying in bulk? Save on volume.
Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.
Frequently Asked Questions
What belts fit the QD22XXH400 pulley?
XXH (1.250 in trapezoidal) timing belts in 4 in width from any manufacturer. The pitch is standardized, so belt and pulley brands can be mixed.
Does the QD22XXH400 replace the Martin 22XXH400 E?
Yes. Published interchange data crosses the QD22XXH400 directly to the Martin 22XXH400 E, as well as TB Woods 22XXH400, Regal Rexnord 22XXH400E, Jason Industrial 22XXH400E. Verify dimensions and bore before ordering.
Does the QD22XXH400 ship from Houston?
Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.
