QD24-8M-30 Powerhouse® HTD Timing Pulley, 24 Teeth, 8M Pitch


Price:
$ 72.49

Description

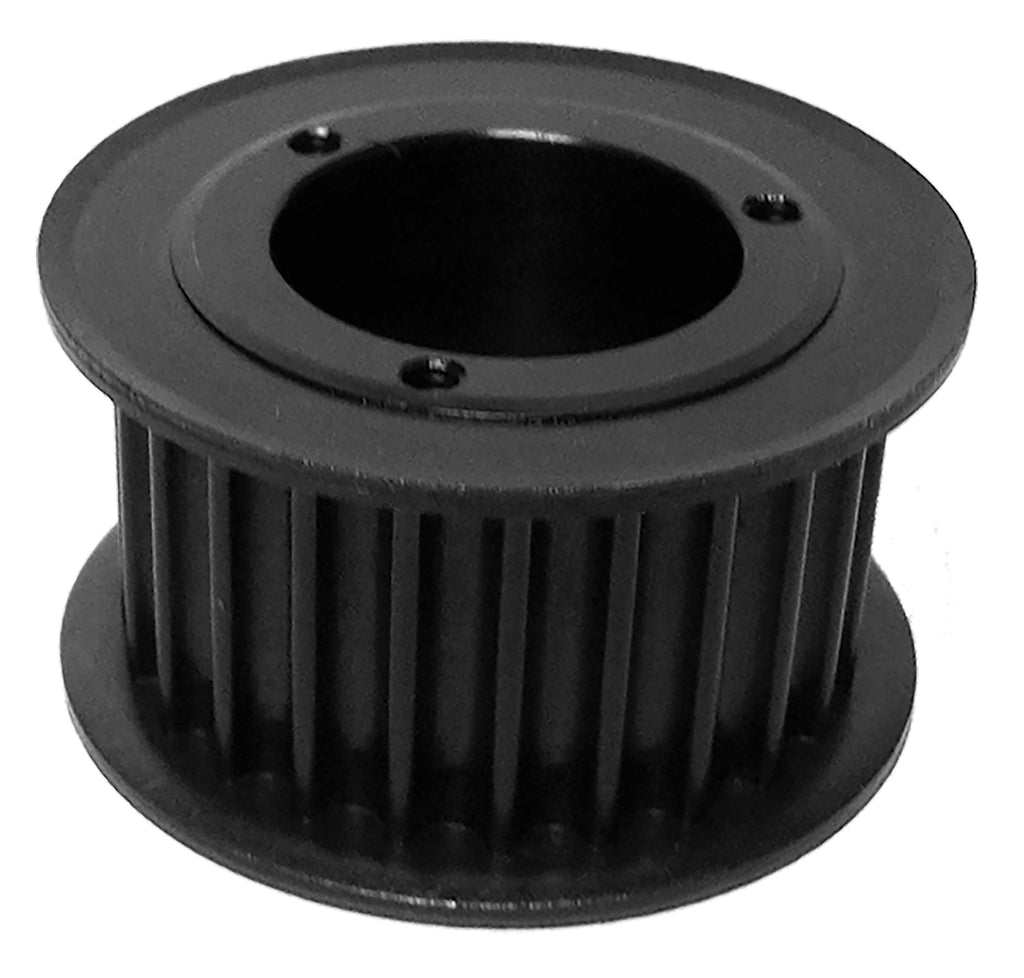

QD24-8M-30 Powerhouse® HTD Timing Pulley, 24 Teeth, 8M Pitch

The QD24-8M-30 is a 24-tooth 8 mm HTD® compatible timing pulley. It mounts with an industry-standard bushing, sold separately, machined from steel with a black oxide finish, built for 3mm wide belts. Machined from solid stock, never sintered or powdered metal. Powerhouse® HTD pulleys fit drives using HTD® curvilinear belts of the same pitch and width.

Specifications

Type E1F pulley construction dimension diagram

Dimension key for this construction type. Values for this part number are in the table below.

Specification Value
Part Number QD24-8M-30
Teeth 24
Pitch 8 mm HTD® compatible
For Belt Width 3mm
Pitch Diameter 2.4061 in
Outside Diameter 2.3541 in
Flange Diameter 2.756 in
Bore Accepts JA bushing (not included)
Face Width 1.5 in
Flange Material Steel
Material Steel (no sintered or powdered metal)
Finish Black Oxide
Weight 1.1 lb
Country of Origin United States. ISO 9001:2015 certified manufacturing.

Applications

  • HTD curvilinear belt drives on industrial equipment
  • Conveyors, packaging, and warehouse automation
  • Replacing worn pulleys on existing HTD drives

Belt Compatibility

The QD24-8M-30 runs 8 mm HTD® compatible belts in 3mm width. The pitch is standardized, so belt and pulley brands can be mixed.

Cross Reference

The QD24-8M-30 interchanges with these equivalent part numbers, per published manufacturer interchange data:

Manufacturer Equivalent Part Number
Dodge® P24-8M-30-JA
Martin P248M30-JA
TB Woods® P248M30
Regal Rexnord (Browning®) B2483M30JA
Mitsuboshi QD24-8M-30
Grainger 809R20
Grainger 3PED1
Powerdrive QD24-8M-30
Continental (ContiTech) P24-8M-30-JA

Always verify dimensions and bore size before substituting part numbers across manufacturers.

Buying in bulk? Save on volume.

Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.

Frequently Asked Questions

What belts fit the QD24-8M-30 pulley?

8 mm HTD® compatible timing belts in 3mm width from any manufacturer. The pitch is standardized, so belt and pulley brands can be mixed.

Does the QD24-8M-30 replace the Dodge P24-8M-30-JA?

Yes. Published interchange data crosses the QD24-8M-30 directly to the Dodge P24-8M-30-JA, as well as Martin P248M30-JA, TB Woods P248M30, Regal Rexnord B2483M30JA. Verify dimensions and bore before ordering.

Does the QD24-8M-30 ship from Houston?

Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.

Need a quote on QD24-8M-30?

Houston warehouse, same-day shipping on stock items.

Call (888) 203-2358

Powerhouse® is a registered trademark of its owner. HTD® is a registered trademark of Gates Corporation. All third-party part numbers and trademarks referenced are the property of their respective owners. References are for compatibility identification only and do not imply affiliation or endorsement.
