QD24XH200 Timing Pulley, 24 Teeth, XH Pitch


Price:
$ 281.31

Description

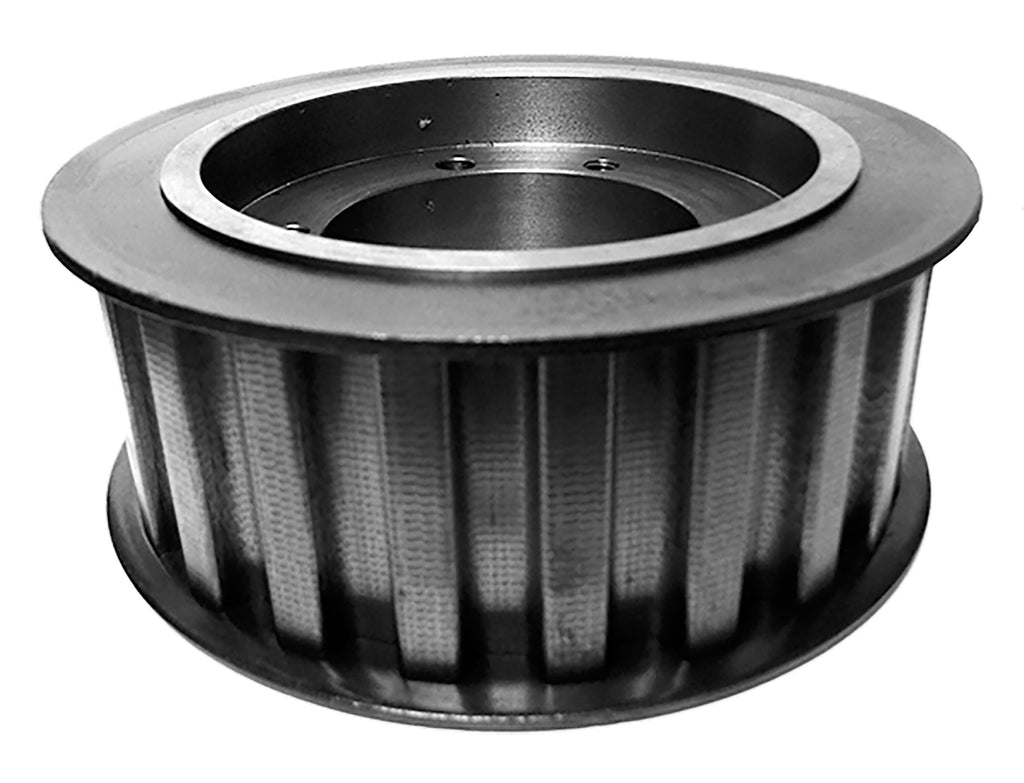

QD24XH200 Timing Pulley, 24 Teeth, XH Pitch

The QD24XH200 is a 24-tooth XH (0.875 in trapezoidal) timing pulley. It mounts with an industry-standard bushing, sold separately, machined from ductile iron with a black oxide finish, built for 2 in wide belts. Machined from solid stock, never sintered or powdered metal.

Specifications

Type D1F pulley construction dimension diagram

Dimension key for this construction type. Values for this part number are in the table below.

Specification Value
Part Number QD24XH200
Teeth 24
Pitch XH (0.875 in trapezoidal)
For Belt Width 2 in
Pitch Diameter 6.6845 in
Outside Diameter 6.5745 in
Flange Diameter 7.25 in
Bore Accepts SF bushing (not included)
Face Width 2.563 in
Overall Length 2.781 in
Construction Quick Disconnect Hub
Flange Material Steel
Material Ductile Iron (no sintered or powdered metal)
Finish Black Oxide
Weight 12.136 lb
Country of Origin United States. ISO 9001:2015 certified manufacturing.

Applications

  • Instrumentation, office equipment, and precision positioning drives
  • 3D printers and desktop CNC equipment
  • Robotics, medical devices, and packaging machinery

Belt Compatibility

The QD24XH200 runs XH (0.875 in trapezoidal) belts in 2 in width. The pitch is standardized, so belt and pulley brands can be mixed.

Cross Reference

The QD24XH200 interchanges with these equivalent part numbers, per published manufacturer interchange data:

Manufacturer Equivalent Part Number
Martin 24XH200 SF
TB Woods® 24XH200
Regal Rexnord (Browning®) 24XH200SF
Jason Industrial 24XH200SF
Ametric 24 XH 200
Powerdrive QD24XH200
Continental (ContiTech) 24XH200-SF

Always verify dimensions and bore size before substituting part numbers across manufacturers.
