Description

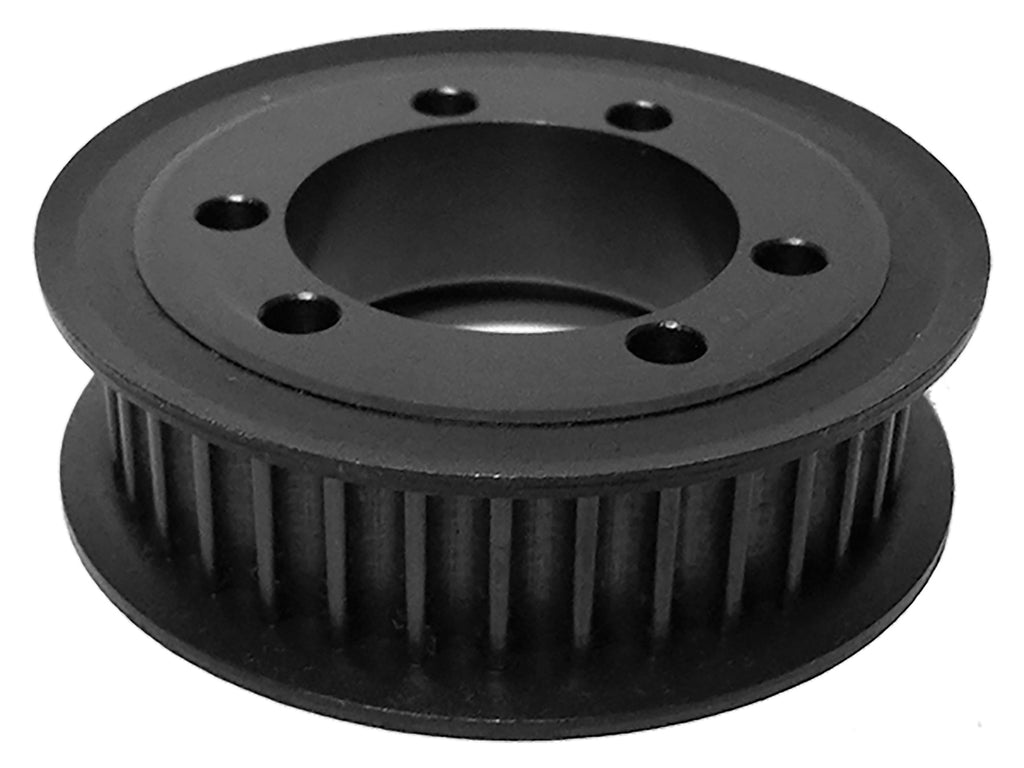

QD26-8M-20 Powerhouse® HTD Timing Pulley, 26 Teeth, 8M Pitch
The QD26-8M-20 is a 26-tooth 8 mm HTD® compatible timing pulley. It mounts with an industry-standard bushing, sold separately, machined from steel with a black oxide finish, built for 2mm wide belts. Machined from solid stock, never sintered or powdered metal. Powerhouse® HTD pulleys fit drives using HTD® curvilinear belts of the same pitch and width.
Specifications

Dimension key for this construction type. Values for this part number are in the table below.
| Specification | Value |
|---|---|
| Part Number | QD26-8M-20 |
| Teeth | 26 |
| Pitch | 8 mm HTD® compatible |
| For Belt Width | 2mm |
| Pitch Diameter | 2.6066 in |
| Outside Diameter | 2.5546 in |
| Flange Diameter | 2.953 in |
| Bore | Accepts JA bushing (not included) |
| Face Width | 1.125 in |
| Overall Length | 1.125 in |
| Construction | Quick Disconnect Hub |
| Flange Material | Steel |
| Material | Steel (no sintered or powdered metal) |
| Finish | Black Oxide |
| Weight | 1.1 lb |
| Country of Origin | United States. ISO 9001:2015 certified manufacturing. |
Applications
- HTD curvilinear belt drives on industrial equipment
- Conveyors, packaging, and warehouse automation
- Replacing worn pulleys on existing HTD drives
Belt Compatibility
The QD26-8M-20 runs 8 mm HTD® compatible belts in 2mm width. The pitch is standardized, so belt and pulley brands can be mixed.
Cross Reference
The QD26-8M-20 interchanges with these equivalent part numbers, per published manufacturer interchange data:
| Manufacturer | Equivalent Part Number |
|---|---|
| Dodge® | P26-8M-20-JA |
| Martin | P268M20-JA |
| TB Woods® | P268M20 |
| Regal Rexnord (Browning®) | B268M20JA |
| Mitsuboshi | QD26-8M-20 |
| Jason Industrial | P268M20JA |
| Masterdrive | P26-8M-20-JA |
| McMaster-Carr | 6497K113 |
| Grainger | 809R21 |
| Powerdrive | QD26-8M-20 |
Always verify dimensions and bore size before substituting part numbers across manufacturers.
Buying in bulk? Save on volume.
Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.
Frequently Asked Questions
What belts fit the QD26-8M-20 pulley?
8 mm HTD® compatible timing belts in 2mm width from any manufacturer. The pitch is standardized, so belt and pulley brands can be mixed.
Does the QD26-8M-20 replace the Dodge P26-8M-20-JA?
Yes. Published interchange data crosses the QD26-8M-20 directly to the Dodge P26-8M-20-JA, as well as Martin P268M20-JA, TB Woods P268M20, Regal Rexnord B268M20JA. Verify dimensions and bore before ordering.
Does the QD26-8M-20 ship from Houston?
Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.
