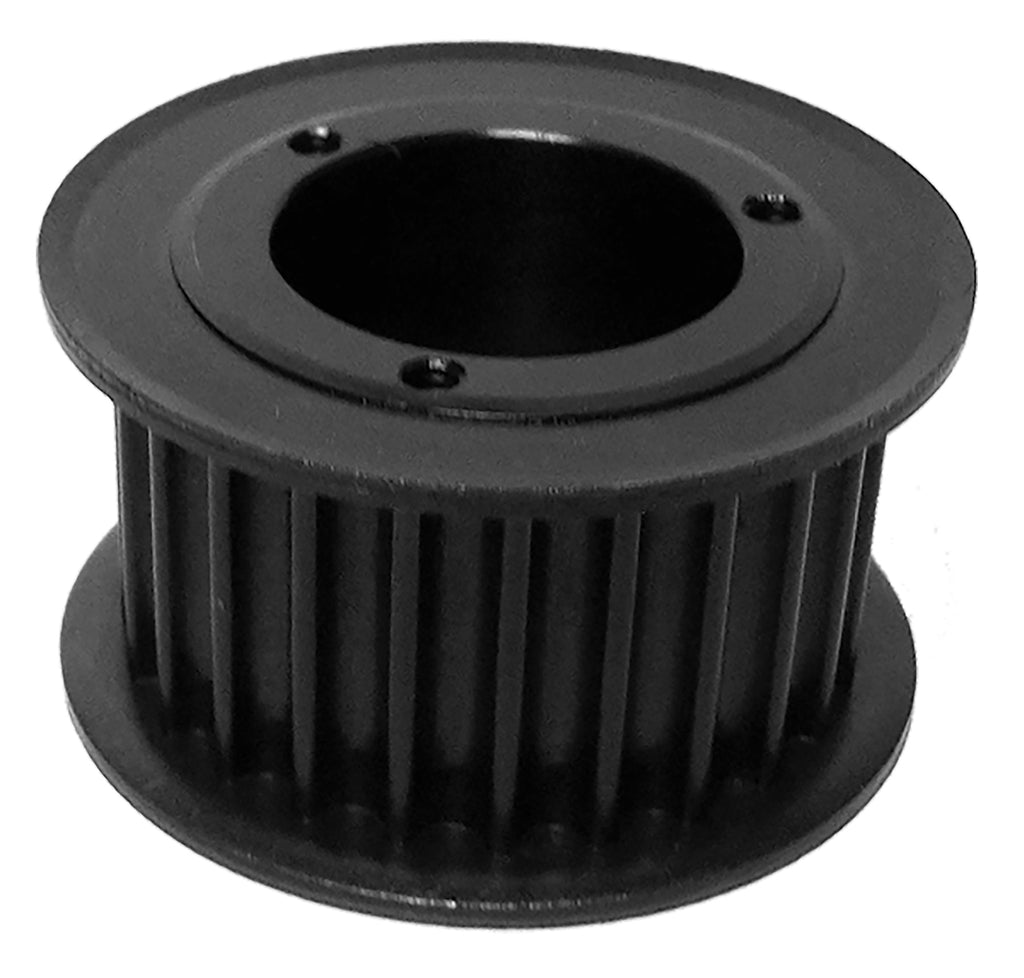

QD26-8M-30 Powerhouse® HTD Timing Pulley, 26 Teeth, 8M Pitch


Price:
$ 72.49

Description

QD26-8M-30 Powerhouse® HTD Timing Pulley, 26 Teeth, 8M Pitch

The QD26-8M-30 is a 26-tooth 8 mm HTD® compatible timing pulley. It mounts with an industry-standard bushing, sold separately, machined from steel with a black oxide finish, built for 3mm wide belts. Machined from solid stock, never sintered or powdered metal. Powerhouse® HTD pulleys fit drives using HTD® curvilinear belts of the same pitch and width.

Specifications

Type E1F pulley construction dimension diagram

Dimension key for this construction type. Values for this part number are in the table below.

Specification Value
Part Number QD26-8M-30
Teeth 26
Pitch 8 mm HTD® compatible
For Belt Width 3mm
Pitch Diameter 2.6066 in
Outside Diameter 2.5546 in
Flange Diameter 2.953 in
Bore Accepts JA bushing (not included)
Flange Material Steel
Material Steel (no sintered or powdered metal)
Finish Black Oxide
Weight 1.4 lb
Country of Origin China

Applications

  • HTD curvilinear belt drives on industrial equipment
  • Conveyors, packaging, and warehouse automation
  • Replacing worn pulleys on existing HTD drives

Belt Compatibility

The QD26-8M-30 runs 8 mm HTD® compatible belts in 3mm width. The pitch is standardized, so belt and pulley brands can be mixed.

Cross Reference

The QD26-8M-30 interchanges with these equivalent part numbers, per published manufacturer interchange data:

Manufacturer Equivalent Part Number
Dodge® P26-8M-30-JA
Martin P268M30-JA
TB Woods® P268M30
Regal Rexnord (Browning®) B268M30JA
Mitsuboshi QD26-8M-30
Powerdrive QD26-8M-30
Continental (ContiTech) P26-8M-30-JA

Always verify dimensions and bore size before substituting part numbers across manufacturers.

Buying in bulk? Save on volume.

Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.

Frequently Asked Questions

What belts fit the QD26-8M-30 pulley?

8 mm HTD® compatible timing belts in 3mm width from any manufacturer. The pitch is standardized, so belt and pulley brands can be mixed.

Does the QD26-8M-30 replace the Dodge P26-8M-30-JA?

Yes. Published interchange data crosses the QD26-8M-30 directly to the Dodge P26-8M-30-JA, as well as Martin P268M30-JA, TB Woods P268M30, Regal Rexnord B268M30JA. Verify dimensions and bore before ordering.

Does the QD26-8M-30 ship from Houston?

Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.

Need a quote on QD26-8M-30?

Houston warehouse, same-day shipping on stock items.

Call (888) 203-2358

Powerhouse® is a registered trademark of its owner. HTD® is a registered trademark of Gates Corporation. All third-party part numbers and trademarks referenced are the property of their respective owners. References are for compatibility identification only and do not imply affiliation or endorsement.
