QD26XXH200 Timing Pulley, 26 Teeth, XXH Pitch


Price:
$ 486.74

Description

QD26XXH200 Timing Pulley, 26 Teeth, XXH Pitch

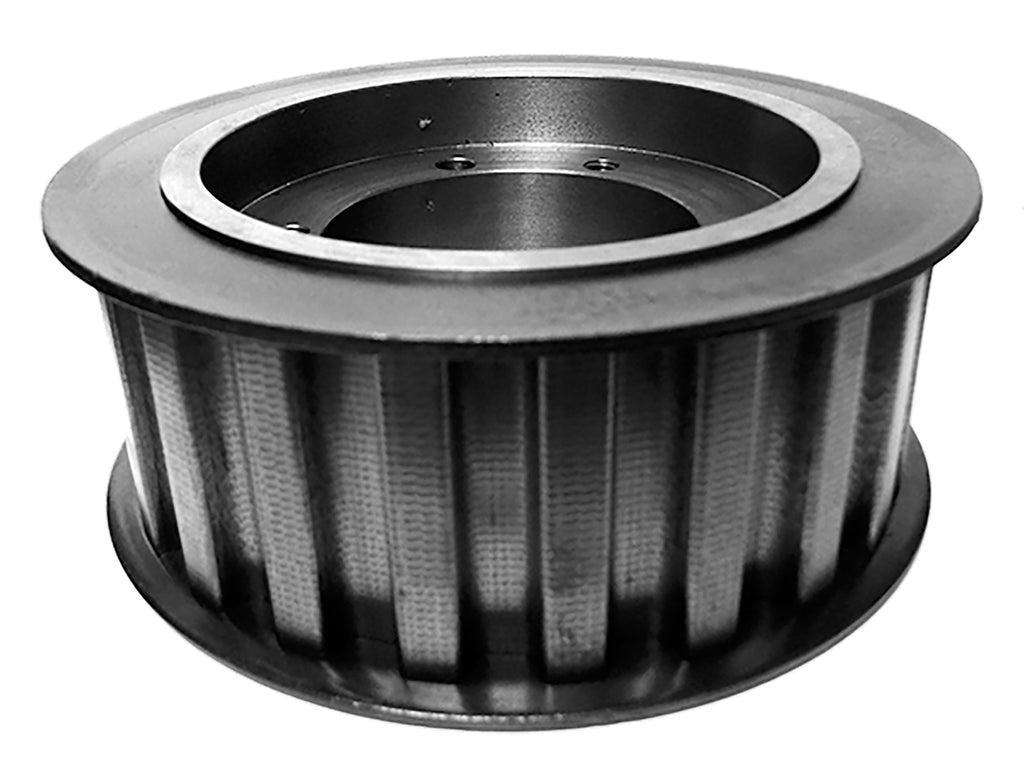

The QD26XXH200 is a 26-tooth XXH (1.250 in trapezoidal) timing pulley. It mounts with an industry-standard bushing, sold separately, machined from cast iron with a black oxide finish, built for 2 in wide belts. Machined from solid stock, never sintered or powdered metal.

Specifications

Type D2F pulley construction dimension diagram

Dimension key for this construction type. Values for this part number are in the table below.

Specification Value
Part Number QD26XXH200
Teeth 26
Pitch XXH (1.250 in trapezoidal)
For Belt Width 2 in
Pitch Diameter 10.3451 in
Outside Diameter 10.2251 in
Flange Diameter 11.063 in
Bore Accepts E bushing (not included)
Face Width 2.563 in
Overall Length 2.563 in
Construction Quick Disconnect Hub
Flange Material Steel
Material Cast Iron (no sintered or powdered metal)
Finish Black Oxide
Weight 32 lb
Country of Origin China

Applications

  • Instrumentation, office equipment, and precision positioning drives
  • 3D printers and desktop CNC equipment
  • Robotics, medical devices, and packaging machinery

Belt Compatibility

The QD26XXH200 runs XXH (1.250 in trapezoidal) belts in 2 in width. The pitch is standardized, so belt and pulley brands can be mixed.

Cross Reference

The QD26XXH200 interchanges with these equivalent part numbers, per published manufacturer interchange data:

Manufacturer Equivalent Part Number
Martin 26XXH200 E
TB Woods® 26XXH200
Regal Rexnord (Browning®) 26XXH200E
Jason Industrial 26XXH200E
Ametric 26 XXH 200
Powerdrive QD26XXH200
Continental (ContiTech) 26XXH200-E

Always verify dimensions and bore size before substituting part numbers across manufacturers.

Buying in bulk? Save on volume.

Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.

Frequently Asked Questions

What belts fit the QD26XXH200 pulley?

XXH (1.250 in trapezoidal) timing belts in 2 in width from any manufacturer. The pitch is standardized, so belt and pulley brands can be mixed.

Does the QD26XXH200 replace the Martin 26XXH200 E?

Yes. Published interchange data crosses the QD26XXH200 directly to the Martin 26XXH200 E, as well as TB Woods 26XXH200, Regal Rexnord 26XXH200E, Jason Industrial 26XXH200E. Verify dimensions and bore before ordering.

Does the QD26XXH200 ship from Houston?

Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.

Need a quote on QD26XXH200?

Houston warehouse, same-day shipping on stock items.

Call (888) 203-2358

All third-party part numbers and trademarks referenced are the property of their respective owners. References are for compatibility identification only and do not imply affiliation or endorsement.
