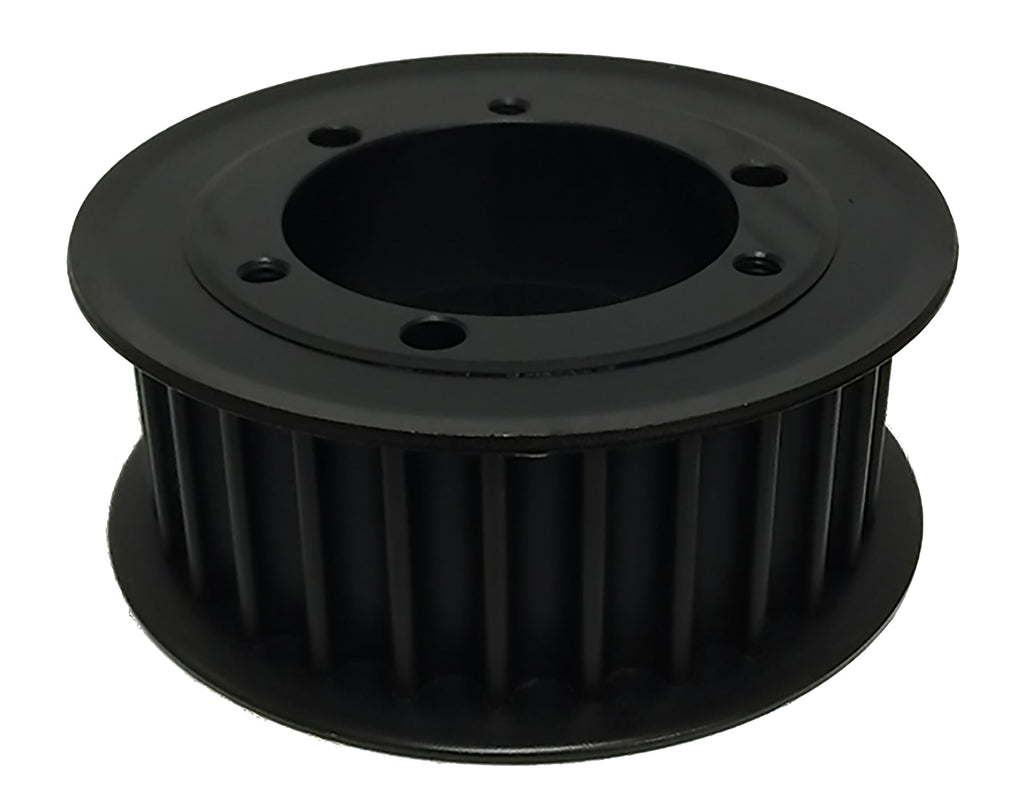

QD29-14M-40 Powerhouse® HTD Timing Pulley, 29 Teeth, 14M Pitch


Price:
$ 113.68

Description

QD29-14M-40 Powerhouse® HTD Timing Pulley, 29 Teeth, 14M Pitch

The QD29-14M-40 is a 29-tooth 14 mm HTD® compatible timing pulley. It mounts with an industry-standard bushing, sold separately, machined from ductile iron with a black oxide finish, built for 4mm wide belts. Machined from solid stock, never sintered or powdered metal. Powerhouse® HTD pulleys fit drives using HTD® curvilinear belts of the same pitch and width.

Specifications

Type E1F pulley construction dimension diagram

Dimension key for this construction type. Values for this part number are in the table below.

Specification Value
Part Number QD29-14M-40
Teeth 29
Pitch 14 mm HTD® compatible
For Belt Width 4mm
Pitch Diameter 5.0879 in
Outside Diameter 4.9779 in
Flange Diameter 5.56 in
Bore Accepts SK bushing (not included)
Face Width 2.125 in
Overall Length 2.125 in
Construction Quick Disconnect Hub
Flange Material Steel
Material Ductile Iron (no sintered or powdered metal)
Finish Black Oxide
Weight 5.25 lb
Country of Origin China

Applications

  • HTD curvilinear belt drives on industrial equipment
  • Conveyors, packaging, and warehouse automation
  • Replacing worn pulleys on existing HTD drives

Belt Compatibility

The QD29-14M-40 runs 14 mm HTD® compatible belts in 4mm width. The pitch is standardized, so belt and pulley brands can be mixed.

Cross Reference

The QD29-14M-40 interchanges with these equivalent part numbers, per published manufacturer interchange data:

Manufacturer Equivalent Part Number
Dodge® P29-14M-40-SK
Martin P2914M40-SK
US Tsubaki PT29P14M40AF
TB Woods® P2914M40
Regal Rexnord (Browning®) B2914M40SK
Masterdrive P29-14M-40-SK
Ametric 14M29QD85.SK
Grainger 809R26
Powerdrive QD29-14M-40
Continental (ContiTech) P29-14M-40-SK

Always verify dimensions and bore size before substituting part numbers across manufacturers.

Buying in bulk? Save on volume.

Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.

Frequently Asked Questions

What belts fit the QD29-14M-40 pulley?

14 mm HTD® compatible timing belts in 4mm width from any manufacturer. The pitch is standardized, so belt and pulley brands can be mixed.

Does the QD29-14M-40 replace the Dodge P29-14M-40-SK?

Yes. Published interchange data crosses the QD29-14M-40 directly to the Dodge P29-14M-40-SK, as well as Martin P2914M40-SK, US Tsubaki PT29P14M40AF, TB Woods P2914M40. Verify dimensions and bore before ordering.

Does the QD29-14M-40 ship from Houston?

Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.

Need a quote on QD29-14M-40?

Houston warehouse, same-day shipping on stock items.

Call (888) 203-2358

Powerhouse® is a registered trademark of its owner. HTD® is a registered trademark of Gates Corporation. All third-party part numbers and trademarks referenced are the property of their respective owners. References are for compatibility identification only and do not imply affiliation or endorsement.
