QD32-14M-115 Powerhouse® HTD Timing Pulley, 32 Teeth, 14M Pitch


Price:
$ 214.32

Description

QD32-14M-115 Powerhouse® HTD Timing Pulley, 32 Teeth, 14M Pitch

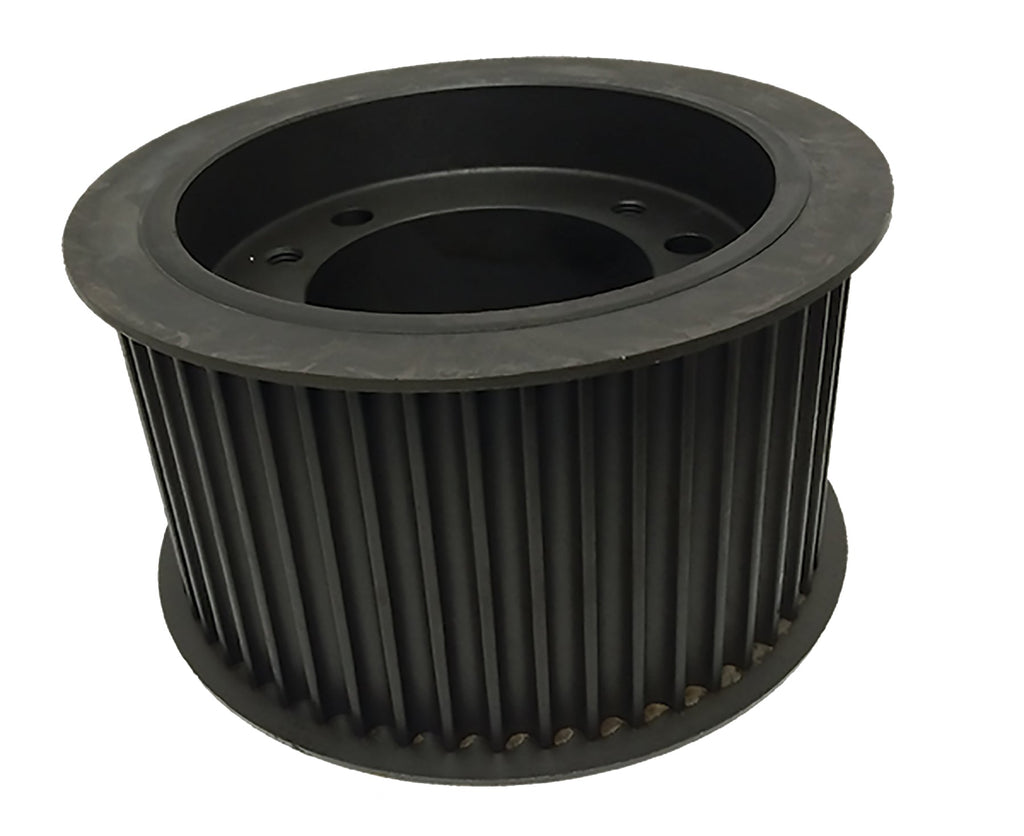

The QD32-14M-115 is a 32-tooth 14 mm HTD® compatible timing pulley. It mounts with an industry-standard bushing, sold separately, machined from cast iron with a black oxide finish, built for 115mm wide belts. Machined from solid stock, never sintered or powdered metal. Powerhouse® HTD pulleys fit drives using HTD® curvilinear belts of the same pitch and width.

Specifications

Type A1F pulley construction dimension diagram

Dimension key for this construction type. Values for this part number are in the table below.

Specification Value
Part Number QD32-14M-115
Teeth 32
Pitch 14 mm HTD® compatible
For Belt Width 115mm
Pitch Diameter 5.6143 in
Outside Diameter 5.5043 in
Flange Diameter 6.13 in
Bore Accepts SK bushing (not included)
Face Width 5.25 in
Overall Length 5.25 in
Construction Quick Disconnect Hub
Flange Material Steel
Material Cast Iron (no sintered or powdered metal)
Finish Black Oxide
Weight 14.85 lb
Country of Origin China

Applications

  • HTD curvilinear belt drives on industrial equipment
  • Conveyors, packaging, and warehouse automation
  • Replacing worn pulleys on existing HTD drives

Belt Compatibility

The QD32-14M-115 runs 14 mm HTD® compatible belts in 115mm width. The pitch is standardized, so belt and pulley brands can be mixed.

Cross Reference

The QD32-14M-115 interchanges with these equivalent part numbers, per published manufacturer interchange data:

Manufacturer Equivalent Part Number
Dodge® P32-14M-115-SK
Martin P3214M115-SK
TB Woods® P3214M115
Regal Rexnord (Browning®) B3214M115SK
Masterdrive P32-14M-115-SK
Ametric 14M32QD115.SK
Powerdrive QD32-14M-115
Continental (ContiTech) P32-14M-115-SK

Always verify dimensions and bore size before substituting part numbers across manufacturers.

Buying in bulk? Save on volume.

Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.

Frequently Asked Questions

What belts fit the QD32-14M-115 pulley?

14 mm HTD® compatible timing belts in 115mm width from any manufacturer. The pitch is standardized, so belt and pulley brands can be mixed.

Does the QD32-14M-115 replace the Dodge P32-14M-115-SK?

Yes. Published interchange data crosses the QD32-14M-115 directly to the Dodge P32-14M-115-SK, as well as Martin P3214M115-SK, TB Woods P3214M115, Regal Rexnord B3214M115SK. Verify dimensions and bore before ordering.

Does the QD32-14M-115 ship from Houston?

Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.

Need a quote on QD32-14M-115?

Houston warehouse, same-day shipping on stock items.

Call (888) 203-2358

Powerhouse® is a registered trademark of its owner. HTD® is a registered trademark of Gates Corporation. All third-party part numbers and trademarks referenced are the property of their respective owners. References are for compatibility identification only and do not imply affiliation or endorsement.
