QD32XH200 Timing Pulley, 32 Teeth, XH Pitch


Price:
$ 555.40

Description

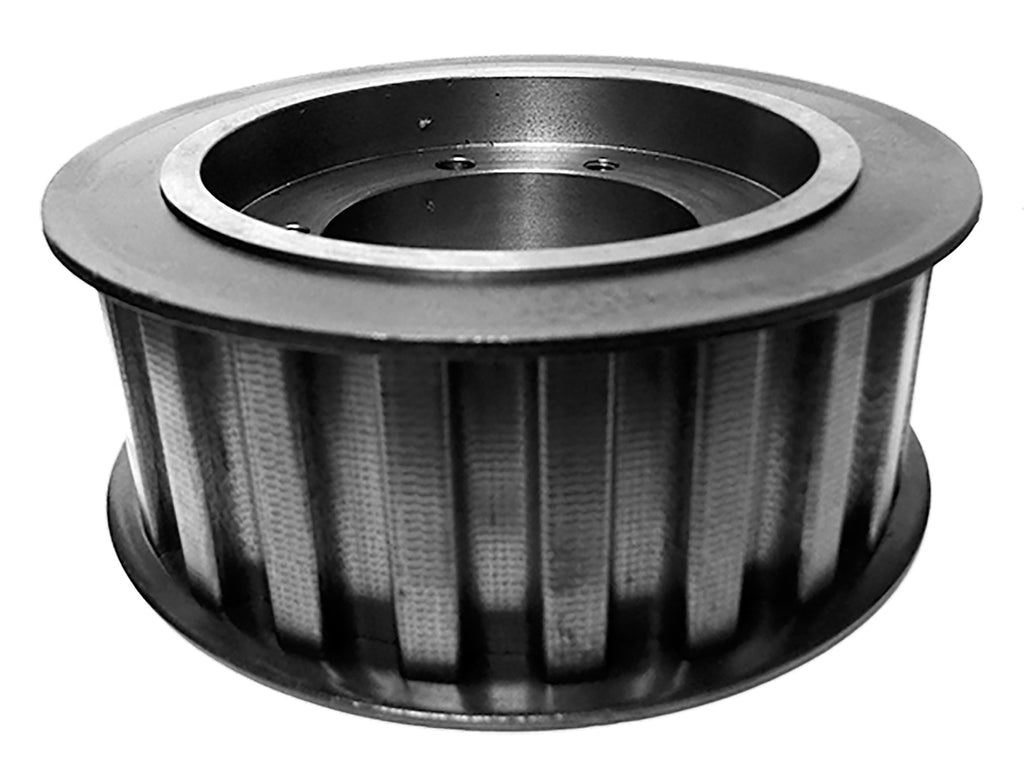

QD32XH200 Timing Pulley, 32 Teeth, XH Pitch

The QD32XH200 is a 32-tooth XH (0.875 in trapezoidal) timing pulley. It mounts with an industry-standard bushing, sold separately, machined from steel with a black oxide finish, built for 2 in wide belts. Machined from solid stock, never sintered or powdered metal.

Specifications

Type D1F pulley construction dimension diagram

Dimension key for this construction type. Values for this part number are in the table below.

Specification Value
Part Number QD32XH200
Teeth 32
Pitch XH (0.875 in trapezoidal)
For Belt Width 2 in
Pitch Diameter 8.9127 in
Outside Diameter 8.8027 in
Flange Diameter 9.438 in
Bore Accepts E bushing (not included)
Face Width 2.563 in
Overall Length 3.156 in
Construction Quick Disconnect Hub
Flange Material Steel
Material Steel (no sintered or powdered metal)
Finish Black Oxide
Weight 23.314 lb
Country of Origin China

Applications

  • Instrumentation, office equipment, and precision positioning drives
  • 3D printers and desktop CNC equipment
  • Robotics, medical devices, and packaging machinery

Belt Compatibility

The QD32XH200 runs XH (0.875 in trapezoidal) belts in 2 in width. The pitch is standardized, so belt and pulley brands can be mixed.

Cross Reference

The QD32XH200 interchanges with these equivalent part numbers, per published manufacturer interchange data:

Manufacturer Equivalent Part Number
Martin 32XH200 E
TB Woods® 32XH200
Regal Rexnord (Browning®) 32XH200E
Jason Industrial 32XH200E
Ametric 32 XH 200
Powerdrive QD32XH200
Continental (ContiTech) 32XH200-E

Always verify dimensions and bore size before substituting part numbers across manufacturers.

Buying in bulk? Save on volume.

Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.

Frequently Asked Questions

What belts fit the QD32XH200 pulley?

XH (0.875 in trapezoidal) timing belts in 2 in width from any manufacturer. The pitch is standardized, so belt and pulley brands can be mixed.

Does the QD32XH200 replace the Martin 32XH200 E?

Yes. Published interchange data crosses the QD32XH200 directly to the Martin 32XH200 E, as well as TB Woods 32XH200, Regal Rexnord 32XH200E, Jason Industrial 32XH200E. Verify dimensions and bore before ordering.

Does the QD32XH200 ship from Houston?

Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.

Need a quote on QD32XH200?

Houston warehouse, same-day shipping on stock items.

Call (888) 203-2358

All third-party part numbers and trademarks referenced are the property of their respective owners. References are for compatibility identification only and do not imply affiliation or endorsement.
