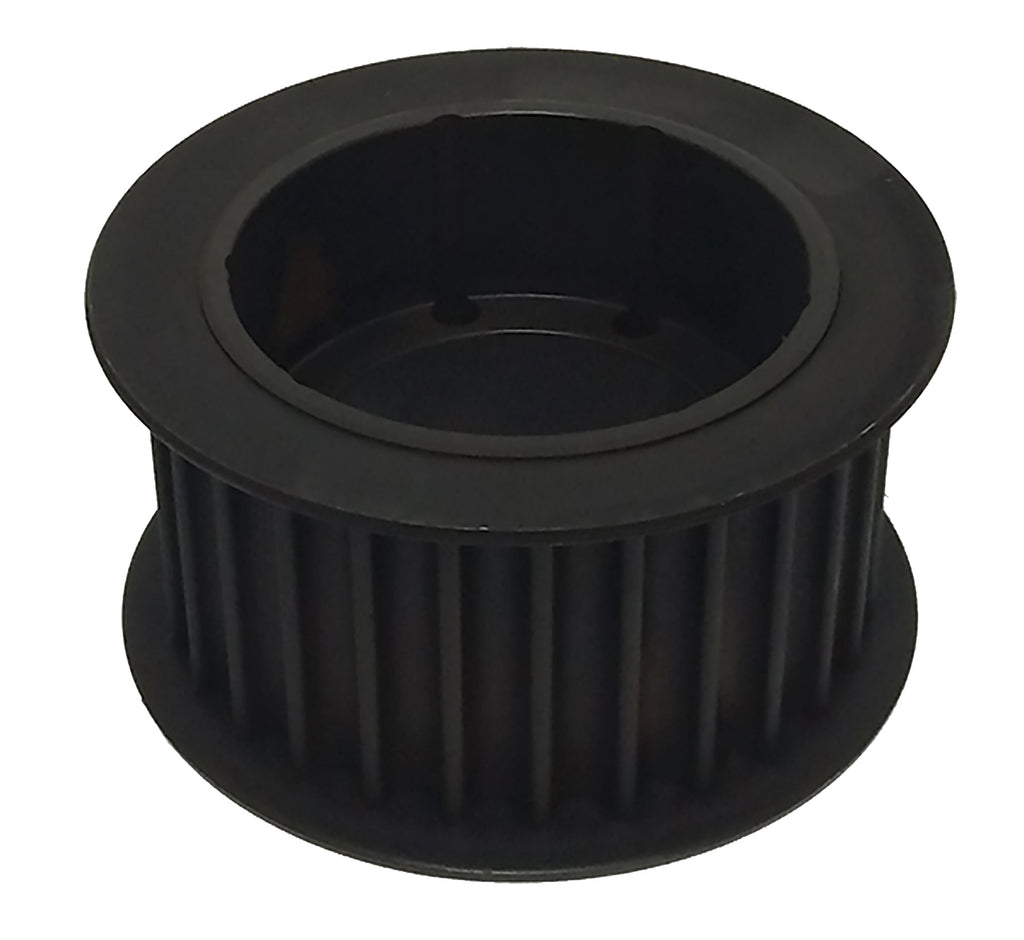

QD33-14M-55 Powerhouse® HTD Timing Pulley, 33 Teeth, 14M Pitch


Price:
$ 145.78

Description

QD33-14M-55 Powerhouse® HTD Timing Pulley, 33 Teeth, 14M Pitch

The QD33-14M-55 is a 33-tooth 14 mm HTD® compatible timing pulley. It mounts with an industry-standard bushing, sold separately, machined from ductile iron with a black oxide finish, built for 55mm wide belts. Machined from solid stock, never sintered or powdered metal. Powerhouse® HTD pulleys fit drives using HTD® curvilinear belts of the same pitch and width.

Specifications

Type A1F pulley construction dimension diagram

Dimension key for this construction type. Values for this part number are in the table below.

Specification Value
Part Number QD33-14M-55
Teeth 33
Pitch 14 mm HTD® compatible
For Belt Width 55mm
Pitch Diameter 5.7897 in
Outside Diameter 5.6797 in
Flange Diameter 6.465 in
Bore Accepts SK bushing (not included)
Face Width 2.75 in
Overall Length 2.75 in
Flange Material Steel
Material Ductile Iron (no sintered or powdered metal)
Finish Black Oxide
Weight 8.949 lb
Country of Origin United States. ISO 9001:2015 certified manufacturing.

Applications

  • HTD curvilinear belt drives on industrial equipment
  • Conveyors, packaging, and warehouse automation
  • Replacing worn pulleys on existing HTD drives

Belt Compatibility

The QD33-14M-55 runs 14 mm HTD® compatible belts in 55mm width. The pitch is standardized, so belt and pulley brands can be mixed.

Cross Reference

The QD33-14M-55 interchanges with these equivalent part numbers, per published manufacturer interchange data:

Manufacturer Equivalent Part Number
Regal Rexnord (Browning®) B3314M55SK
Powerdrive QD33-14M-55

Always verify dimensions and bore size before substituting part numbers across manufacturers.

Buying in bulk? Save on volume.

Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.

Frequently Asked Questions

What belts fit the QD33-14M-55 pulley?

14 mm HTD® compatible timing belts in 55mm width from any manufacturer. The pitch is standardized, so belt and pulley brands can be mixed.

Does the QD33-14M-55 replace the Regal Rexnord B3314M55SK?

Yes. Published interchange data crosses the QD33-14M-55 directly to the Regal Rexnord B3314M55SK, as well as Powerdrive QD33-14M-55. Verify dimensions and bore before ordering.

Does the QD33-14M-55 ship from Houston?

Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.

Need a quote on QD33-14M-55?

Houston warehouse, same-day shipping on stock items.

Call (888) 203-2358

Powerhouse® is a registered trademark of its owner. HTD® is a registered trademark of Gates Corporation. All third-party part numbers and trademarks referenced are the property of their respective owners. References are for compatibility identification only and do not imply affiliation or endorsement.
