QD34-14M-115 Powerhouse® HTD Timing Pulley, 34 Teeth, 14M Pitch


Price:
$ 228.02

Description

QD34-14M-115 Powerhouse® HTD Timing Pulley, 34 Teeth, 14M Pitch

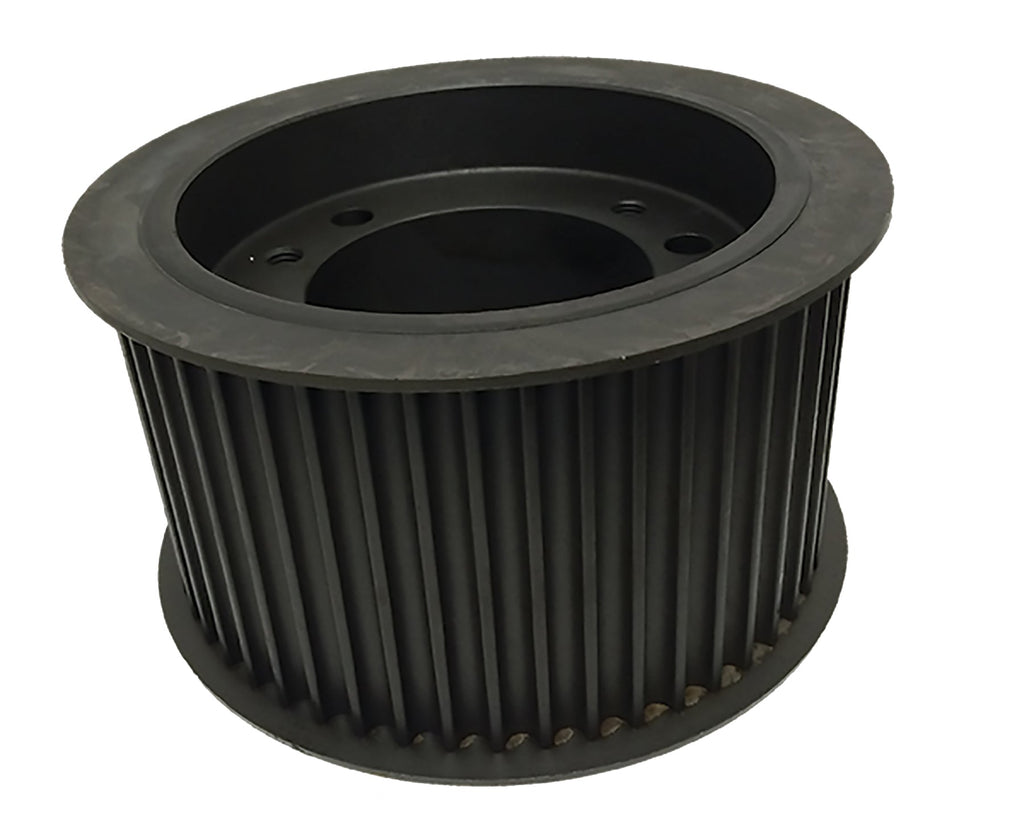

The QD34-14M-115 is a 34-tooth 14 mm HTD® compatible timing pulley. It mounts with an industry-standard bushing, sold separately, machined from cast iron with a black oxide finish, built for 115mm wide belts. Machined from solid stock, never sintered or powdered metal. Powerhouse® HTD pulleys fit drives using HTD® curvilinear belts of the same pitch and width.

Specifications

Type A1F pulley construction dimension diagram

Dimension key for this construction type. Values for this part number are in the table below.

Specification Value
Part Number QD34-14M-115
Teeth 34
Pitch 14 mm HTD® compatible
For Belt Width 115mm
Pitch Diameter 5.9652 in
Outside Diameter 5.8552 in
Flange Diameter 6.5 in
Bore Accepts SK bushing (not included)
Face Width 5.25 in
Overall Length 5.25 in
Construction Quick Disconnect Hub
Flange Material Steel
Material Cast Iron (no sintered or powdered metal)
Finish Black Oxide
Weight 17 lb
Country of Origin China

Applications

  • HTD curvilinear belt drives on industrial equipment
  • Conveyors, packaging, and warehouse automation
  • Replacing worn pulleys on existing HTD drives

Belt Compatibility

The QD34-14M-115 runs 14 mm HTD® compatible belts in 115mm width. The pitch is standardized, so belt and pulley brands can be mixed.

Cross Reference

The QD34-14M-115 interchanges with these equivalent part numbers, per published manufacturer interchange data:

Manufacturer Equivalent Part Number
Dodge® P34-14M-115-SK
Martin P3414M115-SK
TB Woods® P3414M115
Regal Rexnord (Browning®) B3414M115SK
Masterdrive P34-14M-115-SK
Ametric 14M34QD115.SK
Powerdrive QD34-14M-115
Continental (ContiTech) P34-14M-115-SK

Always verify dimensions and bore size before substituting part numbers across manufacturers.

Buying in bulk? Save on volume.

Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.

Frequently Asked Questions

What belts fit the QD34-14M-115 pulley?

14 mm HTD® compatible timing belts in 115mm width from any manufacturer. The pitch is standardized, so belt and pulley brands can be mixed.

Does the QD34-14M-115 replace the Dodge P34-14M-115-SK?

Yes. Published interchange data crosses the QD34-14M-115 directly to the Dodge P34-14M-115-SK, as well as Martin P3414M115-SK, TB Woods P3414M115, Regal Rexnord B3414M115SK. Verify dimensions and bore before ordering.

Does the QD34-14M-115 ship from Houston?

Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.

Need a quote on QD34-14M-115?

Houston warehouse, same-day shipping on stock items.

Call (888) 203-2358

Powerhouse® is a registered trademark of its owner. HTD® is a registered trademark of Gates Corporation. All third-party part numbers and trademarks referenced are the property of their respective owners. References are for compatibility identification only and do not imply affiliation or endorsement.
