QD34-8M-30 Powerhouse® HTD Timing Pulley, 34 Teeth, 8M Pitch


Price:
$ 77.40

Description

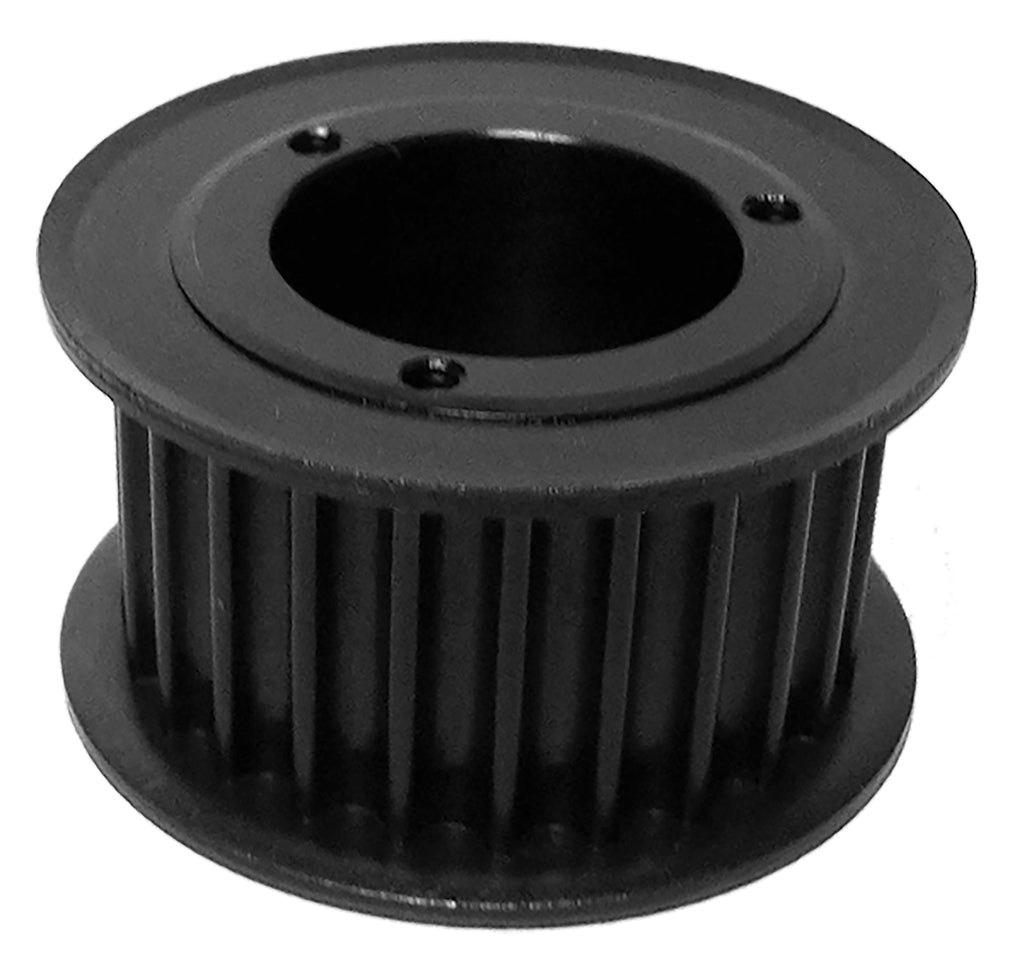

QD34-8M-30 Powerhouse® HTD Timing Pulley, 34 Teeth, 8M Pitch

The QD34-8M-30 is a 34-tooth 8 mm HTD® compatible timing pulley. It mounts with an industry-standard bushing, sold separately, machined from ductile iron with a black oxide finish, built for 3mm wide belts. Machined from solid stock, never sintered or powdered metal. Powerhouse® HTD pulleys fit drives using HTD® curvilinear belts of the same pitch and width.

Specifications

Type A1F pulley construction dimension diagram

Dimension key for this construction type. Values for this part number are in the table below.

Specification Value
Part Number QD34-8M-30
Teeth 34
Pitch 8 mm HTD® compatible
For Belt Width 3mm
Pitch Diameter 3.4087 in
Outside Diameter 3.3567 in
Flange Diameter 3.819 in
Bore Accepts SH bushing (not included)
Face Width 1.5 in
Overall Length 1.5 in
Construction Quick Disconnect Hub
Flange Material Steel
Material Ductile Iron (no sintered or powdered metal)
Finish Black Oxide
Weight 1.647 lb
Country of Origin United States. ISO 9001:2015 certified manufacturing.

Applications

  • HTD curvilinear belt drives on industrial equipment
  • Conveyors, packaging, and warehouse automation
  • Replacing worn pulleys on existing HTD drives

Belt Compatibility

The QD34-8M-30 runs 8 mm HTD® compatible belts in 3mm width. The pitch is standardized, so belt and pulley brands can be mixed.

Cross Reference

The QD34-8M-30 interchanges with these equivalent part numbers, per published manufacturer interchange data:

Manufacturer Equivalent Part Number
Dodge® P34-8M-30-SH
Martin P348M30-SH
TB Woods® P348M30
Regal Rexnord (Browning®) B348M30SH
Mitsuboshi QD34-8M-30
Jason Industrial P348M30SH
Masterdrive P34-8M-30-SH
Ametric 8M34QD30.SH
McMaster-Carr 6497K217
Grainger 809R43

Always verify dimensions and bore size before substituting part numbers across manufacturers.

Buying in bulk? Save on volume.

Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.

Frequently Asked Questions

What belts fit the QD34-8M-30 pulley?

8 mm HTD® compatible timing belts in 3mm width from any manufacturer. The pitch is standardized, so belt and pulley brands can be mixed.

Does the QD34-8M-30 replace the Dodge P34-8M-30-SH?

Yes. Published interchange data crosses the QD34-8M-30 directly to the Dodge P34-8M-30-SH, as well as Martin P348M30-SH, TB Woods P348M30, Regal Rexnord B348M30SH. Verify dimensions and bore before ordering.

Does the QD34-8M-30 ship from Houston?

Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.

Need a quote on QD34-8M-30?

Houston warehouse, same-day shipping on stock items.

Call (888) 203-2358

Powerhouse® is a registered trademark of its owner. HTD® is a registered trademark of Gates Corporation. All third-party part numbers and trademarks referenced are the property of their respective owners. References are for compatibility identification only and do not imply affiliation or endorsement.
