QD34-8M-50 Powerhouse® HTD Timing Pulley, 34 Teeth, 8M Pitch


Price:
$ 103.21

Description

QD34-8M-50 Powerhouse® HTD Timing Pulley, 34 Teeth, 8M Pitch

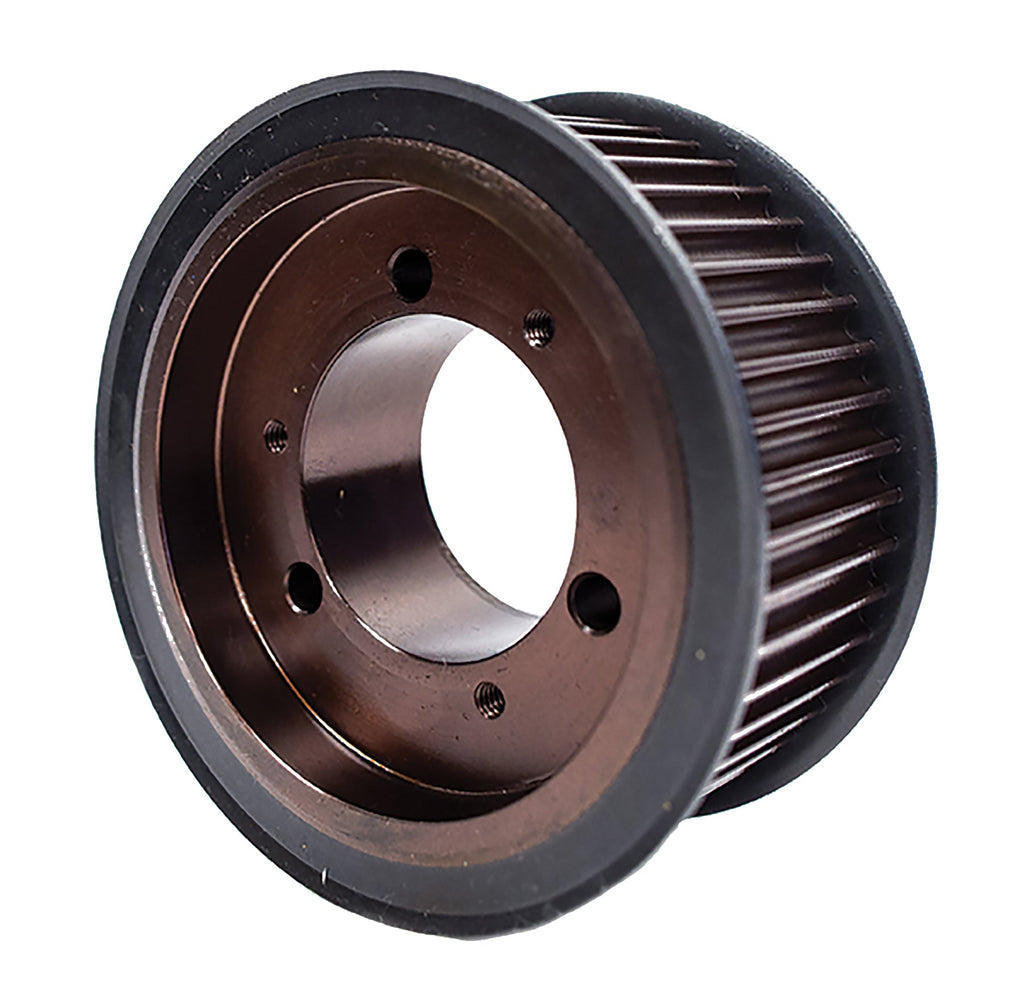

The QD34-8M-50 is a 34-tooth 8 mm HTD® compatible timing pulley. It mounts with an industry-standard bushing, sold separately, machined from ductile iron with a black oxide finish, built for 5mm wide belts. Machined from solid stock, never sintered or powdered metal. Powerhouse® HTD pulleys fit drives using HTD® curvilinear belts of the same pitch and width.

Specifications

Type A1F pulley construction dimension diagram

Dimension key for this construction type. Values for this part number are in the table below.

Specification Value
Part Number QD34-8M-50
Teeth 34
Pitch 8 mm HTD® compatible
For Belt Width 5mm
Pitch Diameter 3.4087 in
Outside Diameter 3.3567 in
Flange Diameter 3.819 in
Bore Accepts SH bushing (not included)
Face Width 2.375 in
Overall Length 2.375 in
Construction Quick Disconnect Hub
Flange Material Steel
Material Ductile Iron (no sintered or powdered metal)
Finish Black Oxide
Weight 2.083 lb
Country of Origin United States. ISO 9001:2015 certified manufacturing.

Applications

  • HTD curvilinear belt drives on industrial equipment
  • Conveyors, packaging, and warehouse automation
  • Replacing worn pulleys on existing HTD drives

Belt Compatibility

The QD34-8M-50 runs 8 mm HTD® compatible belts in 5mm width. The pitch is standardized, so belt and pulley brands can be mixed.

Cross Reference

The QD34-8M-50 interchanges with these equivalent part numbers, per published manufacturer interchange data:

Manufacturer Equivalent Part Number
Dodge® P34-8M-50-SH
Martin P348M50-H
TB Woods® P348M50
Regal Rexnord (Browning®) B348M50H
Mitsuboshi QD34-8M-50
Jason Industrial P348M50H
Masterdrive P34-8M-50-SH
Ametric 8M34QD50.SH
McMaster-Carr 6497K33
Grainger 809R44

Always verify dimensions and bore size before substituting part numbers across manufacturers.

Buying in bulk? Save on volume.

Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.

Frequently Asked Questions

What belts fit the QD34-8M-50 pulley?

8 mm HTD® compatible timing belts in 5mm width from any manufacturer. The pitch is standardized, so belt and pulley brands can be mixed.

Does the QD34-8M-50 replace the Dodge P34-8M-50-SH?

Yes. Published interchange data crosses the QD34-8M-50 directly to the Dodge P34-8M-50-SH, as well as Martin P348M50-H, TB Woods P348M50, Regal Rexnord B348M50H. Verify dimensions and bore before ordering.

Does the QD34-8M-50 ship from Houston?

Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.

Need a quote on QD34-8M-50?

Houston warehouse, same-day shipping on stock items.

Call (888) 203-2358

Powerhouse® is a registered trademark of its owner. HTD® is a registered trademark of Gates Corporation. All third-party part numbers and trademarks referenced are the property of their respective owners. References are for compatibility identification only and do not imply affiliation or endorsement.
