QD36-8M-30 Powerhouse® HTD Timing Pulley, 36 Teeth, 8M Pitch


Price:
$ 83.59

Description

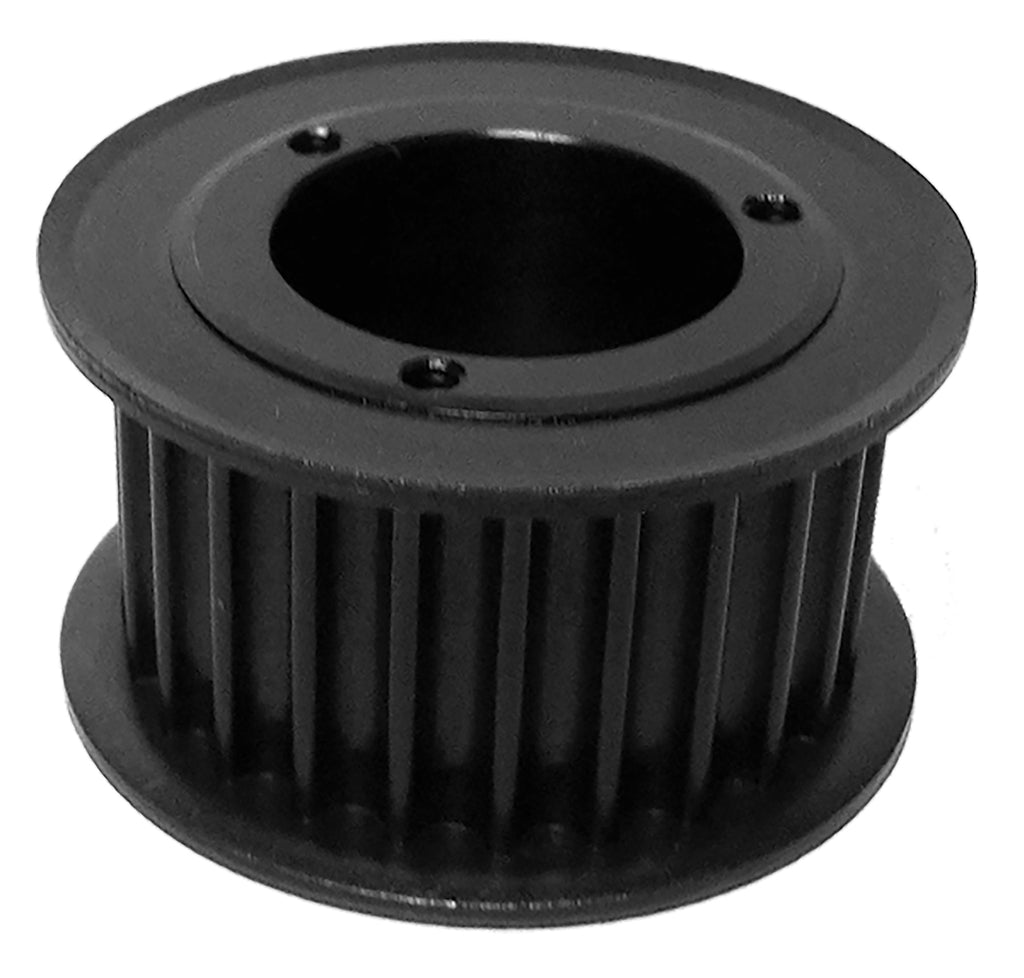

QD36-8M-30 Powerhouse® HTD Timing Pulley, 36 Teeth, 8M Pitch

The QD36-8M-30 is a 36-tooth 8 mm HTD® compatible timing pulley. It mounts with an industry-standard bushing, sold separately, machined from ductile iron with a black oxide finish, built for 3mm wide belts. Machined from solid stock, never sintered or powdered metal. Powerhouse® HTD pulleys fit drives using HTD® curvilinear belts of the same pitch and width.

Specifications

Type A1F pulley construction dimension diagram

Dimension key for this construction type. Values for this part number are in the table below.

Specification Value
Part Number QD36-8M-30
Teeth 36
Pitch 8 mm HTD® compatible
For Belt Width 3mm
Pitch Diameter 3.6092 in
Outside Diameter 3.5572 in
Flange Diameter 3.937 in
Bore Accepts SH bushing (not included)
Face Width 1.5 in
Overall Length 1.5 in
Construction Quick Disconnect Hub
Flange Material Steel
Material Ductile Iron (no sintered or powdered metal)
Finish Black Oxide
Weight 2 lb
Country of Origin United States. ISO 9001:2015 certified manufacturing.

Applications

  • HTD curvilinear belt drives on industrial equipment
  • Conveyors, packaging, and warehouse automation
  • Replacing worn pulleys on existing HTD drives

Belt Compatibility

The QD36-8M-30 runs 8 mm HTD® compatible belts in 3mm width. The pitch is standardized, so belt and pulley brands can be mixed.

Cross Reference

The QD36-8M-30 interchanges with these equivalent part numbers, per published manufacturer interchange data:

Manufacturer Equivalent Part Number
Dodge® P36-8M-30-SH
Martin P368M30-SH
TB Woods® P368M30
Regal Rexnord (Browning®) B368M30SH
Mitsuboshi QD36-8M-30
Jason Industrial P368M30SH
Masterdrive P36-8M-30-SH
Ametric 8M36QD30.SH
Grainger 809R50
Grainger 2UWN8

Always verify dimensions and bore size before substituting part numbers across manufacturers.

Buying in bulk? Save on volume.

Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.

Frequently Asked Questions

What belts fit the QD36-8M-30 pulley?

8 mm HTD® compatible timing belts in 3mm width from any manufacturer. The pitch is standardized, so belt and pulley brands can be mixed.

Does the QD36-8M-30 replace the Dodge P36-8M-30-SH?

Yes. Published interchange data crosses the QD36-8M-30 directly to the Dodge P36-8M-30-SH, as well as Martin P368M30-SH, TB Woods P368M30, Regal Rexnord B368M30SH. Verify dimensions and bore before ordering.

Does the QD36-8M-30 ship from Houston?

Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.

Need a quote on QD36-8M-30?

Houston warehouse, same-day shipping on stock items.

Call (888) 203-2358

Powerhouse® is a registered trademark of its owner. HTD® is a registered trademark of Gates Corporation. All third-party part numbers and trademarks referenced are the property of their respective owners. References are for compatibility identification only and do not imply affiliation or endorsement.
