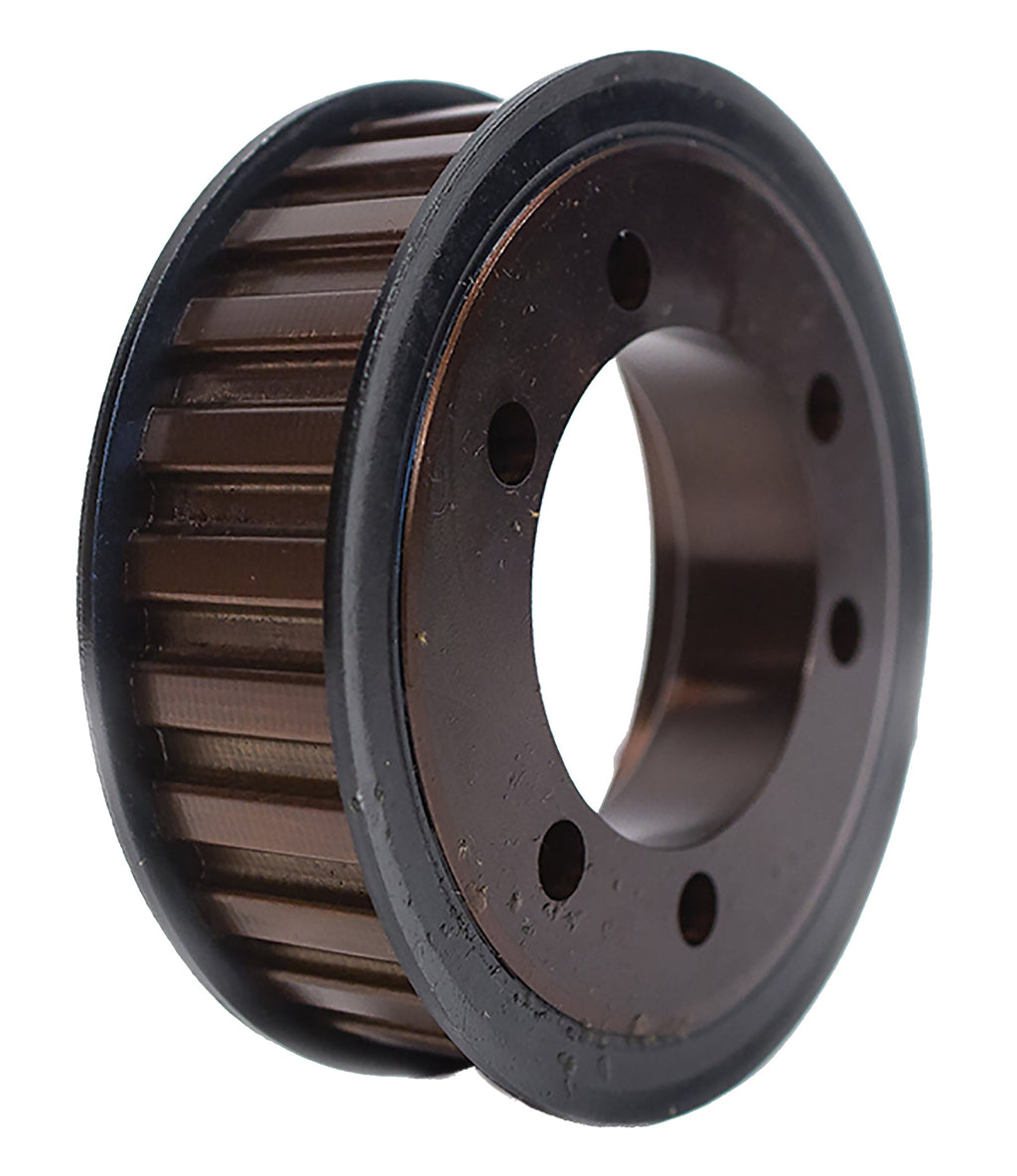

QD36H200 Timing Pulley, 36 Teeth, H Pitch


Price:
$ 176.42

Description

QD36H200 Timing Pulley, 36 Teeth, H Pitch

The QD36H200 is a 36-tooth H (0.500 in trapezoidal) timing pulley. It mounts with an industry-standard bushing, sold separately, machined from ductile iron with a black oxide finish, built for 2 in wide belts. Machined from solid stock, never sintered or powdered metal.

Specifications

Type B1F pulley construction dimension diagram

Dimension key for this construction type. Values for this part number are in the table below.

Specification Value
Part Number QD36H200
Teeth 36
Pitch H (0.500 in trapezoidal)
For Belt Width 2 in
Pitch Diameter 5.7296 in
Outside Diameter 5.6756 in
Flange Diameter 5.959 in
Bore Accepts SK bushing (not included)
Face Width 2.344 in
Overall Length 2.344 in
Construction Quick Disconnect Hub
Flange Material Steel
Material Ductile Iron (no sintered or powdered metal)
Finish Black Oxide
Weight 8.23 lb
Country of Origin United States. ISO 9001:2015 certified manufacturing.

Applications

  • Instrumentation, office equipment, and precision positioning drives
  • 3D printers and desktop CNC equipment
  • Robotics, medical devices, and packaging machinery

Belt Compatibility

The QD36H200 runs H (0.500 in trapezoidal) belts in 2 in width. The pitch is standardized, so belt and pulley brands can be mixed.

Cross Reference

The QD36H200 interchanges with these equivalent part numbers, per published manufacturer interchange data:

Manufacturer Equivalent Part Number
Martin 36H200 SK
TB Woods® 36H200
Regal Rexnord (Browning®) 36H200SK
Mitsuboshi QD36H200
Jason Industrial 36H200SK
Ametric 36H200.SK
McMaster-Carr 6495K821
Grainger 809VK8
Powerdrive QD36H200
Continental (ContiTech) 36H200-SK

Always verify dimensions and bore size before substituting part numbers across manufacturers.

Buying in bulk? Save on volume.

Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.

Frequently Asked Questions

What belts fit the QD36H200 pulley?

H (0.500 in trapezoidal) timing belts in 2 in width from any manufacturer. The pitch is standardized, so belt and pulley brands can be mixed.

Does the QD36H200 replace the Martin 36H200 SK?

Yes. Published interchange data crosses the QD36H200 directly to the Martin 36H200 SK, as well as TB Woods 36H200, Regal Rexnord 36H200SK, Mitsuboshi QD36H200. Verify dimensions and bore before ordering.

Does the QD36H200 ship from Houston?

Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.

Need a quote on QD36H200?

Houston warehouse, same-day shipping on stock items.

Call (888) 203-2358

All third-party part numbers and trademarks referenced are the property of their respective owners. References are for compatibility identification only and do not imply affiliation or endorsement.
