Description

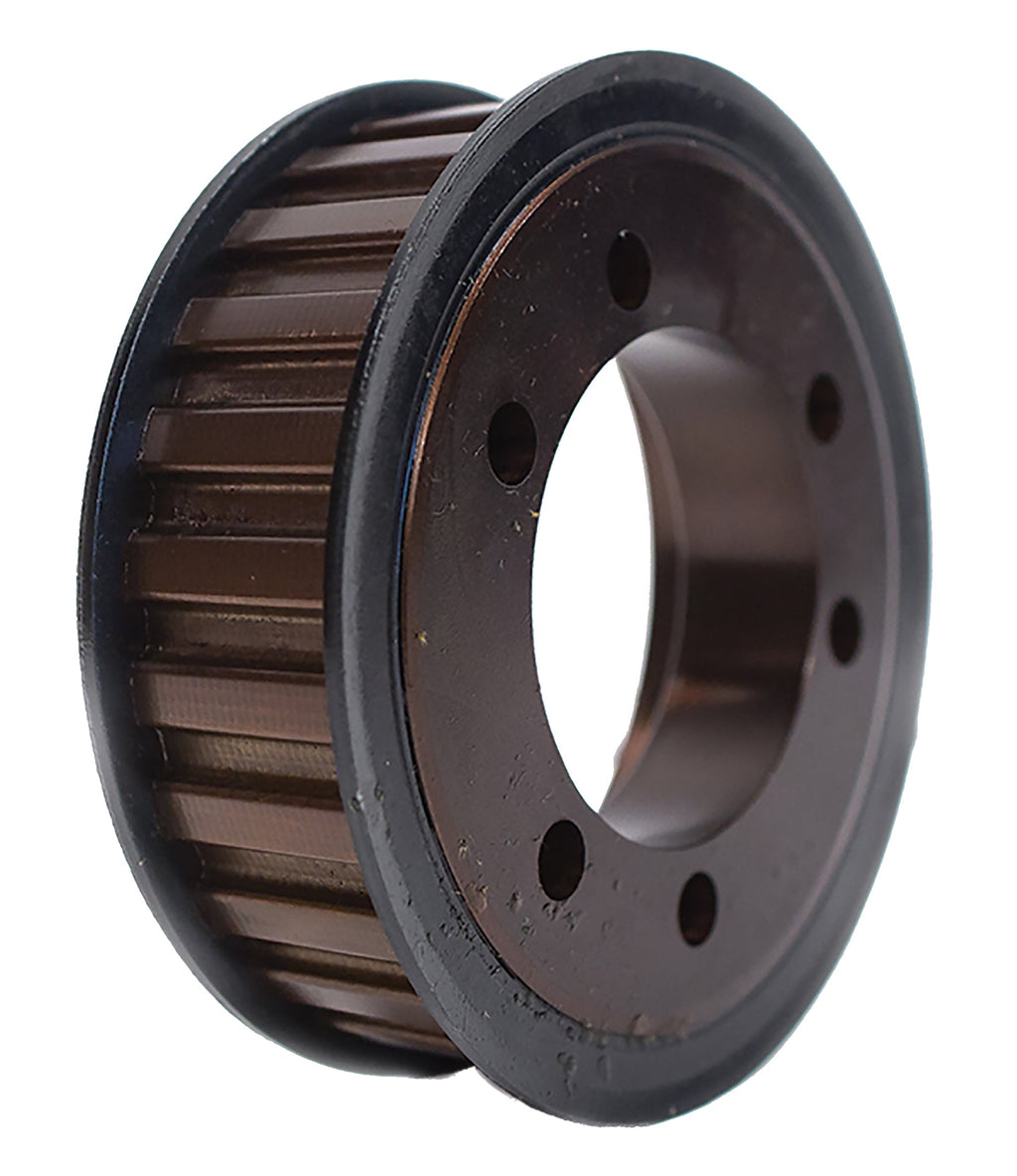

QD36H300 Timing Pulley, 36 Teeth, H Pitch
The QD36H300 is a 36-tooth H (0.500 in trapezoidal) timing pulley. It mounts with an industry-standard bushing, sold separately, machined from ductile iron with a black oxide finish, built for 3 in wide belts. Machined from solid stock, never sintered or powdered metal.
Specifications

Dimension key for this construction type. Values for this part number are in the table below.
| Specification | Value |
|---|---|
| Part Number | QD36H300 |
| Teeth | 36 |
| Pitch | H (0.500 in trapezoidal) |
| For Belt Width | 3 in |
| Pitch Diameter | 5.7296 in |
| Outside Diameter | 5.6756 in |
| Flange Diameter | 5.959 in |
| Bore | Accepts SK bushing (not included) |
| Face Width | 3.375 in |
| Overall Length | 3.375 in |
| Construction | Quick Disconnect Hub |
| Flange Material | Steel |
| Material | Ductile Iron (no sintered or powdered metal) |
| Finish | Black Oxide |
| Weight | 10.752 lb |
| Country of Origin | United States. ISO 9001:2015 certified manufacturing. |
Applications
- Instrumentation, office equipment, and precision positioning drives
- 3D printers and desktop CNC equipment
- Robotics, medical devices, and packaging machinery
Belt Compatibility
The QD36H300 runs H (0.500 in trapezoidal) belts in 3 in width. The pitch is standardized, so belt and pulley brands can be mixed.
Cross Reference
The QD36H300 interchanges with these equivalent part numbers, per published manufacturer interchange data:
| Manufacturer | Equivalent Part Number |
|---|---|
| Martin | 36H300 SK |
| TB Woods® | 36H300 |
| Regal Rexnord (Browning®) | 36H300SK |
| Mitsuboshi | QD36H300 |
| Jason Industrial | 36H300SK |
| Ametric | 36H300.SK |
| Grainger | 809VK9 |
| Powerdrive | QD36H300 |
| Continental (ContiTech) | 36H300-SK |
Always verify dimensions and bore size before substituting part numbers across manufacturers.
Buying in bulk? Save on volume.
Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.
Frequently Asked Questions
What belts fit the QD36H300 pulley?
H (0.500 in trapezoidal) timing belts in 3 in width from any manufacturer. The pitch is standardized, so belt and pulley brands can be mixed.
Does the QD36H300 replace the Martin 36H300 SK?
Yes. Published interchange data crosses the QD36H300 directly to the Martin 36H300 SK, as well as TB Woods 36H300, Regal Rexnord 36H300SK, Mitsuboshi QD36H300. Verify dimensions and bore before ordering.
Does the QD36H300 ship from Houston?
Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.
All third-party part numbers and trademarks referenced are the property of their respective owners. References are for compatibility identification only and do not imply affiliation or endorsement.
