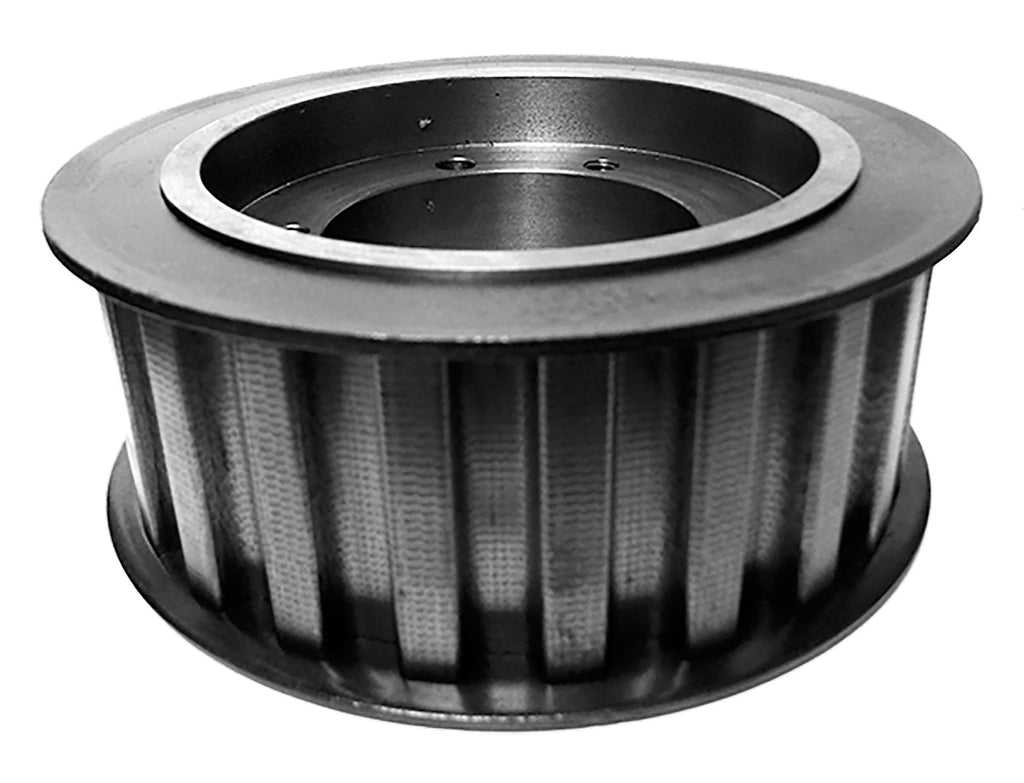

QD36XH200 Timing Pulley, 36 Teeth, XH Pitch


Price:
$ 634.12

Description

QD36XH200 Timing Pulley, 36 Teeth, XH Pitch

The QD36XH200 is a 36-tooth XH (0.875 in trapezoidal) timing pulley. It mounts with an industry-standard bushing, sold separately, machined from steel with a black oxide finish, built for 2 in wide belts. Machined from solid stock, never sintered or powdered metal.

Specifications

Type D2F pulley construction dimension diagram

Dimension key for this construction type. Values for this part number are in the table below.

Specification Value
Part Number QD36XH200
Teeth 36
Pitch XH (0.875 in trapezoidal)
For Belt Width 2 in
Pitch Diameter 10.0268 in
Outside Diameter 9.9168 in
Flange Diameter 10.563 in
Bore Accepts E bushing (not included)
Face Width 2.563 in
Overall Length 3.156 in
Construction Quick Disconnect Hub
Flange Material Steel
Material Steel (no sintered or powdered metal)
Finish Black Oxide
Weight 31.85 lb
Country of Origin China

Applications

  • Instrumentation, office equipment, and precision positioning drives
  • 3D printers and desktop CNC equipment
  • Robotics, medical devices, and packaging machinery

Belt Compatibility

The QD36XH200 runs XH (0.875 in trapezoidal) belts in 2 in width. The pitch is standardized, so belt and pulley brands can be mixed.

Cross Reference

The QD36XH200 interchanges with these equivalent part numbers, per published manufacturer interchange data:

Manufacturer Equivalent Part Number
Martin 36XH200 E
TB Woods® 36XH200
Regal Rexnord (Browning®) 36XH200E
Jason Industrial 36XH200E
Ametric 36 XH 200
Powerdrive QD36XH200
Continental (ContiTech) 36XH200-E

Always verify dimensions and bore size before substituting part numbers across manufacturers.

Buying in bulk? Save on volume.

Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.

Frequently Asked Questions

What belts fit the QD36XH200 pulley?

XH (0.875 in trapezoidal) timing belts in 2 in width from any manufacturer. The pitch is standardized, so belt and pulley brands can be mixed.

Does the QD36XH200 replace the Martin 36XH200 E?

Yes. Published interchange data crosses the QD36XH200 directly to the Martin 36XH200 E, as well as TB Woods 36XH200, Regal Rexnord 36XH200E, Jason Industrial 36XH200E. Verify dimensions and bore before ordering.

Does the QD36XH200 ship from Houston?

Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.

Need a quote on QD36XH200?

Houston warehouse, same-day shipping on stock items.

Call (888) 203-2358

All third-party part numbers and trademarks referenced are the property of their respective owners. References are for compatibility identification only and do not imply affiliation or endorsement.
