QD38-5M-15 Powerhouse® HTD Timing Pulley, 38 Teeth, 5M Pitch


Price:
$ 42.85

Description

QD38-5M-15 Powerhouse® HTD Timing Pulley, 38 Teeth, 5M Pitch

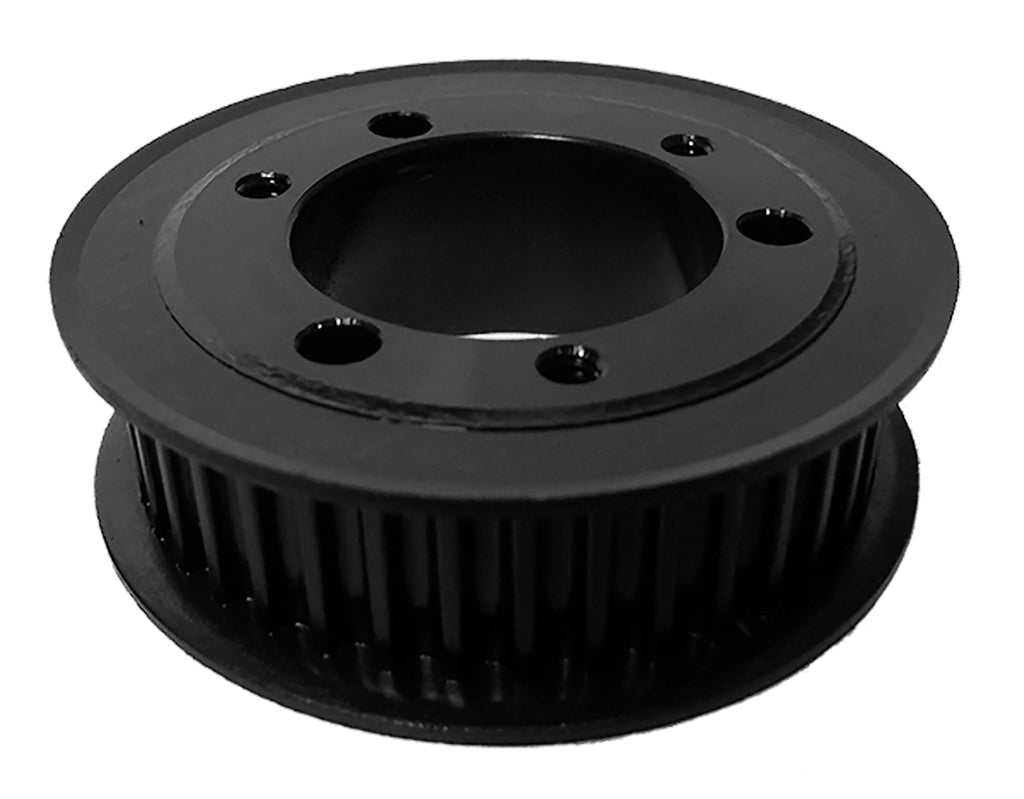

The QD38-5M-15 is a 38-tooth 5 mm HTD® compatible timing pulley. It mounts with an industry-standard bushing, sold separately, machined from steel with a black oxide finish, built for 15mm wide belts. Machined from solid stock, never sintered or powdered metal. Powerhouse® HTD pulleys fit drives using HTD® curvilinear belts of the same pitch and width.

$50 minimum order on drive components. Mix and match any pulleys, bushings, sheaves, sprockets, and accessories in your cart to reach the $50 minimum. Questions? Call (888) 203-2358.

Specifications

Type E1F pulley construction dimension diagram

Dimension key for this construction type. Values for this part number are in the table below.

Specification Value
Part Number QD38-5M-15
Teeth 38
Pitch 5 mm HTD® compatible
For Belt Width 15mm
Pitch Diameter 2.3811 in
Outside Diameter 2.3361 in
Flange Diameter 2.625 in
Bore Accepts JA bushing (not included)
Face Width 0.84 in
Overall Length 0.84 in
Hub Diameter 0.312 in
Construction Quick Disconnect Hub
Flange Material Steel
Material Steel (no sintered or powdered metal)
Finish Black Oxide
Weight 0.65 lb
Country of Origin United States. ISO 9001:2015 certified manufacturing.

Applications

  • HTD curvilinear belt drives on industrial equipment
  • Conveyors, packaging, and warehouse automation
  • Replacing worn pulleys on existing HTD drives

Belt Compatibility

The QD38-5M-15 runs 5 mm HTD® compatible belts in 15mm width. The pitch is standardized, so belt and pulley brands can be mixed.

Cross Reference

The QD38-5M-15 interchanges with these equivalent part numbers, per published manufacturer interchange data:

Manufacturer Equivalent Part Number
Dodge® P38-5M-15-JA
Martin P385M15-JA
TB Woods® P385M15
Jason Industrial P385M15JA
Masterdrive P38-5M-15-JA
Neuman P38-5M-15-JA
Ametric 5M38QD15.JA
Grainger 809R55
Powerdrive QD38-5M-15
Continental (ContiTech) P38-5M-15-JA

Always verify dimensions and bore size before substituting part numbers across manufacturers.

Buying in bulk? Save on volume.

Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.

Frequently Asked Questions

What belts fit the QD38-5M-15 pulley?

5 mm HTD® compatible timing belts in 15mm width from any manufacturer. The pitch is standardized, so belt and pulley brands can be mixed.

Does the QD38-5M-15 replace the Dodge P38-5M-15-JA?

Yes. Published interchange data crosses the QD38-5M-15 directly to the Dodge P38-5M-15-JA, as well as Martin P385M15-JA, TB Woods P385M15, Jason Industrial P385M15JA. Verify dimensions and bore before ordering.

Does the QD38-5M-15 ship from Houston?

Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.

Need a quote on QD38-5M-15?

Houston warehouse, same-day shipping on stock items.

Call (888) 203-2358

Powerhouse® is a registered trademark of its owner. HTD® is a registered trademark of Gates Corporation. All third-party part numbers and trademarks referenced are the property of their respective owners. References are for compatibility identification only and do not imply affiliation or endorsement.
