QD44-5M-15 Powerhouse® HTD Timing Pulley, 44 Teeth, 5M Pitch


Price:
$ 45.24

Description

QD44-5M-15 Powerhouse® HTD Timing Pulley, 44 Teeth, 5M Pitch

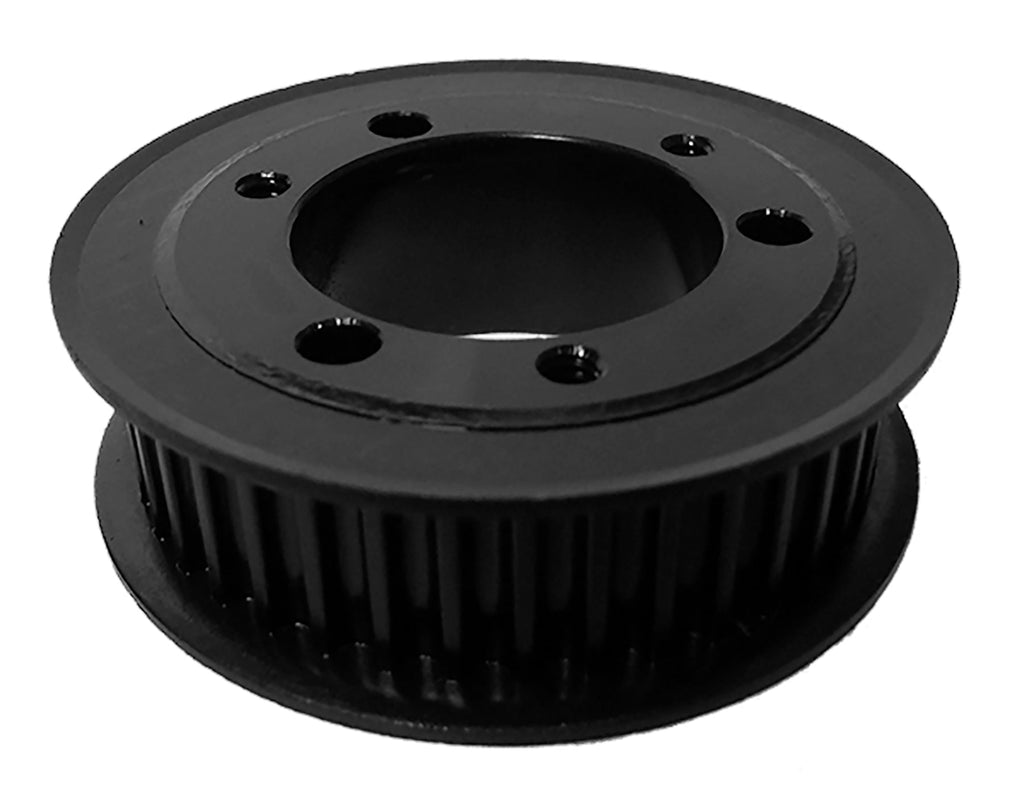

The QD44-5M-15 is a 44-tooth 5 mm HTD® compatible timing pulley. It mounts with an industry-standard bushing, sold separately, machined from steel with a black oxide finish, built for 15mm wide belts. Machined from solid stock, never sintered or powdered metal. Powerhouse® HTD pulleys fit drives using HTD® curvilinear belts of the same pitch and width.

$50 minimum order on drive components. Mix and match any pulleys, bushings, sheaves, sprockets, and accessories in your cart to reach the $50 minimum. Questions? Call (888) 203-2358.

Specifications

Type E1F pulley construction dimension diagram

Dimension key for this construction type. Values for this part number are in the table below.

Specification Value
Part Number QD44-5M-15
Teeth 44
Pitch 5 mm HTD® compatible
For Belt Width 15mm
Pitch Diameter 2.757 in
Outside Diameter 2.712 in
Flange Diameter 3.094 in
Bore Accepts JA bushing (not included)
Face Width 0.84 in
Overall Length 0.84 in
Hub Diameter 0.364 in
Construction Quick Disconnect Hub
Flange Material Steel
Material Steel (no sintered or powdered metal)
Finish Black Oxide
Weight 0.988 lb
Country of Origin United States. ISO 9001:2015 certified manufacturing.

Applications

  • HTD curvilinear belt drives on industrial equipment
  • Conveyors, packaging, and warehouse automation
  • Replacing worn pulleys on existing HTD drives

Belt Compatibility

The QD44-5M-15 runs 5 mm HTD® compatible belts in 15mm width. The pitch is standardized, so belt and pulley brands can be mixed.

Cross Reference

The QD44-5M-15 interchanges with these equivalent part numbers, per published manufacturer interchange data:

Manufacturer Equivalent Part Number
Dodge® P44-5M-15-JA
Martin P445M15-JA
TB Woods® P445M15
Jason Industrial P445M15JA
Masterdrive P44-5M-15-JA
Neuman P44-5M-15-JA
Ametric 5M44QD15.JA
Grainger 809R71
Powerdrive QD44-5M-15
Continental (ContiTech) P44-5M-15-JA

Always verify dimensions and bore size before substituting part numbers across manufacturers.

Buying in bulk? Save on volume.

Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.

Frequently Asked Questions

What belts fit the QD44-5M-15 pulley?

5 mm HTD® compatible timing belts in 15mm width from any manufacturer. The pitch is standardized, so belt and pulley brands can be mixed.

Does the QD44-5M-15 replace the Dodge P44-5M-15-JA?

Yes. Published interchange data crosses the QD44-5M-15 directly to the Dodge P44-5M-15-JA, as well as Martin P445M15-JA, TB Woods P445M15, Jason Industrial P445M15JA. Verify dimensions and bore before ordering.

Does the QD44-5M-15 ship from Houston?

Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.

Need a quote on QD44-5M-15?

Houston warehouse, same-day shipping on stock items.

Call (888) 203-2358

Powerhouse® is a registered trademark of its owner. HTD® is a registered trademark of Gates Corporation. All third-party part numbers and trademarks referenced are the property of their respective owners. References are for compatibility identification only and do not imply affiliation or endorsement.
