QD48-5M-25 Powerhouse® HTD Timing Pulley, 48 Teeth, 5M Pitch


Price:
$ 52.39

Description

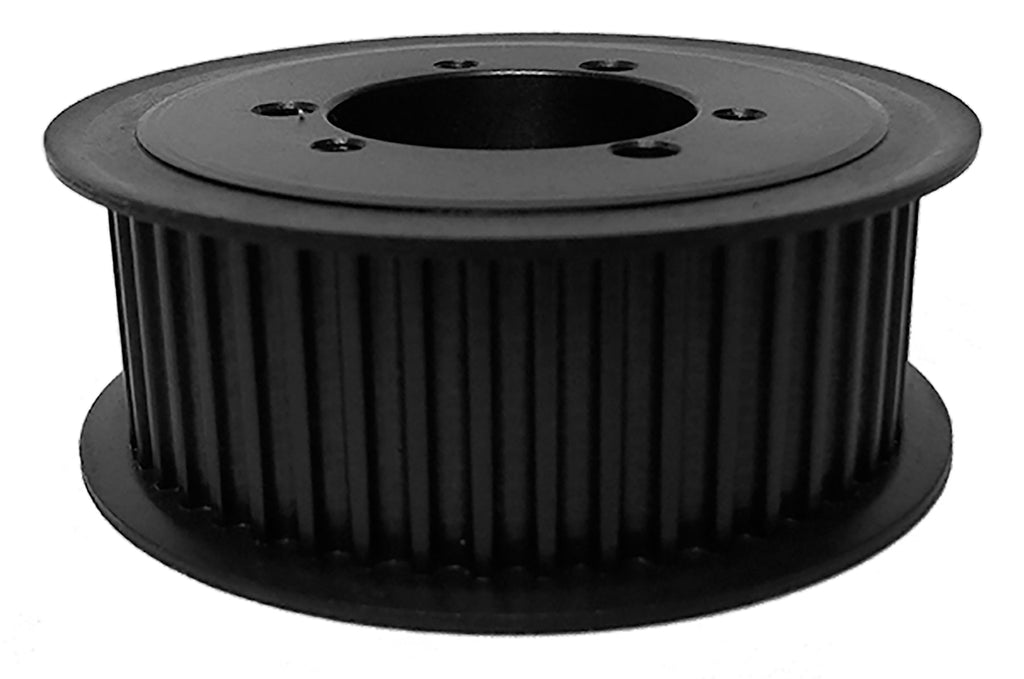

QD48-5M-25 Powerhouse® HTD Timing Pulley, 48 Teeth, 5M Pitch

The QD48-5M-25 is a 48-tooth 5 mm HTD® compatible timing pulley. It mounts with an industry-standard bushing, sold separately, machined from steel with a black oxide finish, built for 25mm wide belts. Machined from solid stock, never sintered or powdered metal. Powerhouse® HTD pulleys fit drives using HTD® curvilinear belts of the same pitch and width.

Specifications

Type B1F pulley construction dimension diagram

Dimension key for this construction type. Values for this part number are in the table below.

Specification Value
Part Number QD48-5M-25
Teeth 48
Pitch 5 mm HTD® compatible
For Belt Width 25mm
Pitch Diameter 3.0077 in
Outside Diameter 2.9627 in
Flange Diameter 3.33 in
Bore Accepts JA bushing (not included)
Face Width 1.23 in
Overall Length 1.23 in
Construction Quick Disconnect Hub
Flange Material Steel
Material Steel (no sintered or powdered metal)
Finish Black Oxide
Weight 1.177 lb
Country of Origin United States. ISO 9001:2015 certified manufacturing.

Applications

  • HTD curvilinear belt drives on industrial equipment
  • Conveyors, packaging, and warehouse automation
  • Replacing worn pulleys on existing HTD drives

Belt Compatibility

The QD48-5M-25 runs 5 mm HTD® compatible belts in 25mm width. The pitch is standardized, so belt and pulley brands can be mixed.

Cross Reference

The QD48-5M-25 interchanges with these equivalent part numbers, per published manufacturer interchange data:

Manufacturer Equivalent Part Number
Dodge® P48-5M-25-JA
Martin P485M25-JA
TB Woods® P485M25
Jason Industrial P485M25JA
Masterdrive P48-5M-25-JA
Neuman P48-5M-25-JA
Ametric 5M48QD25.JA
Grainger 809R80
Powerdrive QD48-5M-25
Continental (ContiTech) P48-5M-25-JA

Always verify dimensions and bore size before substituting part numbers across manufacturers.

Buying in bulk? Save on volume.

Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.

Frequently Asked Questions

What belts fit the QD48-5M-25 pulley?

5 mm HTD® compatible timing belts in 25mm width from any manufacturer. The pitch is standardized, so belt and pulley brands can be mixed.

Does the QD48-5M-25 replace the Dodge P48-5M-25-JA?

Yes. Published interchange data crosses the QD48-5M-25 directly to the Dodge P48-5M-25-JA, as well as Martin P485M25-JA, TB Woods P485M25, Jason Industrial P485M25JA. Verify dimensions and bore before ordering.

Does the QD48-5M-25 ship from Houston?

Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.

Need a quote on QD48-5M-25?

Houston warehouse, same-day shipping on stock items.

Call (888) 203-2358

Powerhouse® is a registered trademark of its owner. HTD® is a registered trademark of Gates Corporation. All third-party part numbers and trademarks referenced are the property of their respective owners. References are for compatibility identification only and do not imply affiliation or endorsement.
