QD48L100 Timing Pulley, 48 Teeth, L Pitch


Price:
$ 86.61

Description

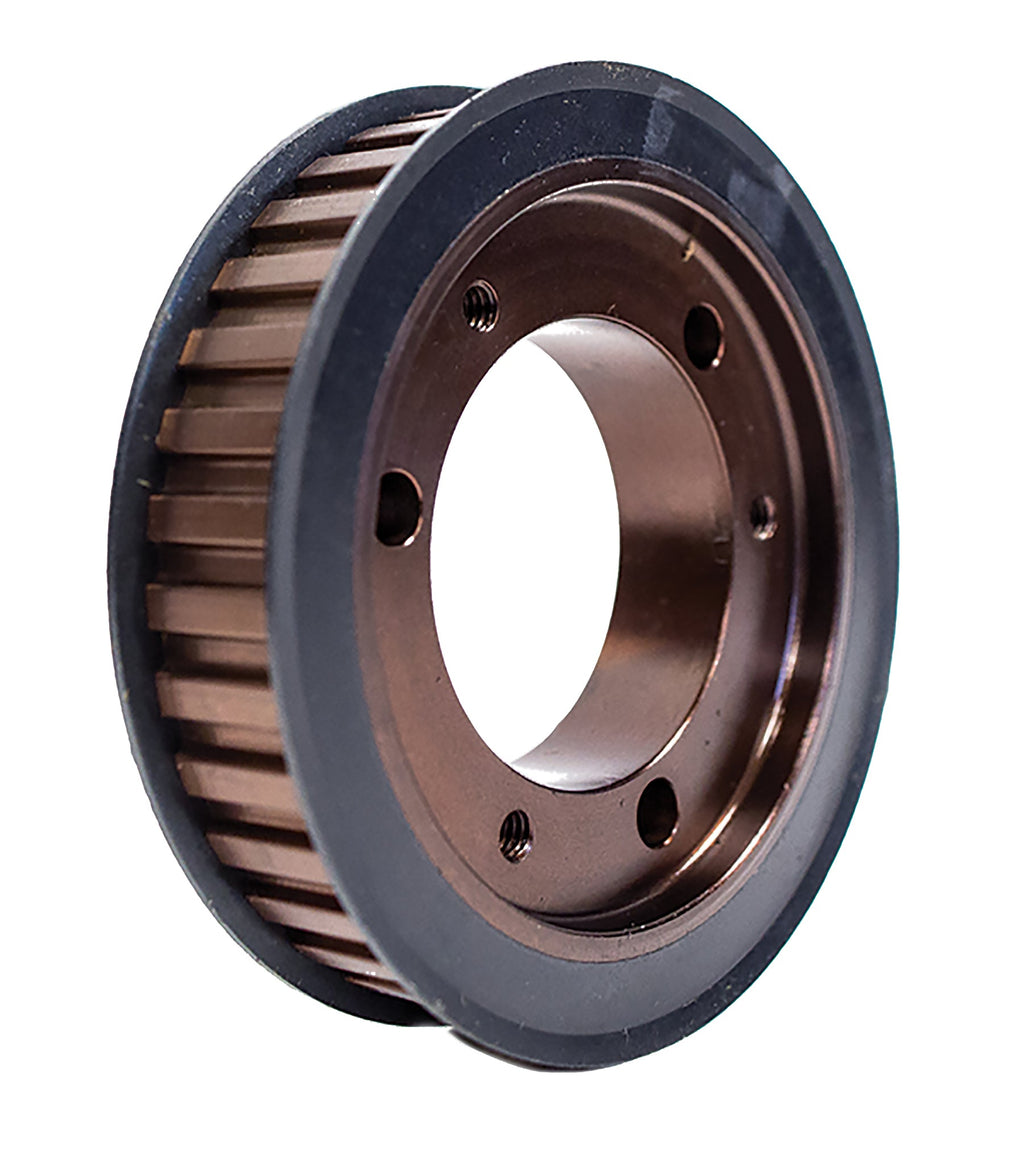

QD48L100 Timing Pulley, 48 Teeth, L Pitch

The QD48L100 is a 48-tooth L (0.375 in trapezoidal) timing pulley. It mounts with an industry-standard bushing, sold separately, machined from cast iron with a black oxide finish, built for 1 in wide belts. Machined from solid stock, never sintered or powdered metal.

Specifications

Type B1F pulley construction dimension diagram

Dimension key for this construction type. Values for this part number are in the table below.

Specification Value
Part Number QD48L100
Teeth 48
Pitch L (0.375 in trapezoidal)
For Belt Width 1 in
Pitch Diameter 5.7296 in
Outside Diameter 5.6996 in
Flange Diameter 5.95 in
Bore Accepts SDS bushing (not included)
Face Width 1.25 in
Overall Length 1.25 in
Construction Quick Disconnect Hub
Flange Material Steel
Material Cast Iron (no sintered or powdered metal)
Finish Black Oxide
Weight 5.106 lb
Country of Origin United States. ISO 9001:2015 certified manufacturing.

Applications

  • Instrumentation, office equipment, and precision positioning drives
  • 3D printers and desktop CNC equipment
  • Robotics, medical devices, and packaging machinery

Belt Compatibility

The QD48L100 runs L (0.375 in trapezoidal) belts in 1 in width. The pitch is standardized, so belt and pulley brands can be mixed.

Cross Reference

The QD48L100 interchanges with these equivalent part numbers, per published manufacturer interchange data:

Manufacturer Equivalent Part Number
Martin 48L100 SDS
TB Woods® 48L100
Regal Rexnord (Browning®) 48L100SDS
Mitsuboshi QD48L100
Jason Industrial 48L100SDS
Neuman 48L100-SDS
Ametric 48L100.SDS
McMaster-Carr 6495K421
Grainger 809VN3
Powerdrive QD48L100

Always verify dimensions and bore size before substituting part numbers across manufacturers.

Buying in bulk? Save on volume.

Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.

Frequently Asked Questions

What belts fit the QD48L100 pulley?

L (0.375 in trapezoidal) timing belts in 1 in width from any manufacturer. The pitch is standardized, so belt and pulley brands can be mixed.

Does the QD48L100 replace the Martin 48L100 SDS?

Yes. Published interchange data crosses the QD48L100 directly to the Martin 48L100 SDS, as well as TB Woods 48L100, Regal Rexnord 48L100SDS, Mitsuboshi QD48L100. Verify dimensions and bore before ordering.

Does the QD48L100 ship from Houston?

Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.

Need a quote on QD48L100?

Houston warehouse, same-day shipping on stock items.

Call (888) 203-2358

All third-party part numbers and trademarks referenced are the property of their respective owners. References are for compatibility identification only and do not imply affiliation or endorsement.
