QD52-14M-55 Powerhouse® HTD Timing Pulley, 52 Teeth, 14M Pitch


Price:
$ 218.72

Description

QD52-14M-55 Powerhouse® HTD Timing Pulley, 52 Teeth, 14M Pitch

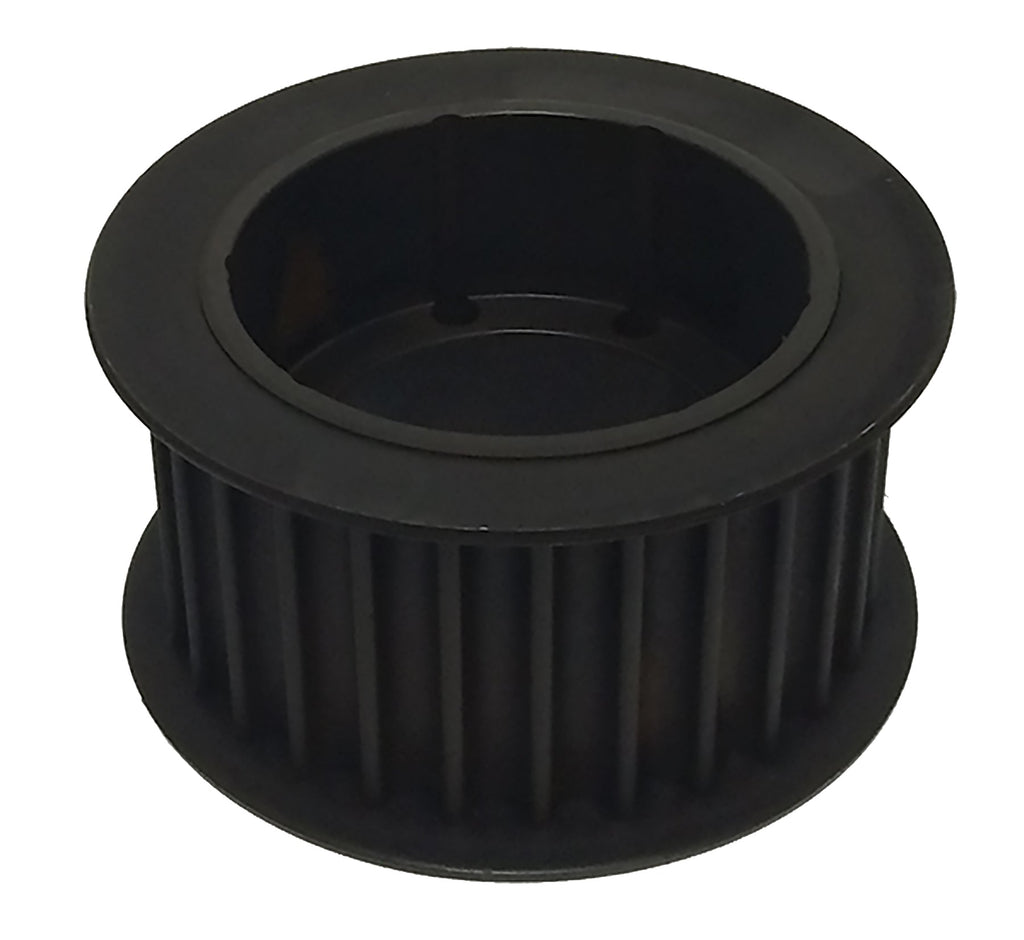

The QD52-14M-55 is a 52-tooth 14 mm HTD® compatible timing pulley. It mounts with an industry-standard bushing, sold separately, machined from cast iron with a black oxide finish, built for 55mm wide belts. Machined from solid stock, never sintered or powdered metal. Powerhouse® HTD pulleys fit drives using HTD® curvilinear belts of the same pitch and width.

Specifications

Type D1F pulley construction dimension diagram

Dimension key for this construction type. Values for this part number are in the table below.

Specification Value
Part Number QD52-14M-55
Teeth 52
Pitch 14 mm HTD® compatible
For Belt Width 55mm
Pitch Diameter 9.1232 in
Outside Diameter 9.0132 in
Flange Diameter 9.69 in
Bore Accepts E bushing (not included)
Face Width 2.75 in
Overall Length 2.75 in
Construction Quick Disconnect Hub
Flange Material Steel
Material Cast Iron (no sintered or powdered metal)
Finish Black Oxide
Weight 27 lb
Country of Origin China

Applications

  • HTD curvilinear belt drives on industrial equipment
  • Conveyors, packaging, and warehouse automation
  • Replacing worn pulleys on existing HTD drives

Belt Compatibility

The QD52-14M-55 runs 14 mm HTD® compatible belts in 55mm width. The pitch is standardized, so belt and pulley brands can be mixed.

Cross Reference

The QD52-14M-55 interchanges with these equivalent part numbers, per published manufacturer interchange data:

Manufacturer Equivalent Part Number
Dodge® P52-14M-55-E
Martin P5214M55-E
TB Woods® P5214M55
Regal Rexnord (Browning®) B5214M55E
Jason Industrial P52-14M-55-E
Masterdrive P52-14M-55-E
Ametric 14M52QD55.E
Grainger 809R86
Powerdrive QD52-14M-55
Continental (ContiTech) P52-14M-55-E

Always verify dimensions and bore size before substituting part numbers across manufacturers.

Buying in bulk? Save on volume.

Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.

Frequently Asked Questions

What belts fit the QD52-14M-55 pulley?

14 mm HTD® compatible timing belts in 55mm width from any manufacturer. The pitch is standardized, so belt and pulley brands can be mixed.

Does the QD52-14M-55 replace the Dodge P52-14M-55-E?

Yes. Published interchange data crosses the QD52-14M-55 directly to the Dodge P52-14M-55-E, as well as Martin P5214M55-E, TB Woods P5214M55, Regal Rexnord B5214M55E. Verify dimensions and bore before ordering.

Does the QD52-14M-55 ship from Houston?

Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.

Need a quote on QD52-14M-55?

Houston warehouse, same-day shipping on stock items.

Call (888) 203-2358

Powerhouse® is a registered trademark of its owner. HTD® is a registered trademark of Gates Corporation. All third-party part numbers and trademarks referenced are the property of their respective owners. References are for compatibility identification only and do not imply affiliation or endorsement.
