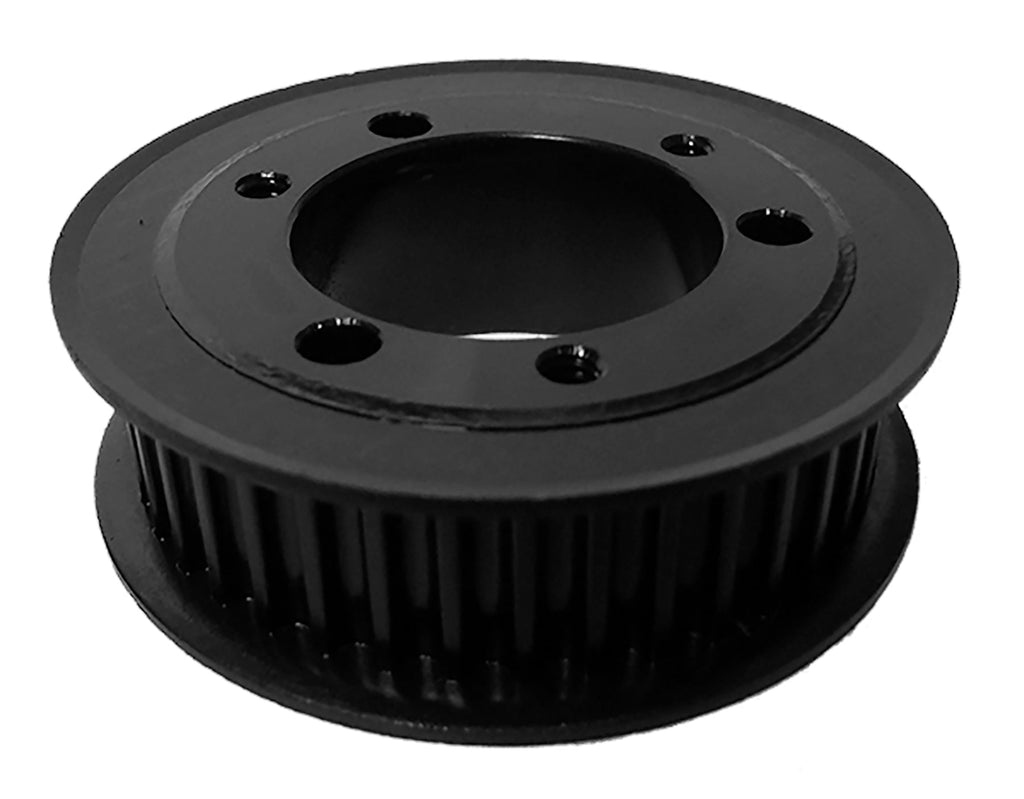

QD52-5M-15 Powerhouse® HTD Timing Pulley, 52 Teeth, 5M Pitch
The QD52-5M-15 is a 52-tooth 5 mm HTD® compatible timing pulley. It mounts with an industry-standard bushing, sold separately, machined from ductile iron with a black oxide finish, built for 15mm wide belts. Machined from solid stock, never sintered or powdered metal. Powerhouse® HTD pulleys fit drives using HTD® curvilinear belts of the same pitch and width.
$50 minimum order on drive components. Mix and match any pulleys, bushings, sheaves, sprockets, and accessories in your cart to reach the $50 minimum. Questions? Call (888) 203-2358.
Specifications

Dimension key for this construction type. Values for this part number are in the table below.
| Specification | Value |
|---|---|
| Part Number | QD52-5M-15 |
| Teeth | 52 |
| Pitch | 5 mm HTD® compatible |
| For Belt Width | 15mm |
| Pitch Diameter | 3.2583 in |
| Outside Diameter | 3.2133 in |
| Flange Diameter | 3.566 in |
| Bore | Accepts JA bushing (not included) |
| Face Width | 0.84 in |
| Overall Length | 0.84 in |
| Hub Diameter | 0.39 in |
| Construction | Quick Disconnect Hub |
| Material | Ductile Iron (no sintered or powdered metal) |
| Finish | Black Oxide |
| Weight | 1.15 lb |
| Country of Origin | United States. ISO 9001:2015 certified manufacturing. |
Applications
- HTD curvilinear belt drives on industrial equipment
- Conveyors, packaging, and warehouse automation
- Replacing worn pulleys on existing HTD drives
Belt Compatibility
The QD52-5M-15 runs 5 mm HTD® compatible belts in 15mm width. The pitch is standardized, so belt and pulley brands can be mixed.
Cross Reference
The QD52-5M-15 interchanges with these equivalent part numbers, per published manufacturer interchange data:
| Manufacturer | Equivalent Part Number |
|---|---|
| Dodge® | P52-5M-15-JA |
| Martin | P525M15-JA |
| TB Woods® | P525M15 |
| Jason Industrial | P525M15JA |
| Masterdrive | P52-5M-15-JA |
| Neuman | P52-5M-15-JA |
| Ametric | 5M52QD15.JA |
| Grainger | 809R87 |
| Powerdrive | QD52-5M-15 |
| Continental (ContiTech) | P52-5M-15-JA |
Always verify dimensions and bore size before substituting part numbers across manufacturers.
Buying in bulk? Save on volume.
Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.
Frequently Asked Questions
What belts fit the QD52-5M-15 pulley?
5 mm HTD® compatible timing belts in 15mm width from any manufacturer. The pitch is standardized, so belt and pulley brands can be mixed.
Does the QD52-5M-15 replace the Dodge P52-5M-15-JA?
Yes. Published interchange data crosses the QD52-5M-15 directly to the Dodge P52-5M-15-JA, as well as Martin P525M15-JA, TB Woods P525M15, Jason Industrial P525M15JA. Verify dimensions and bore before ordering.
Does the QD52-5M-15 ship from Houston?
Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.
