QD52-5M-25 Powerhouse® HTD Timing Pulley, 52 Teeth, 5M Pitch


Price:
$ 54.76

Description

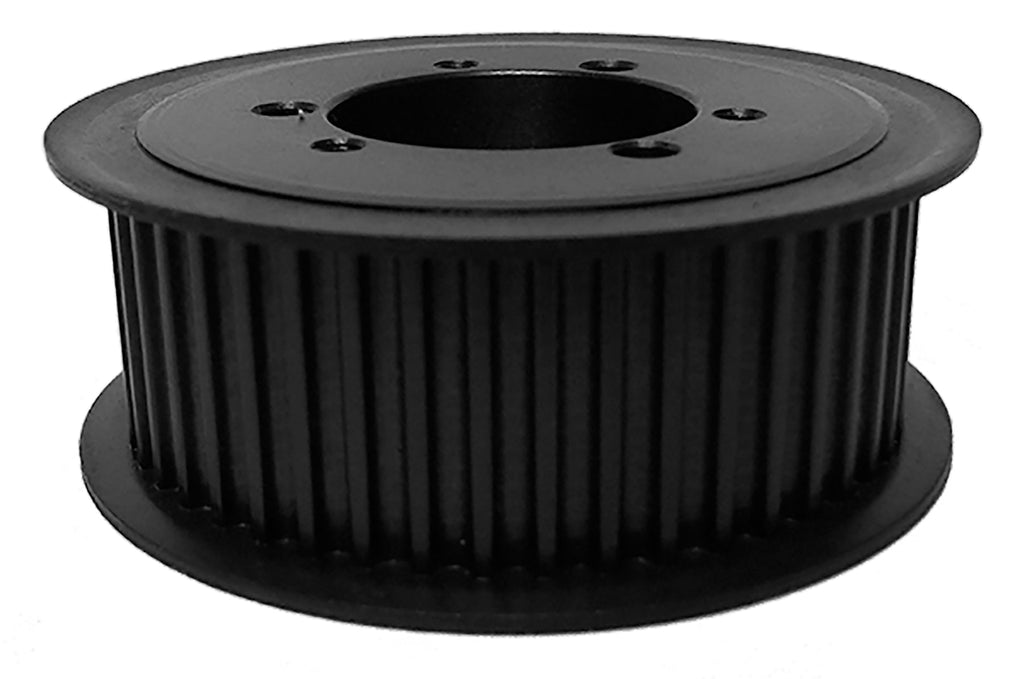

QD52-5M-25 Powerhouse® HTD Timing Pulley, 52 Teeth, 5M Pitch

The QD52-5M-25 is a 52-tooth 5 mm HTD® compatible timing pulley. It mounts with an industry-standard bushing, sold separately, machined from ductile iron with a black oxide finish, built for 25mm wide belts. Machined from solid stock, never sintered or powdered metal. Powerhouse® HTD pulleys fit drives using HTD® curvilinear belts of the same pitch and width.

Specifications

Type B1F pulley construction dimension diagram

Dimension key for this construction type. Values for this part number are in the table below.

Specification Value
Part Number QD52-5M-25
Teeth 52
Pitch 5 mm HTD® compatible
For Belt Width 25mm
Pitch Diameter 3.2583 in
Outside Diameter 3.2133 in
Flange Diameter 3.566 in
Bore Accepts JA bushing (not included)
Face Width 1.23 in
Overall Length 1.23 in
Construction Quick Disconnect Hub
Material Ductile Iron (no sintered or powdered metal)
Finish Black Oxide
Weight 1.4 lb
Country of Origin United States. ISO 9001:2015 certified manufacturing.

Applications

  • HTD curvilinear belt drives on industrial equipment
  • Conveyors, packaging, and warehouse automation
  • Replacing worn pulleys on existing HTD drives

Belt Compatibility

The QD52-5M-25 runs 5 mm HTD® compatible belts in 25mm width. The pitch is standardized, so belt and pulley brands can be mixed.

Cross Reference

The QD52-5M-25 interchanges with these equivalent part numbers, per published manufacturer interchange data:

Manufacturer Equivalent Part Number
Dodge® P52-5M-25-JA
Martin P525M25-JA
TB Woods® P525M25
Jason Industrial P525M25JA
Masterdrive P52-5M-25-JA
Neuman P52-5M-25-JA
Ametric 5M52QD25.JA
Grainger 809R88
Powerdrive QD52-5M-25
Continental (ContiTech) P52-5M-25-JA

Always verify dimensions and bore size before substituting part numbers across manufacturers.

Buying in bulk? Save on volume.

Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.

Frequently Asked Questions

What belts fit the QD52-5M-25 pulley?

5 mm HTD® compatible timing belts in 25mm width from any manufacturer. The pitch is standardized, so belt and pulley brands can be mixed.

Does the QD52-5M-25 replace the Dodge P52-5M-25-JA?

Yes. Published interchange data crosses the QD52-5M-25 directly to the Dodge P52-5M-25-JA, as well as Martin P525M25-JA, TB Woods P525M25, Jason Industrial P525M25JA. Verify dimensions and bore before ordering.

Does the QD52-5M-25 ship from Houston?

Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.

Need a quote on QD52-5M-25?

Houston warehouse, same-day shipping on stock items.

Call (888) 203-2358

Powerhouse® is a registered trademark of its owner. HTD® is a registered trademark of Gates Corporation. All third-party part numbers and trademarks referenced are the property of their respective owners. References are for compatibility identification only and do not imply affiliation or endorsement.
