QD56-14M-85 Powerhouse® HTD Timing Pulley, 56 Teeth, 14M Pitch


Price:
$ 339.20

Description

QD56-14M-85 Powerhouse® HTD Timing Pulley, 56 Teeth, 14M Pitch

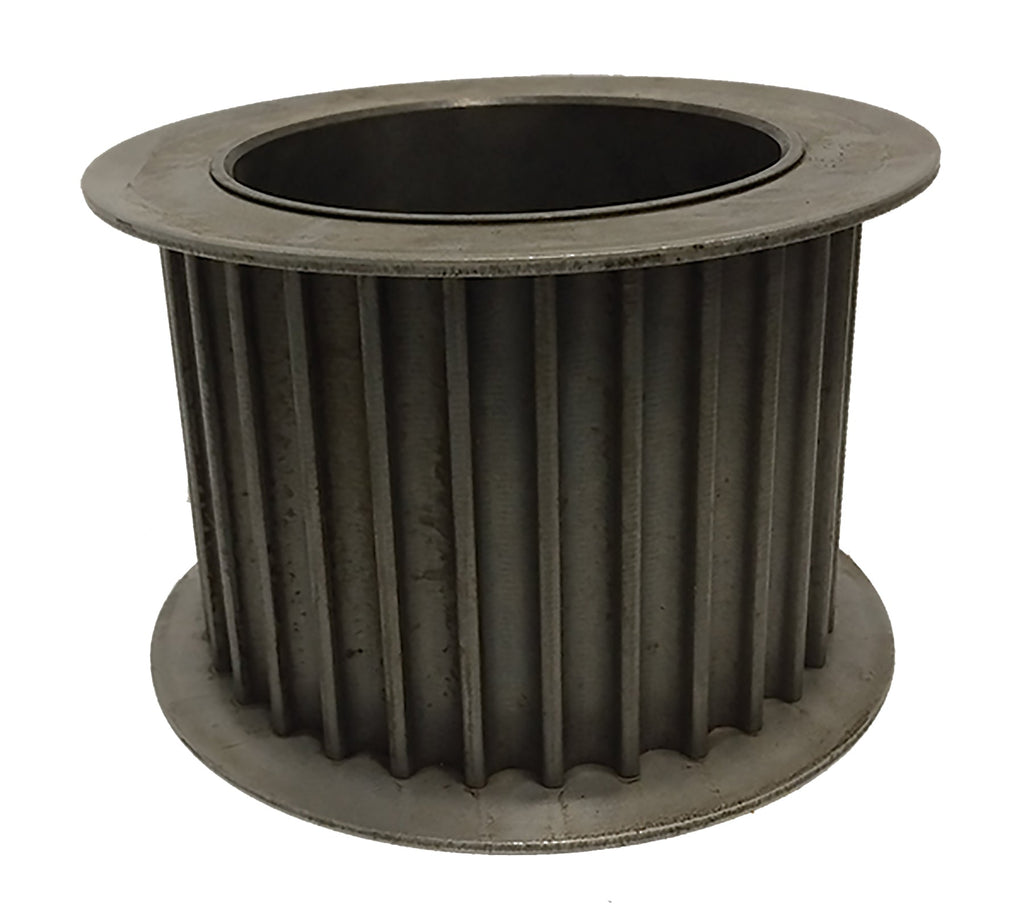

The QD56-14M-85 is a 56-tooth 14 mm HTD® compatible timing pulley. It mounts with an industry-standard bushing, sold separately, machined from cast iron with a black oxide finish, built for 85mm wide belts. Machined from solid stock, never sintered or powdered metal. Powerhouse® HTD pulleys fit drives using HTD® curvilinear belts of the same pitch and width.

Specifications

Type D1F pulley construction dimension diagram

Dimension key for this construction type. Values for this part number are in the table below.

Specification Value
Part Number QD56-14M-85
Teeth 56
Pitch 14 mm HTD® compatible
For Belt Width 85mm
Pitch Diameter 9.825 in
Outside Diameter 9.715 in
Flange Diameter 10.36 in
Bore Accepts F bushing (not included)
Face Width 4 in
Overall Length 4 in
Construction Quick Disconnect Hub
Flange Material Steel
Material Cast Iron (no sintered or powdered metal)
Finish Black Oxide
Weight 44.571 lb
Country of Origin China

Applications

  • HTD curvilinear belt drives on industrial equipment
  • Conveyors, packaging, and warehouse automation
  • Replacing worn pulleys on existing HTD drives

Belt Compatibility

The QD56-14M-85 runs 14 mm HTD® compatible belts in 85mm width. The pitch is standardized, so belt and pulley brands can be mixed.

Cross Reference

The QD56-14M-85 interchanges with these equivalent part numbers, per published manufacturer interchange data:

Manufacturer Equivalent Part Number
Dodge® P56-14M-85-F
Martin P5614M85-F
TB Woods® P5614M85
Regal Rexnord (Browning®) B5614M85F
Jason Industrial P56-14M-85-F
Masterdrive P56-14M-85-F
Ametric 14M56QD85.F
Powerdrive QD56-14M-85
Continental (ContiTech) P56-14M-85-F

Always verify dimensions and bore size before substituting part numbers across manufacturers.

Buying in bulk? Save on volume.

Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.

Frequently Asked Questions

What belts fit the QD56-14M-85 pulley?

14 mm HTD® compatible timing belts in 85mm width from any manufacturer. The pitch is standardized, so belt and pulley brands can be mixed.

Does the QD56-14M-85 replace the Dodge P56-14M-85-F?

Yes. Published interchange data crosses the QD56-14M-85 directly to the Dodge P56-14M-85-F, as well as Martin P5614M85-F, TB Woods P5614M85, Regal Rexnord B5614M85F. Verify dimensions and bore before ordering.

Does the QD56-14M-85 ship from Houston?

Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.

Need a quote on QD56-14M-85?

Houston warehouse, same-day shipping on stock items.

Call (888) 203-2358

Powerhouse® is a registered trademark of its owner. HTD® is a registered trademark of Gates Corporation. All third-party part numbers and trademarks referenced are the property of their respective owners. References are for compatibility identification only and do not imply affiliation or endorsement.
