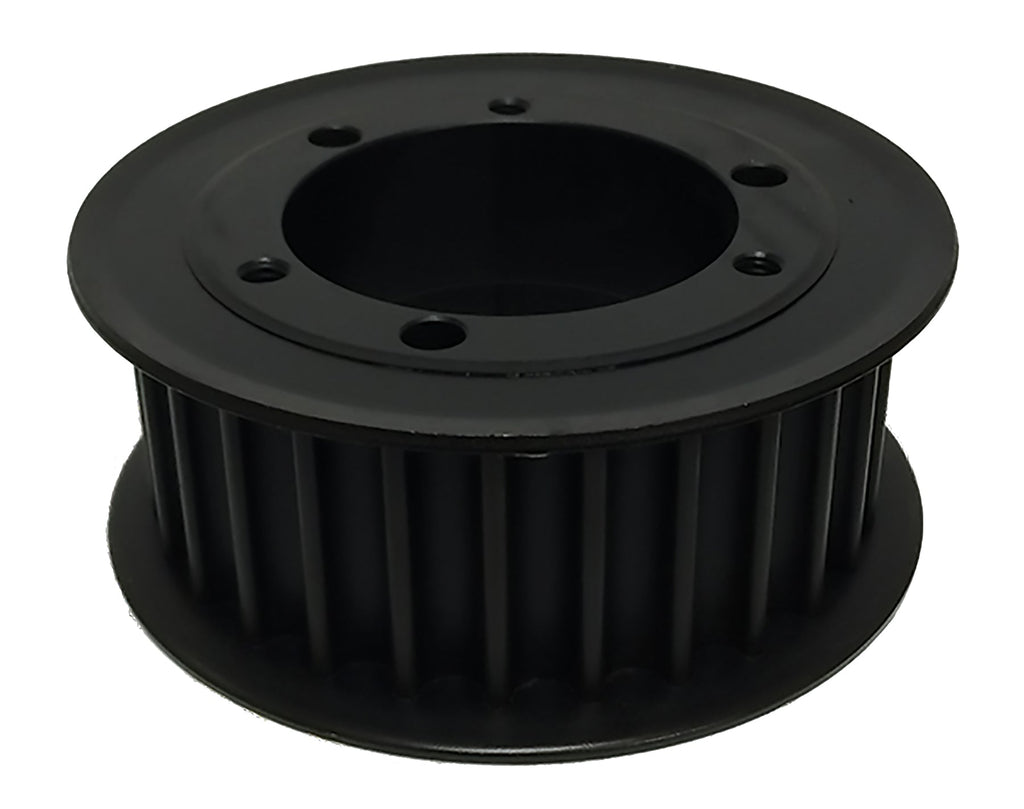

QD64-14M-40 Powerhouse® HTD Timing Pulley, 64 Teeth, 14M Pitch


Price:
$ 324.21

Description

QD64-14M-40 Powerhouse® HTD Timing Pulley, 64 Teeth, 14M Pitch

The QD64-14M-40 is a 64-tooth 14 mm HTD® compatible timing pulley. It mounts with an industry-standard bushing, sold separately, machined from cast iron with a black oxide finish, built for 4mm wide belts. Machined from solid stock, never sintered or powdered metal. Powerhouse® HTD pulleys fit drives using HTD® curvilinear belts of the same pitch and width.

Specifications

Type D2F pulley construction dimension diagram

Dimension key for this construction type. Values for this part number are in the table below.

Specification Value
Part Number QD64-14M-40
Teeth 64
Pitch 14 mm HTD® compatible
For Belt Width 4mm
Pitch Diameter 11.2286 in
Outside Diameter 11.1186 in
Flange Diameter 11.75 in
Bore Accepts E bushing (not included)
Face Width 2.125 in
Overall Length 2.125 in
Construction Quick Disconnect Hub
Flange Material Steel
Material Cast Iron (no sintered or powdered metal)
Finish Black Oxide
Weight 29 lb
Country of Origin China

Applications

  • HTD curvilinear belt drives on industrial equipment
  • Conveyors, packaging, and warehouse automation
  • Replacing worn pulleys on existing HTD drives

Belt Compatibility

The QD64-14M-40 runs 14 mm HTD® compatible belts in 4mm width. The pitch is standardized, so belt and pulley brands can be mixed.

Cross Reference

The QD64-14M-40 interchanges with these equivalent part numbers, per published manufacturer interchange data:

Manufacturer Equivalent Part Number
Dodge® P64-14M-40-E
Martin P6414M40-E
US Tsubaki PT64P14M40AF
TB Woods® P6414M40
Regal Rexnord (Browning®) B6414M40E
Mitsuboshi QD64-14M-40
Jason Industrial P64-14M-40-E
Masterdrive P64-14M-40-E
Ametric 14M64QD40.E
Grainger 809RA1

Always verify dimensions and bore size before substituting part numbers across manufacturers.

Buying in bulk? Save on volume.

Multi-unit and OEM quantities qualify for volume discounts. Call or email for a quantity quote.

Frequently Asked Questions

What belts fit the QD64-14M-40 pulley?

14 mm HTD® compatible timing belts in 4mm width from any manufacturer. The pitch is standardized, so belt and pulley brands can be mixed.

Does the QD64-14M-40 replace the Dodge P64-14M-40-E?

Yes. Published interchange data crosses the QD64-14M-40 directly to the Dodge P64-14M-40-E, as well as Martin P6414M40-E, US Tsubaki PT64P14M40AF, TB Woods P6414M40. Verify dimensions and bore before ordering.

Does the QD64-14M-40 ship from Houston?

Yes. Stock items ship same day from our Houston, Texas warehouse. Call (888) 203-2358 to confirm availability.

Need a quote on QD64-14M-40?

Houston warehouse, same-day shipping on stock items.

Call (888) 203-2358
